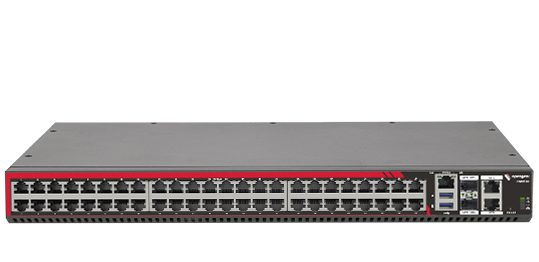

• Black and red opengear cm8148-10g-lsp 48-port serial console manager with usb-c and sleek metallic finish
1 1

OPENGEAR

OPENGEAR CM8148-10G-LSP | 48-Port Selectable Serial Console Manager, Dual 10GbE SFP+, TPM 2.0, 1 Yr Foundation Support

OPENGEAR CM8148-10G-LSP | 48-Port Selectable Serial Console Manager, Dual 10GbE SFP+, TPM 2.0, 1 Yr Foundation Support

CM8148-10G-LSP

Stock Status: Enquire

$0.00 AUD
$0.00 AUD
$0.00 AUD
Sale Stock Status: Enquire
Taxes included. Shipping calculated at checkout.

Description

The Opengear CM8148-10G-LSP is a high-density 1U Smart Out-of-Band™ console manager featuring 48 selectable RS-232 RJ-45 serial ports with software-selectable pinout, dual 10GbE SFP+ uplinks, an ARM 1.6GHz dual-core processor, 2GB DDR4, 32GB flash, and hardware TPM 2.0 for secure boot and data encryption. Designed for data centre and enterprise environments, it supports Docker and Python automation, REST API integration, passive cooling, dual AC power with auto failover, and is Lighthouse Service Portal Enabled for centralised at-scale management.

This listing includes 1 Year of Opengear Foundation Support (OG-FNTS-CM8100-1YR), sold together with the hardware as a mandatory bundle. Foundation Support delivers 8x5 regional live assistance across APAC, Americas, and EMEA via phone, email, and portal, with initial response times of up to 15 minutes via portal and 30 minutes via email. Critical (Priority 1) issues — including severe outages and DOA units — receive next-business-day RMA replacement in Australia (within 4 days internationally). Ongoing firmware and software updates are included throughout the support term, with a 95% SLA compliance target. Get it now at iptrading.com.au — authentic hardware, reliable service.

Features

- Smart Out-of-Band™ management delivers resilient remote access independent of production network state
- 48 selectable RS-232 serial ports with software-selectable pinout — no adapters needed for Cisco-style console ports
- Dual 10GbE SFP+ uplinks for direct integration with high-speed data centre networks
- Hardware TPM 2.0 provides enterprise-grade data encryption and secure boot
- Docker and Python scripting support enables in-band automation and custom workflow execution
- REST API integration for seamless compatibility with Ansible, Terraform, and other DevOps tools
- Dual AC power supplies with built-in auto failover for continuous high-availability operation
- Lighthouse Service Portal Enabled — manage hundreds of devices at scale via Opengear Lighthouse
- Auto-port discovery simplifies initial device configuration and reduces deployment time
- 2x USB 3.0 host ports for external storage or additional management connectivity
- Passive cooling design minimises power draw (<25W typical) and eliminates fan noise
- Provides out-of-band access to routers, switches, PDUs, firewalls, and all serial console devices
- Includes 1 Year Opengear Foundation Support (OG-FNTS-CM8100-1YR) — 8x5 regional live support, next-business-day RMA in Australia, and firmware updates included

Warranty

1 Year Opengear Foundation Support

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Part Number: CM8148-10G-LSP
- Serial Ports: 48 x selectable RS-232 RJ-45 (software-selectable pinout X1 or X2)
- Serial Port Speed: 50 to 230,400 bps
- Network Interfaces: 2x 10GbE SFP+ (NET1/NET2) + 2x 1GbE copper RJ-45 (NET3/NET4)
- Processor: ARM 1.6GHz dual-core CPU
- Memory: 2 GB DDR4 SDRAM
- Storage: 32 GB Flash
- Security: TPM 2.0 hardware module (data encryption and secure boot)
- USB: 2x USB 3.0 host ports
- Form Factor: 1U rack-mountable
- Dimensions: 1.8" H x 17.3" W x 10.5" D
- Weight: Approx. 8 lbs
- Power Supply: Dual AC, IEC C14 power cord, auto failover
- Input Voltage: 100–240 VAC, 50/60 Hz
- Power Draw: <25W typical
- Operating Temperature: 5°C to 50°C
- Relative Humidity: 5% to 90%
- Cooling: Passive
- MTBF: 150,000 hours
- Hardware Warranty: 4 years
- Compliance: TAA compliant
- Lighthouse Service Portal: Enabled (LSP suffix)
- Bundled Support: 1 Year Opengear Foundation Support (OG-FNTS-CM8100-1YR) — included in this listing

FAQs

Q: What does the 1 Year Foundation Support (OG-FNTS-CM8100-1YR) included in this listing cover?
A: Foundation Support provides 8x5 regional live technical assistance (8 AM–5 PM Mon–Fri) across APAC, Americas, and EMEA via phone, email, and portal. Initial response times are up to 15 minutes via portal and up to 30 minutes via email. Priority 1 (Critical) issues — including severe outages and DOA units — receive next-business-day advance RMA replacement in Australia (within 4 days internationally). Ongoing firmware and software updates are also included throughout the support term, with a 95% SLA compliance target.

Q: Can I extend Foundation Support beyond the first year?
A: Yes. Foundation Support is available in 1, 3, and 5-year terms, with coverage of up to 7 years maximum. Co-terming with Lighthouse subscriptions and hardware warranties is also available. Contact IP Trading for renewal and multi-year pricing options.

Q: What is the difference between the CM8148-10G-LSP and non-LSP variants?
A: The LSP suffix indicates that the unit is Lighthouse Service Portal Enabled, meaning it is licensed for centralised management at scale via Opengear's Lighthouse software. This enables multi-site, multi-device orchestration from a single management plane.

Q: Does the CM8148-10G-LSP support automation and third-party integration?
A: Yes. The CM8148-10G-LSP supports Docker container hosting, Python scripting, and REST API integration, enabling it to run custom automation workflows and integrate with orchestration tools such as Ansible, Terraform, and other DevOps platforms.

Q: Can I purchase this product in Australia through IP Trading?
A: Yes. IP Trading (iptrading.com.au) is an authorised Australian B2B IT hardware reseller. This listing ships within Australia and includes GST-applicable pricing. The hardware and Foundation Support are sold together as a single SKU for straightforward procurement.

Q: How does the dual 10GbE SFP+ uplink benefit out-of-band management?
A: The two 10GbE SFP+ ports (NET1/NET2) allow the CM8148-10G-LSP to connect directly to high-speed network infrastructure or dedicated out-of-band networks, ensuring fast, low-latency management access to all 48 serial-connected devices even when production networks are degraded or offline.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.
