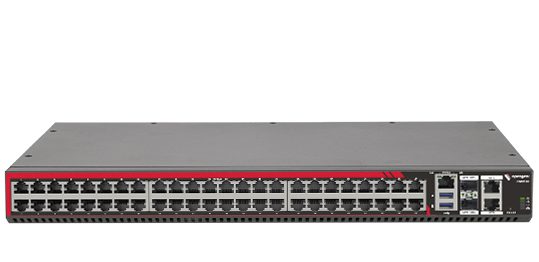

• Black and red openggear cm8148-10g-ddc-lsp 48-port console manager with usb-c and sleek metallic finish back view
1 1

OPENGEAR

OPENGEAR CM8148-10G-DDC-LSP | 48-Port Console Manager, 10GbE SFP+, Dual DC, Lighthouse Portal, 1 Yr Foundation Support

OPENGEAR CM8148-10G-DDC-LSP | 48-Port Console Manager, 10GbE SFP+, Dual DC, Lighthouse Portal, 1 Yr Foundation Support

CM8148-10G-DDC-LSP

Stock Status: Enquire

$0.00 AUD
$0.00 AUD
$0.00 AUD
Sale Stock Status: Enquire
Taxes included. Shipping calculated at checkout.

Description

The Opengear CM8148-10G-DDC-LSP is a high-density 1U rackmount Console Manager delivering Smart Out-of-Band management for up to 48 selectable RS-232 serial ports, backed by dual 10GbE SFP+ uplinks, ARM 1.6GHz dual-core processing, 2GB DDR4 RAM, 32GB flash storage, TPM 2.0 security, and Docker containerisation support. Powered by a redundant dual DC supply with automatic failover and fully enabled for Opengear's Lighthouse Service Portal, this unit is purpose-built for large-scale, resilient infrastructure management in data centres and enterprise environments. This listing includes 1 Year of Opengear Foundation Support (OG-FNTS-CM8100-1YR) bundled with the hardware.

This listing includes 1 Year of Opengear Foundation Support (OG-FNTS-CM8100-1YR), sold together with the hardware as a mandatory bundle. Foundation Support delivers 8x5 regional live assistance across APAC, Americas, and EMEA via phone, email, and portal, with initial response times of up to 15 minutes via portal and 30 minutes via email. Critical (Priority 1) issues — including severe outages and DOA units — receive next-business-day RMA replacement in Australia (within 4 days internationally). Ongoing firmware and software updates are included throughout the support term, with a 95% SLA compliance target. Upgrade your network with gear from iptrading.com.au — Australia's IT hardware specialists.

Features

- Smart Out-of-Band (OOB) management for up to 48 serial devices — maintain access to critical infrastructure even during primary network failure
- 48 selectable RS-232 RJ-45 serial ports with software-selectable pinout (X1 or X2) — eliminates the need for physical adapters
- Dual 10GbE SFP+ uplinks for direct, high-speed integration into modern data centre fabric
- Dual DC power supply with automatic failover — eliminates single points of failure in power delivery
- TPM 2.0 hardware security module for secure boot and cryptographic key protection
- Docker containerisation support — run automation agents, scripts, and third-party tools directly on the device
- Lighthouse Service Portal enabled — centralised, scalable management across distributed sites
- Python scripting and REST API support for seamless integration with network automation platforms
- Authentication via Active Directory, LDAP, RADIUS, and additional identity providers
- Passive (fanless) cooling — energy efficient and suited to noise-sensitive or high-reliability environments
- 4-year hardware warranty included for long-term investment protection
- Includes 1 Year of Opengear Foundation Support (OG-FNTS-CM8100-1YR) — 8x5 regional technical assistance, next-business-day RMA in Australia, and ongoing firmware updates

Warranty

1 Year Opengear Foundation Support

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- SKU: CM8148-10G-DDC-LSP
- Form Factor: 1U Rackmount
- Serial Ports: 48 x selectable RS-232 RJ-45 (software selectable pinout — X1 or X2, no adapters required)
- Network Uplinks: 2x 10GbE SFP+ (NET1, NET2) + 2x 1GbE RJ-45 (NET3, NET4)
- CPU: ARM 1.6GHz dual-core
- RAM: 2GB DDR4 SDRAM
- Storage: 32GB flash
- Security: TPM 2.0
- Containerisation: Docker support
- Power: Dual DC (DDC) with screw-in terminals and automatic failover
- Typical Power Draw: <25W
- USB: 2x USB 3.0 host ports
- Cooling: Passive (fanless)
- Operating Temperature: 5°C to 50°C
- Relative Humidity: 5% to 90% (non-condensing)
- MTBF: 150,000 hours
- Management: Lighthouse Service Portal Enabled (LSP)
- Hardware Warranty: 4 years
- Compliance: TAA compliant
- Bundled Support: 1 Year Opengear Foundation Support (OG-FNTS-CM8100-1YR) — 8x5 regional, next-business-day RMA (AU), firmware updates included

FAQs

Q: How many serial ports does the CM8148-10G-DDC-LSP support?
A: The CM8148-10G-DDC-LSP provides 48 selectable RS-232 RJ-45 serial ports with software-selectable pinout (X1 or X2). No physical adapters are required, making cabling simpler and reducing deployment time in high-density environments.

Q: What network connectivity options does this console manager offer?
A: The unit includes two 10GbE SFP+ ports (NET1, NET2) for high-speed network uplinks, plus two 1GbE RJ-45 ports (NET3, NET4), giving you flexible primary and out-of-band network connectivity options in a single 1U appliance.

Q: What is Lighthouse Service Portal (LSP) and why does it matter?
A: Lighthouse is Opengear's centralised management platform for scaling console server deployments across multiple sites. LSP-enabled units like the CM8148-10G-DDC-LSP can be enrolled and managed from a single Lighthouse instance, enabling zero-touch provisioning, policy-based access, and consolidated alerting across your entire Out-of-Band infrastructure.

Q: What does the included Foundation Support (OG-FNTS-CM8100-1YR) cover?
A: Foundation Support provides 8x5 regional technical assistance (8 AM–5 PM Mon–Fri) across APAC, Americas, and EMEA via phone, email, and portal. Initial response times are up to 15 minutes via portal and up to 30 minutes via email. Priority 1 (Critical) issues — such as severe outages or DOA units — receive next-business-day RMA replacement in Australia (within 4 days internationally). Firmware and software updates are included throughout the support term, with a 95% SLA compliance target.

Q: Can I extend Foundation Support beyond the included 1 year?
A: Yes. Foundation Support is available in 1, 3, and 5-year terms, with a maximum of 7 years total coverage. Co-terming with Lighthouse subscriptions and hardware warranties is also supported, allowing you to align renewal dates across your Opengear estate. Contact iptrading.com.au to discuss extended support options.

Q: Can I purchase this product in Australia from IP Trading?
A: Yes. iptrading.com.au is an Australian B2B IT hardware specialist stocking Opengear products including the CM8148-10G-DDC-LSP. We supply businesses, government agencies, and IT teams across Australia with competitive pricing, expert pre-sales advice, and local support. Contact our team to request a quote or place an order.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.
