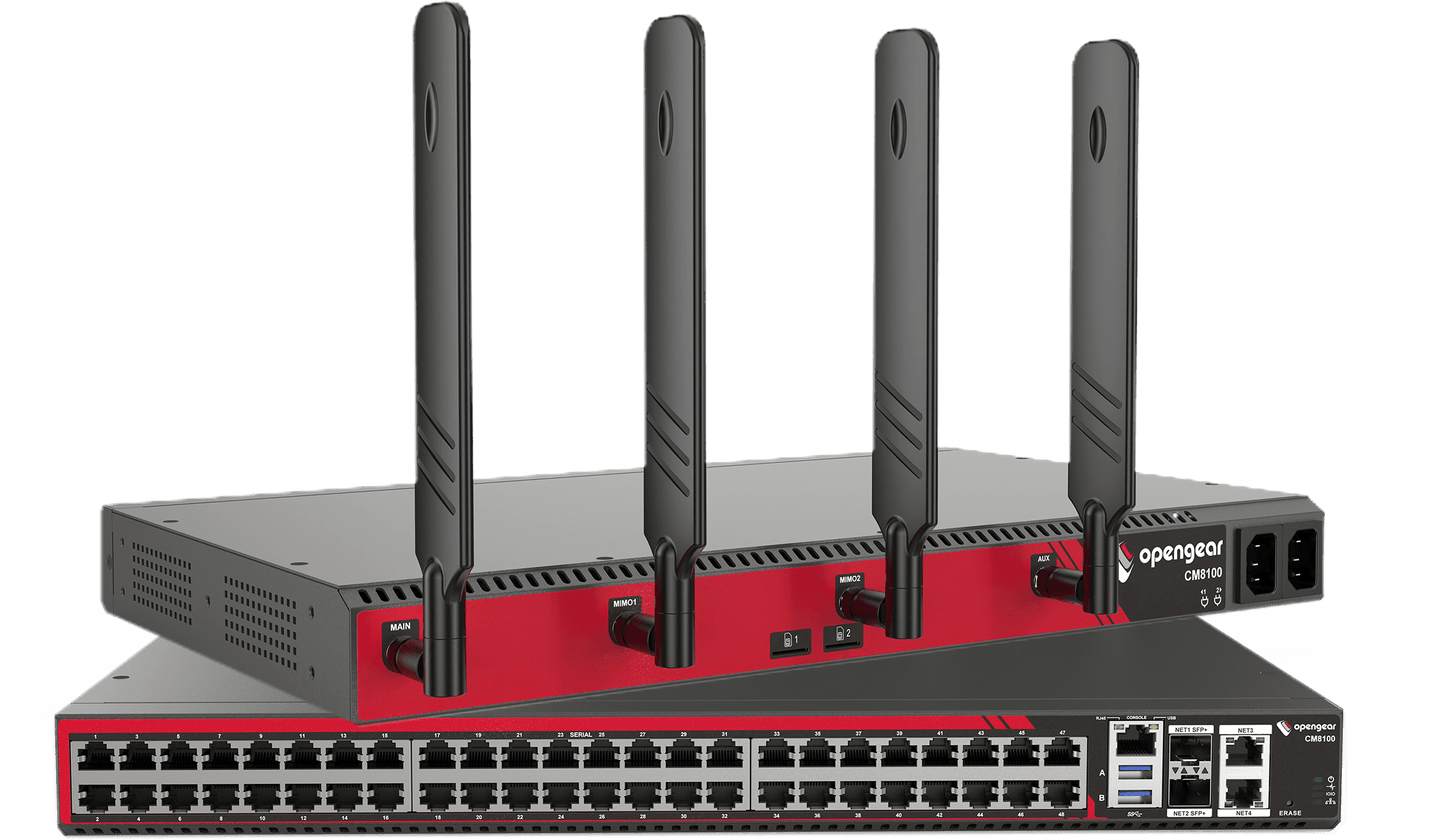

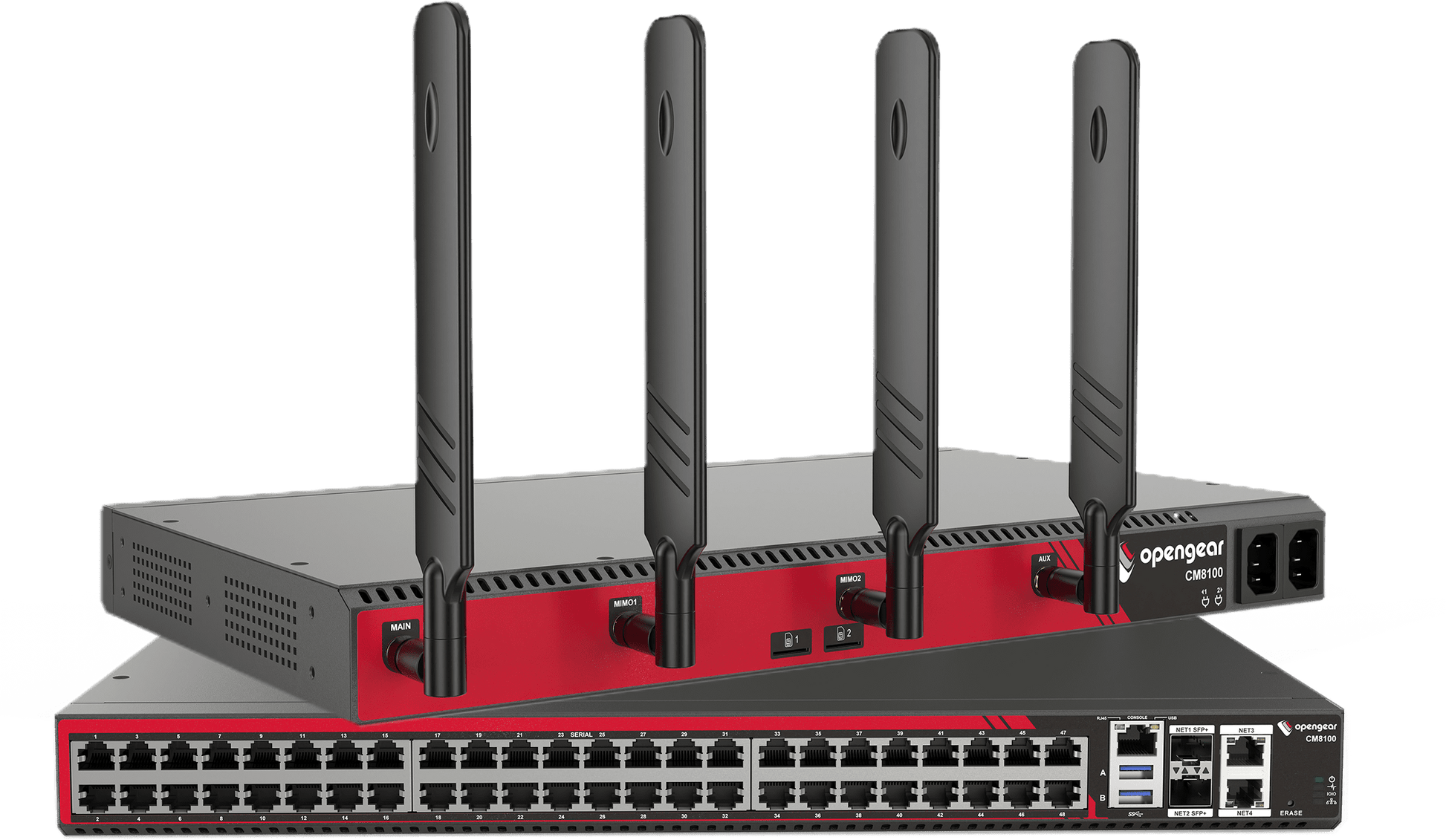

• Black and red opengear cmh100 network switch with four vertical antennas in a 48-port console manager with dual 10gbe sfp+
1 1

OPENGEAR

OPENGEAR CM8148-10G-C-LSP | 48-Port Console Manager, Dual 10GbE SFP+, 5G Modem, TPM 2.0, 1 Yr Foundation Support

OPENGEAR CM8148-10G-C-LSP | 48-Port Console Manager, Dual 10GbE SFP+, 5G Modem, TPM 2.0, 1 Yr Foundation Support

CM8148-10G-C-LSP

Stock Status: Enquire

$0.00 AUD
$0.00 AUD
$0.00 AUD
Sale Stock Status: Enquire
Taxes included. Shipping calculated at checkout.

Description

The Opengear CM8148-10G-C-LSP is a high-density 1U Console Manager delivering Smart Out-of-Band™ management for data centres and enterprise networks. It features 48 selectable RS-232 serial ports, dual 10GbE SFP+ uplinks, dual 1GbE copper ports, a built-in 5G cellular modem for failover connectivity, TPM 2.0 hardware security, Docker containerisation support, and is Lighthouse Service Portal (LSP) Enabled — all powered by an ARM 1.6GHz dual-core processor with 2GB RAM and 32GB flash storage. Dual AC power supplies with auto failover and passive cooling ensure reliable, energy-efficient operation.

This listing includes 1 Year of Opengear Foundation Support (OG-FNTS-CM8100-1YR), sold together with the hardware as a mandatory bundle. Foundation Support delivers 8x5 regional live assistance across APAC, Americas, and EMEA via phone, email, and portal, with initial response times of up to 15 minutes via portal and 30 minutes via email. Critical (Priority 1) issues — including severe outages and DOA units — receive next-business-day RMA replacement in Australia (within 4 days internationally). Ongoing firmware and software updates are included throughout the support term, with a 95% SLA compliance target. Need it fast? iptrading.com.au delivers across Australia — shop now.

Features

- 48 selectable RS-232 serial ports for direct console access to routers, switches, firewalls, PDUs, and other serial devices
- Dual 10GbE SFP+ uplinks deliver high-speed, resilient network connectivity for demanding data centre environments
- Built-in 5G cellular modem provides out-of-band failover with enhanced bandwidth and lower latency compared to LTE
- TPM 2.0 hardware security module enables data encryption and secure boot for zero-trust deployments
- Docker containerisation support allows automation workloads and third-party applications to run directly on the appliance
- REST API and Python scripting support enable seamless integration with NetOps and automation toolchains
- Lighthouse Service Portal (LSP) Enabled for centralised, at-scale management across distributed sites
- Dual AC power supplies with auto failover and active 12V power draw monitoring for maximum power resilience
- Passive cooling design reduces energy consumption and lowers total cost of ownership
- 4-year limited hardware warranty provides long-term investment protection
- Includes 1 Year of Opengear Foundation Support (OG-FNTS-CM8100-1YR): 8x5 regional live assistance, next-business-day RMA in Australia, firmware updates, and 95% SLA compliance

Warranty

1 Year Opengear Foundation Support

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Serial Ports: 48 x selectable RS-232 (RJ-45, software-selectable pinout)
- Network Uplinks: 2 x 10GbE SFP+ (NET1, NET2)
- Network Ports: 2 x 1GbE copper RJ-45 (NET3, NET4)
- Processor: ARM 1.6GHz dual-core
- Memory: 2GB DDR4 SDRAM
- Storage: 32GB flash
- Security: TPM 2.0 hardware security module
- Cellular Modem: Built-in 5G (globally certified)
- USB: 2 x USB 3.0 host ports
- Power: Dual AC power supplies with auto failover (C14 power cord)
- Power Draw: <25W typical
- AC Input: 100–240 VAC, 50/60 Hz
- Operating Temperature: 5–50°C
- Relative Humidity: 5–90% (non-condensing)
- Cooling: Passive
- Form Factor: 1U rack-mountable
- Dimensions: 1.8" H x 17.3" W x 10.5" D
- Weight: ~8 lbs
- MTBF: 150,000 hours
- Compliance: RoHS, TAA compliant
- Management: Lighthouse Service Portal (LSP) Enabled
- Hardware Warranty: 4-year limited
- Bundled Support: 1 Year Opengear Foundation Support (OG-FNTS-CM8100-1YR)

FAQs

Q: What does the included Opengear Foundation Support cover?
A: Foundation Support (OG-FNTS-CM8100-1YR) provides 8x5 regional technical assistance via phone, email, and portal across APAC, Americas, and EMEA. Initial response times are up to 15 minutes via portal and 30 minutes via email. Priority 1 (Critical) issues — such as severe outages or DOA units — receive next-business-day RMA replacement in Australia (within 4 days internationally). Firmware and software updates are included throughout the support term, with a 95% SLA compliance target.

Q: Is Foundation Support already included in the price, or is it a separate purchase?
A: Foundation Support is included in this listing. The CM8148-10G-C-LSP and 1 Year of Foundation Support (OG-FNTS-CM8100-1YR) are sold together as a single bundled SKU — there is no need to add support separately.

Q: Can I extend Foundation Support beyond 1 year?
A: Yes. Foundation Support is available in 1, 3, and 5-year terms, with up to 7 years of maximum total coverage. Co-terming with Lighthouse subscriptions and hardware warranties is also available. Contact IP Trading for renewal and multi-year pricing.

Q: What is the CM8148-10G-C-LSP used for?
A: The CM8148-10G-C-LSP is a high-density 1U Console Manager designed for Smart Out-of-Band™ management of data centre and enterprise infrastructure. Its 48 serial ports provide direct console access to routers, switches, firewalls, PDUs, and other serial devices, even when the primary network is unavailable — with 5G cellular failover providing an additional out-of-band path.

Q: What out-of-band connectivity options does this unit support?
A: The CM8148-10G-C-LSP includes dual 10GbE SFP+ uplinks, dual 1GbE copper ports, and a built-in 5G cellular modem for failover connectivity. This combination ensures multiple independent paths for out-of-band management access during network outages or maintenance windows.

Q: Can I purchase the CM8148-10G-C-LSP in Australia through IP Trading?
A: Yes. IP Trading (iptrading.com.au) is an authorised Australian reseller of Opengear products and delivers across Australia. The CM8148-10G-C-LSP is available as a hardware + Foundation Support bundle. Contact the team for pricing, stock availability, or bulk order enquiries.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.
