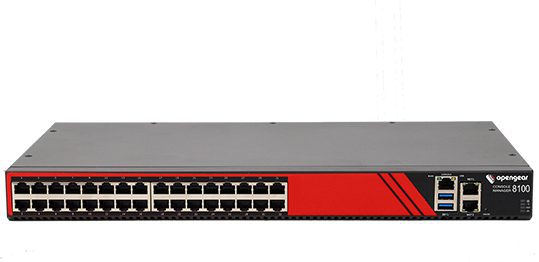

• Red and black opengear s100 network switch back view showing multiple ethernet ports in cm8132 10g ddc lsp console manager
1 1

OPENGEAR

OPENGEAR CM8132-10G-DDC-LSP | CM8100 32-Port Console Manager, Dual 10GbE SFP+, Dual DC, LSP, 1 Yr Foundation Support

OPENGEAR CM8132-10G-DDC-LSP | CM8100 32-Port Console Manager, Dual 10GbE SFP+, Dual DC, LSP, 1 Yr Foundation Support

CM8132-10G-DDC-LSP

Stock Status: Enquire

$7,883.00 AUD
$7,883.00 AUD
$7,883.00 AUD
Sale Stock Status: Enquire
Taxes included. Shipping calculated at checkout.

Description

The Opengear CM8132-10G-DDC-LSP is a high-density 1RU rackmount console manager delivering 32 selectable RJ45 RS-232 serial ports, dual 10GbE SFP+ uplinks, and dual DC power with automatic failover — purpose-built for enterprise and hyperscale out-of-band management. Powered by an ARM 1.6GHz dual-core processor with 2GB RAM and 32GB flash storage, it features TPM 2.0 hardware security, Docker and Python automation support, REST API integration, and Lighthouse Service Portal (LSP) zero-touch provisioning.

This listing includes 1 Year of Opengear Foundation Support (OG-FNTS-CM8100-1YR), sold together with the hardware as a mandatory bundle. Foundation Support delivers 8x5 regional live assistance across APAC, Americas, and EMEA via phone, email, and portal, with initial response times of up to 15 minutes via portal and 30 minutes via email. Critical (Priority 1) issues — including severe outages and DOA units — receive next-business-day RMA replacement in Australia (within 4 days internationally). Ongoing firmware and software updates are included throughout the support term, with a 95% SLA compliance target. Upgrade your network with gear from iptrading.com.au — Australia's IT hardware specialists.

Features

- 32 selectable RJ45 RS-232 serial ports with software-configurable X1 or X2 pinout — no adapters required
- Dual 10GbE SFP+ uplinks for high-speed data centre integration and network redundancy
- Smart Out-of-Band (OOB) management for routers, switches, PDUs, firewalls, and virtualised network functions
- TPM 2.0 hardware security module for trusted boot and data encryption
- Docker and Python scripting support with REST API for full data centre automation integration
- Lighthouse Service Portal (LSP) enabled — zero-touch provisioning and automatic Lighthouse enrolment
- Dual DC power supply with screw-in terminals and built-in auto failover for high-availability deployments
- IPv6 support, dual Ethernet aggregation, and automatic network failover
- Auto-port discovery simplifies serial port configuration and device labelling at scale
- TAA-compliant with a 5-year standard hardware warranty (extendable to 7 years)
- 1 Year Opengear Foundation Support included — 8x5 APAC/Americas/EMEA coverage, next-business-day Australian RMA, firmware updates, and 95% SLA compliance

Warranty

1 Year Opengear Foundation Support

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Form Factor: 1RU Rackmount
- Serial Ports: 32 x RJ45 RS-232 selectable pinout (X1 or X2), 50–230,400 bps
- Network Uplinks: 2x 10GbE SFP+ (NET1, NET2) + 2x 1GbE RJ45 (NET3, NET4)
- CPU: ARM 1.6GHz dual-core
- Memory: 2GB RAM
- Storage: 32GB Flash
- Security: TPM 2.0 hardware security module
- USB: 2x USB 3.0 host ports
- Console Port: 1x RJ45 RS-232 (Cisco rolled X1 pinout, 9600 baud)
- Power: Dual DC with screw-in terminals (DDC), auto failover
- Power Draw: <30W typical
- Containerisation: Docker support
- Management: Lighthouse Service Portal (LSP) zero-touch provisioning enabled
- Compliance: TAA-compliant
- Hardware Warranty: 5 years standard (extendable to 7 years)
- Bundled Support: 1 Year Opengear Foundation Support (OG-FNTS-CM8100-1YR)

FAQs

Q: What does the 1 Year Opengear Foundation Support (OG-FNTS-CM8100-1YR) include?
A: Foundation Support provides 8x5 regional live technical assistance across APAC, Americas, and EMEA via phone, email, and portal. Initial response times are up to 15 minutes via portal and up to 30 minutes via email. Priority 1 (Critical) issues — such as severe outages or DOA units — qualify for next-business-day RMA replacement in Australia (within 4 days internationally). Ongoing firmware and software updates are also included throughout the support term, with a 95% SLA compliance target.

Q: Is Foundation Support really bundled with the hardware, or is it a separate purchase?
A: Foundation Support is included in this listing as a bundled SKU — you purchase the CM8132-10G-DDC-LSP hardware and 1 Year of Foundation Support (OG-FNTS-CM8100-1YR) together as a single unit. No separate support purchase is needed.

Q: Can I extend Foundation Support beyond 1 year?
A: Yes. Foundation Support is available in 1, 3, and 5-year terms, with maximum coverage of up to 7 years. Co-terming with Lighthouse subscriptions and hardware warranties is also available. Contact IP Trading to discuss multi-year support options.

Q: What are the 32 serial ports used for, and can I change the pinout?
A: The 32 RJ45 RS-232 ports provide out-of-band console access to routers, switches, firewalls, PDUs, and other serial-enabled devices. Each port supports selectable X1 or X2 pinout in software — no physical serial adapters or rollover cables are required.

Q: Why does the CM8132-10G-DDC-LSP have dual 10GbE SFP+ uplinks?
A: The dual 10GbE SFP+ uplinks allow direct connection to high-speed core or spine switches in data centre environments, supporting link aggregation and network redundancy. This ensures the out-of-band management plane stays reachable even during primary network disruptions.

Q: Can I buy the CM8132-10G-DDC-LSP in Australia, and does IP Trading provide local support?
A: Yes. IP Trading (iptrading.com.au) is an Australian B2B IT hardware specialist supplying Opengear products locally. Foundation Support includes APAC regional coverage, meaning Australian customers benefit from local business-hours assistance and next-business-day RMA replacement for critical issues.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
