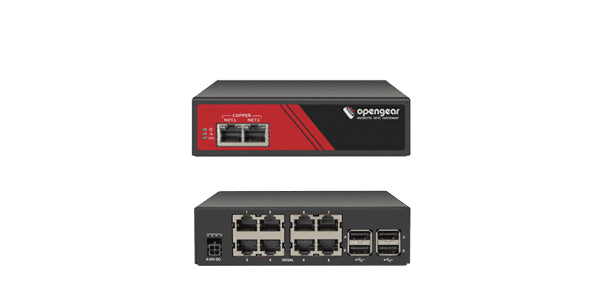

• Black and red Opengear ACM7008-2-GLB 8-port serial console server showing multiple Ethernet ports and USB connectors back view
1 1

OPENGEAR

OPENGEAR ACM7008-2-GLB | 8-Port Serial Console Server, Dual GbE, 4 USB, Global PSU, 1 Yr Foundation Support

OPENGEAR ACM7008-2-GLB | 8-Port Serial Console Server, Dual GbE, 4 USB, Global PSU, 1 Yr Foundation Support

ACM7008-2-GLB

Stock Status: Enquire

$1,833.69 AUD
$1,833.69 AUD
$1,833.69 AUD
Sale Stock Status: Enquire
Taxes included. Shipping calculated at checkout.

Description

The Opengear ACM7008-2-GLB is a compact Smart Out-of-Band (OOB) management appliance from the ACM7000 Resilience Gateway series, purpose-built for secure remote access to critical IT infrastructure at edge, branch, and distributed enterprise locations. It delivers 8 x RJ45 RS-232 serial console ports (Cisco Straight pinout), 4 x USB console ports, 2 x Gigabit Ethernet ports, 2 x TTL Digital I/O ports, and 2 x High Voltage Digital Outputs — all in a small form-factor chassis that ships with a 12V Global Power Supply. FIPS 140-2 validated cryptography, NERC CIP-aligned security, automatic network failover, and centralised management via Opengear Lighthouse make it ideal for retail, banking, ATM, and regional office deployments.

This listing includes 1 Year of Opengear Foundation Support (OG-FNTS-ACM7000-1YR), sold together with the hardware as a mandatory bundle. Foundation Support delivers 8x5 regional live assistance across APAC, Americas, and EMEA via phone, email, and portal, with initial response times of up to 15 minutes via portal and 30 minutes via email. Critical (Priority 1) issues — including severe outages and DOA units — receive next-business-day RMA replacement in Australia (within 4 days internationally). Ongoing firmware and software updates are included throughout the support term, with a 95% SLA compliance target. In stock and ready to ship from iptrading.com.au — order now for fast dispatch.

Features

- 8 x RJ45 RS-232 serial console ports (Cisco Straight) plus 4 x USB console ports for broad device compatibility
- Dual GbE Ethernet with automatic network failover and redundancy for continuous OOB access
- Smart Out-of-Band management enables secure remote access even during primary network outages
- FIPS 140-2 validated cryptographic module and NERC CIP-aligned security for compliance-sensitive environments
- TTL Digital I/O and High Voltage Digital Outputs support dry contact sensors, relay switching, and alarm triggers
- Compatible with Opengear EMD5000 environmental monitoring device (smoke, water, vibration sensors)
- Centralised management via Opengear Lighthouse — part of the Opengear Network Resilience Platform
- Ships with 12V Global Power Supply (IEC C13/C14) — ready for Australian and international deployment
- TAA compliant; internal temperature sensor included
- 5-year standard hardware warranty (extendable to 7 years)
- Foundation Support included: 8x5 regional assistance, next-business-day RMA in Australia, firmware updates, and 95% SLA compliance

Warranty

1 Year Opengear Foundation Support

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

- Serial Console Ports: 8 x RJ45 RS-232 – Cisco Straight pinout
- USB Console Ports: 4 x USB
- Network Ports: 2 x Gigabit Ethernet (GbE)
- Digital I/O: 2 x TTL level DIO ports – 5V DC max @ 20mA (dry contact sensors)
- Digital Outputs: 2 x High Voltage Digital Outputs (HVDO) – 5–30V DC @ 100mA (relay/alarm capable)
- Power Input: 110–240V AC (IEC C13/C14) via included 12V Global Power Supply
- DC Input: 12V DC
- Internal Temperature Sensor: Yes
- Form Factor: Small desktop / rack-mountable chassis
- Cellular Modem: None (non-LTE model)
- Security: FIPS 140-2 validated cryptographic module; NERC CIP-aligned
- Compliance: TAA compliant
- Hardware Warranty: 5 years standard (extendable to 7 years)
- Bundled Support: 1 Year Opengear Foundation Support (OG-FNTS-ACM7000-1YR)

FAQs

Q: What is included in the 1 Year Foundation Support bundled with this SKU?
A: Foundation Support (OG-FNTS-ACM7000-1YR) provides 8x5 regional technical assistance across APAC, Americas, and EMEA via phone, email, and portal. Initial portal response is up to 15 minutes; email up to 30 minutes. Priority 1 (Critical) issues — including DOA units and severe outages — receive next-business-day RMA replacement in Australia (within 4 days internationally). Firmware and software updates are included throughout the support term, with a 95% SLA compliance target.

Q: Can the Foundation Support term be extended beyond one year?
A: Yes. Opengear Foundation Support is available in 1, 3, and 5-year terms, up to a maximum of 7 years of total coverage. Co-terming with Lighthouse subscriptions and hardware warranties is also supported. Contact IP Trading for multi-year pricing.

Q: What is the hardware warranty on the ACM7008-2-GLB?
A: The ACM7008-2-GLB carries a 5-year standard hardware warranty from Opengear, with an option to extend coverage up to 7 years.

Q: Does the ACM7008-2-GLB include a cellular modem for failover connectivity?
A: No. The ACM7008-2-GLB is the non-LTE variant and does not include an embedded cellular modem. Failover is supported across the dual GbE Ethernet ports. If cellular OOB is required, consider an ACM7000 model with an integrated LTE modem.

Q: Can I purchase the ACM7008-2-GLB in Australia, and will it ship quickly?
A: Yes. IP Trading (iptrading.com.au) is an Australian B2B IT hardware reseller with stock on hand. The ACM7008-2-GLB bundle is in stock and ready to ship for fast dispatch to customers across Australia.

Q: What management software does the ACM7008-2-GLB work with?
A: The ACM7008-2-GLB integrates with Opengear Lighthouse, a centralised management platform that provides single-pane-of-glass visibility and control across multiple Opengear appliances. It also supports an easy browser-based local UI for standalone management.
