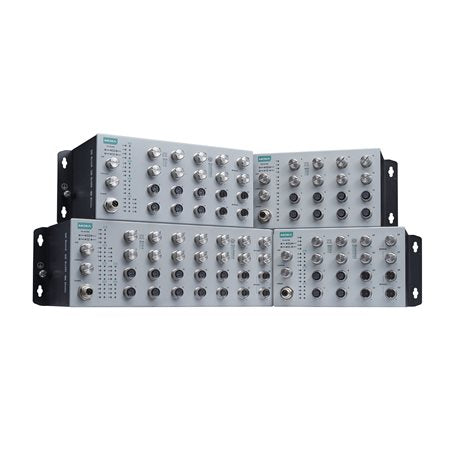

Moxa TN-4528B-20P-4GP-4GBP-CT-T | EN 50155 28-Port L2 Ethernet Switch, 20 FE PoE, 4 Gigabit Bypass, 4 Gigabit PoE, 150W PoE, 24-110VDC, -40-70°C, IP42

Moxa TN-4528B-20P-4GP-4GBP-CT-T | EN 50155 28-Port L2 Ethernet Switch, 20 FE PoE, 4 Gigabit Bypass, 4 Gigabit PoE, 150W PoE, 24-110VDC, -40-70°C, IP42

SKU:TN-4528B-20P-4GP-4GBP-CT-T

Stock Status: Enquire

Regular price $0.00 AUD
Regular price
$0.00 AUD
$0.00 AUD
Regular price
Sale Stock Status: Enquire
Taxes included. Shipping calculated at checkout.

Description

Moxa TN-4528B-20P-4GP-4GBP-CT-T: 28-port EN 50155 L2 switch with 20 FE PoE, 4 Gigabit ports, 150W PoE, 24-110 VDC input, -40 to 70°C, IP42. Datasheet

Features

Warranty

All technical data should be verified on the manufacturer data sheets.

View full details
  • You may also like
  • Best sellers
  • Similar products

specs-tabs

Collapsible content

FAQs

Technical Specifications

FAQs

Q: What are the key features of the Moxa TN-4528B-20P-4GP-4GBP-CT-T switch?
A: The Moxa TN-4528B-20P-4GP-4GBP-CT-T is an EN 50155 compliant 28-port L2 Ethernet switch. It includes 20 Fast Ethernet PoE ports, 4 Gigabit ports with bypass relay, and 4 Gigabit PoE ports. It has a 150 W PoE power budget and supports a wide power input range of 24 to 110 VDC. The switch operates in temperatures from -40 to 70°C, is rated IP42, and features a conformal coating for enhanced durability.
Q: How does the Moxa TN-4500B Series support industrial applications?
A: The Moxa TN-4500B Series, including the TN-4528B model, is designed for industrial applications with its EN 50155 compliance, making it suitable for railway and other demanding environments. The series offers managed Ethernet switches with 8 to 28 ports, robust operating temperature ranges, and features like PoE support and bypass relay for network reliability.
Q: Can the Moxa TN-4528B switch be used in harsh environments?
A: Yes, the Moxa TN-4528B switch is built for harsh environments. It operates in temperatures ranging from -40 to 70°C and has an IP42 rating, providing protection against dust and water. The conformal coating further enhances its durability, making it ideal for industrial settings.
Q: What are the power input specifications for the Moxa TN-4528B switch?
A: The Moxa TN-4528B switch supports a wide power input range from 24 to 110 VDC, allowing for flexible installation in various industrial power systems. It also features a 150 W PoE power budget to support connected devices.
Q: Where can I purchase the Moxa TN-4528B switch in Australia?
A: In Australia, you can purchase the Moxa TN-4528B switch through authorized resellers like IP Trading. They offer a range of Moxa products and can provide support and guidance for your industrial networking needs.

Technical Specifications

Product Series: EN 50155 Ethernet managed switches
Model: 28-port L2 switch
Total Ports: 28
Fast Ethernet Ports: 20 FE PoE ports
Gigabit Ports: 4 Gigabit ports with bypass relay
Additional Gigabit Ports: 4 Gigabit PoE ports
PoE Power Budget: 150 W
Power Input: 24 to 110 VDC
Operating Temperature Range: -40 to 70°C
Ingress Protection Rating: IP42
Conformal Coating: Yes
Certification: EN 50155
