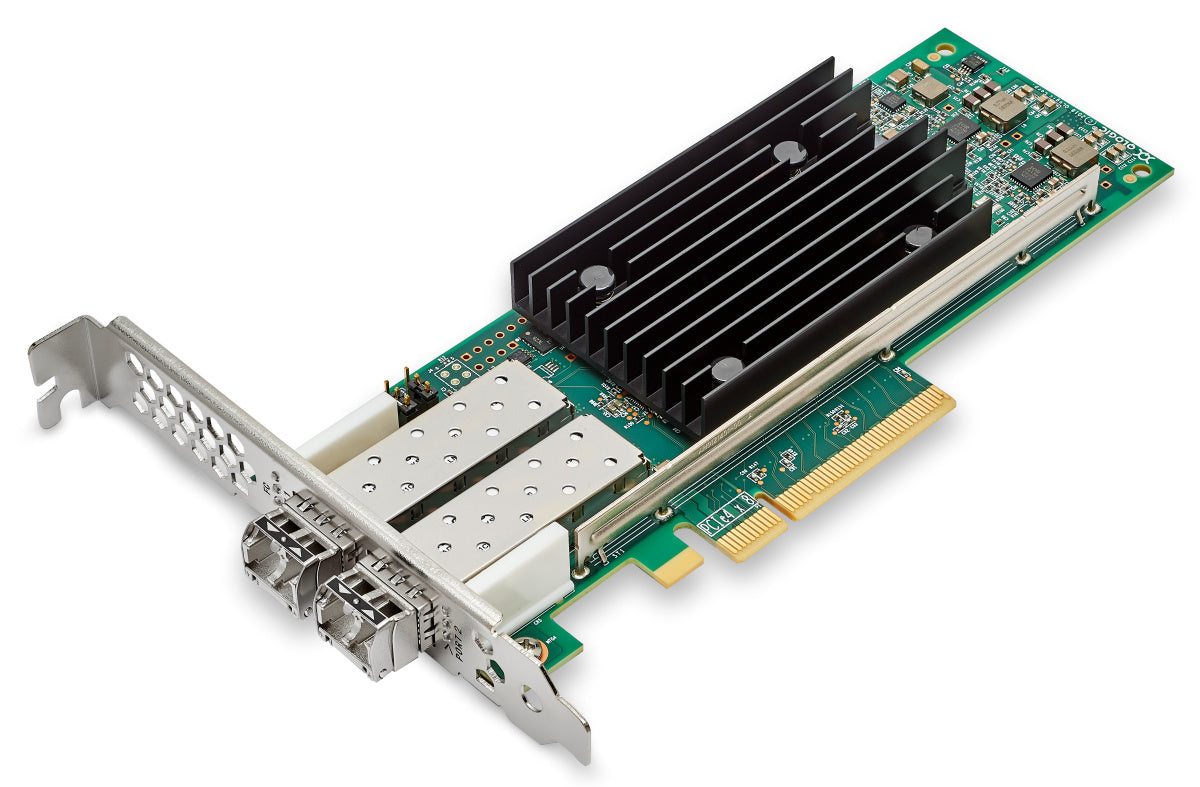

Lenovo 4XC7A08276 | ThinkSystem QLE2772 32G Fibre Channel HBA, PCIe 3.0 x8, Dual, Port

Lenovo 4XC7A08276 | ThinkSystem QLE2772 32G Fibre Channel HBA, PCIe 3.0 x8, Dual, Port

4XC7A08276

Stock Status: Enquire

$2,621.08 AUD
$2,621.08 AUD
$2,621.08 AUD
Sale Stock Status: Enquire
Taxes included. Shipping calculated at checkout.

Description

The ThinkSystem QLogic QLE2772 is a dual‑port 32G Fibre Channel host bus adapter delivering high‑performance SAN connectivity for Lenovo servers. With PCIe 3.0 x8 bandwidth, FC‑NVMe readiness, and backward compatibility with 16G/8G fabrics, it’s built for modern virtualised and mission‑critical workloads. Designed for reliability and scale, the QLE2772 supports multipathing for seamless failover and high availability while protecting existing SAN investments. Backed by Lenovo warranty and validated firmware/driver support for ThinkSystem platforms. Available now at iptrading.com.au — competitive prices and local support.

Features

- High throughput: dual 32GFC ports for demanding SAN workloads
- Low latency and FC-NVMe readiness for modern flash storage
- Dual-port design enables redundancy and multipathing
- Backward compatibility simplifies fabric upgrades
- SR-IOV support for efficient virtualised environments
- Enterprise‑grade reliability with Lenovo validation and support

Warranty

Lenovo offers a standard 1-year warranty across most product lines, including:
• PC Products: 1-year base warranty coverage for laptops, desktops, and other personal computing devices.
• Data Centre Products: 1-year base warranty for servers, storage, and networking hardware.
Warranty coverage includes repair or replacement for eligible defects in materials or workmanship under normal use conditions.
Extended Warranty Options:
IP Trading can offer extended warranty solutions tailored to your business needs. Please contact us for details on available Lenovo extended warranty packages.
https://support.lenovo.com/au/en/solutions/ht505088-product-warranty-and-other-agreements

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Adapter type: Dual-port 32G Fibre Channel host bus adapter
- Ports: 2 x 32GFC
- Interface: PCIe 3.0 x8
- Port interface: SFP28 transceiver slots
- Backward compatibility: 16GFC and 8GFC
- Protocol support: FC-NVMe and FCP
- Max line rate: up to 32 Gbps per port
- SR-IOV virtualisation support
- Boot from SAN support

FAQs

Q: Is the QLE2772 compatible with Lenovo ThinkSystem servers?
A: Yes. It is offered as a Lenovo ThinkSystem option and is supported in selected servers with an available PCIe 3.0 x8 slot. Refer to Lenovo’s compatibility matrix for specific models.

Q: Does this adapter support NVMe over Fibre Channel (FC-NVMe)?
A: Yes. The QLE2772 supports FC-NVMe, enabling low‑latency access to NVMe storage over existing Fibre Channel fabrics.

Q: Can I use this HBA in a 16G or 8G Fibre Channel fabric?
A: Yes. It is backward compatible with 16GFC and 8GFC, allowing seamless integration into existing SAN environments.

Q: What optics and cabling are required?
A: Use 32GFC SFP28 transceivers and OM4/OM3 multimode fibre for 32G operation. It also supports appropriate 16G/8G optics and cabling when operating at those speeds.

Q: Do I need special drivers for my OS?
A: Most enterprise operating systems provide inbox drivers for QLogic HBAs, and Lenovo publishes validated driver/firmware packages for ThinkSystem platforms.

Q: Can I purchase this in Australia from IP Trading?
A: Yes. IP Trading supplies genuine Lenovo options in Australia with local warranty support and invoicing.
