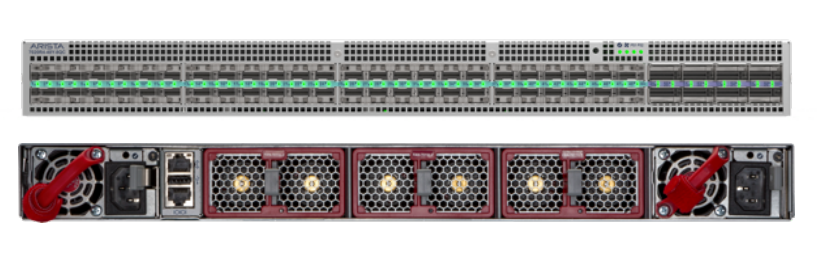

• Silver arista dcs-7020r4-48y-8qc-r server rack with green led indicators and red fan covers on the back side
1 1

Arista

Arista DCS-7020R4-48Y-8QC-R | 7020R4 48x25G SFP+ 8x100G QSFP Switch Router

Arista DCS-7020R4-48Y-8QC-R | 7020R4 48x25G SFP+ 8x100G QSFP Switch Router

DCS-7020R4-48Y-8QC-R

Stock Status: Enquire

$0.00 AUD
$0.00 AUD
$0.00 AUD
Sale Stock Status: Enquire
Taxes included. Shipping calculated at checkout.

Description

The Arista 7020R4 is a high-density data centre switch router delivering 48x 25GbE SFP+ ports and 8x 100GbE QSFP ports in a compact fixed form factor. Designed for spine, leaf, and interconnect deployments in modern cloud and enterprise data centres, it delivers exceptional forwarding performance with full L2/L3 routing capabilities. The rear-to-front airflow configuration suits hot-aisle/cold-aisle data centre designs, while the dual AC power supplies provide the redundancy demanded by production environments.

Running Arista EOS, the 7020R4 supports advanced networking features including VXLAN, BGP EVPN, and rich telemetry via Arista's CloudVision platform — making it ideal for organisations building scalable, automation-ready network fabrics. Need it fast? iptrading.com.au delivers across Australia — shop now.

Features

- 48x 25GbE SFP+ ports for high-density server and storage connectivity
- 8x 100GbE QSFP ports for high-bandwidth spine or interconnect uplinks
- Full Layer 2 and Layer 3 switch router capabilities
- VXLAN BGP-EVPN support for scalable overlay network fabrics
- Arista EOS — consistent, programmable operating system across the Arista portfolio
- CloudVision integration for streaming telemetry, ZTP, and automated operations
- Rear-to-front airflow for hot-aisle/cold-aisle data centre deployments
- Dual redundant AC power supplies for high-availability environments
- OpenConfig and NETCONF/YANG support for model-driven network automation
- Rich routing protocol support: BGP, OSPF, ISIS, PIM, and more

Warranty

Arista hardware products come with a 1-year limited hardware warranty, covering defects in materials and workmanship under normal use.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Arista products. Contact our team to explore options that align with your organisation's needs.
https://www.arista.com/assets/data/pdf/Warranty.pdf

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 48x 25GbE SFP+ downlink ports
- 8x 100GbE QSFP uplink ports
- Airflow: Rear-to-front (port-side exhaust)
- Power supply: 2x AC (redundant)
- Operating System: Arista EOS
- Form factor: Fixed 1U rack-mount
- Switching architecture: Cut-through and store-and-forward
- Forwarding: Wire-rate Layer 2 and Layer 3
- Routing protocols: BGP, OSPF, ISIS, VXLAN BGP-EVPN
- Management: Console, out-of-band management port, SSH, SNMP, NETCONF, OpenConfig

FAQs

Q: What is the Arista 7020R4 designed for?
A: The Arista 7020R4 is purpose-built for data centre leaf, spine, and interconnect roles. With 48x 25GbE and 8x 100GbE ports, it is ideal for high-density server connectivity and high-bandwidth uplinks in cloud and enterprise network fabrics.

Q: Does the 7020R4 support VXLAN and BGP EVPN?
A: Yes. Running Arista EOS, the 7020R4 supports VXLAN with BGP EVPN, enabling scalable overlay network designs widely used in modern multi-tenant and cloud data centre deployments.

Q: What airflow direction does the DCS-7020R4-48Y-8QC-R use?
A: The '-R' suffix denotes rear-to-front airflow (port-side exhaust). This is designed for hot-aisle containment data centre environments where air flows from the cold aisle through the equipment and exhausts into the hot aisle.

Q: Is the power supply redundant on this model?
A: Yes. The DCS-7020R4-48Y-8QC-R includes two AC power supplies, providing redundant power to eliminate single points of failure in mission-critical environments.

Q: Can the 7020R4 integrate with Arista CloudVision?
A: Yes. Arista EOS natively integrates with CloudVision, Arista's network management and telemetry platform, enabling zero-touch provisioning, real-time streaming telemetry, and network-wide change management.

Q: Can I purchase the Arista DCS-7020R4-48Y-8QC-R in Australia through IP Trading?
A: Yes. IP Trading is an Australian B2B IT hardware reseller stocking Arista data centre switching products including the 7020R4 series. Visit iptrading.com.au to check availability and get fast delivery across Australia.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
