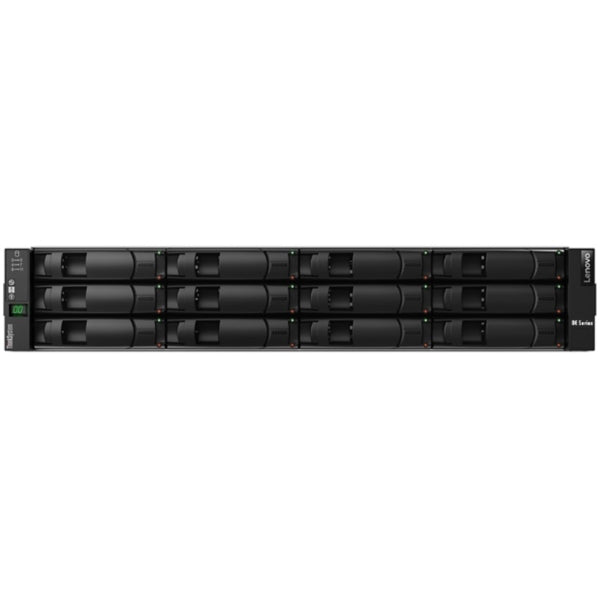

Lenovo 7Y63A000WW ThinkSystem DE120S 2U12 LFF Expansion Enclosure

Boost your data center's performance with the Lenovo 7Y63A000WW ThinkSystem DE120S Expansion Enclosure. Designed for high-capacity, high-availability storage, this 2U12 Large Form Factor (LFF) unit seamlessly integrates into your existing ThinkSystem framework. It supports 12 LFF drives, offering scalable and flexible storage solutions tailored to your needs. Ideal for expanding storage in enterprise environments, the DE120S ensures reliable performance with easy-to-manage features, making it the perfect choice for growing businesses and data-intensive applications.

REQUEST A QUOTE today, and let us provide you with a prompt and professional response tailored just for you. Experience the highest standard of service at unbeatable prices.

Lenovo 7Y63A000WW ThinkSystem DE120S 2U12 LFF Expansion Enclosure

Features

  • High-density 2U expansion enclosure
  • Supports up to 12 large form factor (LFF) drives
  • Seamlessly integrates with Lenovo ThinkSystem DE Series storage arrays
  • Provides flexible and scalable storage expansion
  • Hot-swappable components for minimized downtime
  • Dual-redundant power supplies and cooling
  • Enhanced data protection with ThinkSystem data management software
  • Energy-efficient design to reduce operational costs

Technical Specifications

  • Form Factor: 2U Rack-mountable
  • Drive Bays: 12 x Large Form Factor (LFF) hot-swappable drive bays
  • Supported Drives: SAS and NL-SAS HDDs
  • Drive Interface: SAS 12Gbps
  • Maximum Raw Capacity: Up to 144TB per enclosure (using 12TB drives)
  • Connectivity: Dual 12Gbps SAS expansion ports
  • Power Supply: Dual hot-swappable, redundant power supplies
  • Cooling: Dual hot-swappable fans
  • Dimensions (H x W x D): 3.4 x 18.9 x 20.7 inches (87 x 480 x 527 mm)
  • Weight: Approximately 28 kg (61.7 lbs) without drives
  • Operating Temperature: 10 to 35°C (50 to 95°F)
  • Non-Operating Temperature: -40 to 70°C (-40 to 158°F)
  • Operating Humidity: 8% to 90% (non-condensing)
  • Non-Operating Humidity: 5% to 95% (non-condensing)
  • Compliance: CE, FCC, UL, RoHS

Frequent Ask Questions

  • What is the Lenovo ThinkSystem DE120S?

    The Lenovo ThinkSystem DE120S is a 2U12 LFF (Large Form Factor) expansion enclosure designed for enterprise storage solutions. It provides additional storage capacity for ThinkSystem storage arrays.

  • What is the form factor of the ThinkSystem DE120S?

    The ThinkSystem DE120S has a 2U rackmount form factor.

  • How many drive bays does the DE120S enclosure support?

    The DE120S enclosure supports up to 12 Large Form Factor (LFF) drive bays.

  • What types of drives are compatible with the ThinkSystem DE120S?

    The DE120S is compatible with both SAS HDDs and SSDs, providing flexibility for various storage needs.

  • How is the ThinkSystem DE120S connected to the primary storage array?

    The DE120S expansion enclosure connects to the primary storage array via SAS connections, enabling data transfer between the enclosure and the storage array.

  • Can the ThinkSystem DE120S be used with other Lenovo ThinkSystem storage arrays?

    Yes, the DE120S is designed to be compatible with other Lenovo ThinkSystem storage arrays, providing scalable storage expansion options.

  • What are the primary use cases for the ThinkSystem DE120S?

    The ThinkSystem DE120S is ideal for businesses that need to expand their existing storage capacity for applications such as data warehousing, backup and recovery, and high-performance computing.

  • Does the ThinkSystem DE120S support hot-swappable drives?

    Yes, the DE120S supports hot-swappable drives, allowing for ease of maintenance and drive replacement without disrupting operations.
