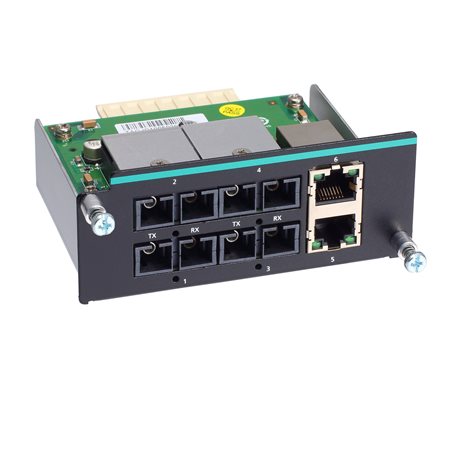

Moxa IM-6700A-4MSC2TX Fast Ethernet Module With 4 Multi-Mode 100Basefx Ports With Sc Connector, 2 10/100Baset(X) Ports

The Moxa IM-6700A-4MSC2TX Fast Ethernet Module is designed for robust and efficient network communication needs. It features 4 multi-mode 100BaseFX ports with SC connectors for reliable fiber-optic connections and 2 10/100BaseT(X) ports for seamless Ethernet integration. This module enhances network flexibility and throughput, making it ideal for industrial applications demanding high performance and stable connectivity. Built with durability in mind, it ensures consistent and secure data transmission across all connected devices.

REQUEST A QUOTE today, and let us provide you with a prompt and professional response tailored just for you. Experience the highest standard of service at unbeatable prices.

Moxa IM-6700A-4MSC2TX Fast Ethernet Module With 4 Multi-Mode 100Basefx Ports With Sc Connector, 2 10/100Baset(X) Ports

Features

  • 4 Multi-Mode 100BaseFX Ports with SC Connectors
  • 2 10/100BaseT(X) Ports
  • High performance and reliability
  • Designed for harsh industrial environments
  • Easy integration with existing network infrastructure
  • DIN-rail or wall-mounting capability
  • Compact and robust design
  • Supports IEEE 802.3 for Ethernet, IEEE 802.3u for Fast Ethernet

Technical Specifications

  • Multi-mode 100BaseFX Ports: 4 with SC connector
  • Distance: 2 km (62.5/125 μm); 4 km (50/125 μm)
  • Wavelength: 1300 nm
  • 10/100BaseT(X) Ports: 2
  • Speed: 10/100 Mbps, Auto MDI/MDX
  • Standards: IEEE 802.3 for 10BaseT, IEEE 802.3u for 100BaseT(X) and 100BaseFX
  • Input Voltage: 12 to 48 VDC, 18 to 30 VAC
  • Operating Temperature: -40 to 75°C (-40 to 167°F)
  • Protection: IP30-rated metal housing
  • Mounting: DIN-rail or wall-mounting installation
  • Dimensions: 135 x 105 x 45 mm (5.31 x 4.13 x 1.77 in)
  • Weight: 550 g (1.21 lb)
  • LED Indicators: PWR1, PWR2, FAULT, 10/100 (TP port), 100FX (FP port)

Frequent Ask Questions

  • What is the purpose of the Moxa IM-6700A-4MSC2TX module?

    The Moxa IM-6700A-4MSC2TX module is designed to expand the network connectivity of the Moxa switches by providing additional Fast Ethernet ports. It includes 4 multi-mode 100Base-FX ports with SC connectors and 2 10/100Base-T(X) ports.

  • What kind of connectors does the module have?

    The module is equipped with 4 SC connectors for the multi-mode 100Base-FX ports, and 2 standard RJ45 connectors for the 10/100Base-T(X) ports.

  • Is the module compatible with all Moxa switches?

    The IM-6700A-4MSC2TX module is designed to be compatible with specific Moxa switch models, particularly the units that support modular expansion. Please refer to the switch\'s user manual or specifications to ensure compatibility.

  • What type of fiber optic cables can be used with this module?

    The multi-mode 100Base-FX ports on this module are compatible with multi-mode fiber optic cables with SC connectors.

  • What is the maximum transmission distance for the 100Base-FX ports on this module?

    The maximum transmission distance for the 100Base-FX ports using multi-mode fiber optic cables is typically up to 2 kilometers (1.24 miles).

  • Does the module support auto-negotiation on its 10/100Base-T(X) ports?

    Yes, the 10/100Base-T(X) ports on the module support auto-negotiation for speed and duplex mode.

  • What are the typical use cases for the Moxa IM-6700A-4MSC2TX module?

    This module is typically used in industrial networking applications where reliable and flexible network connectivity is required, such as in factory automation, transportation systems, and process control networks.
