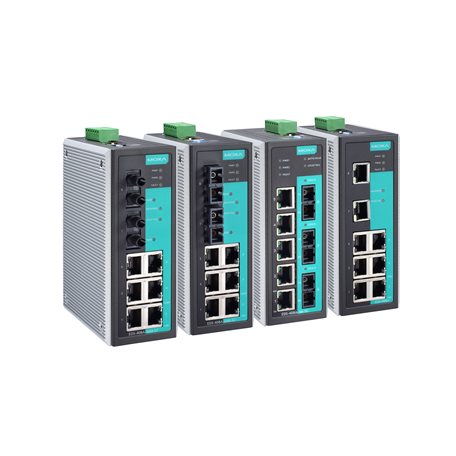

Moxa EDS-408A-EIP Entry-Level Managed Ethernet Switch With 8 10/100Baset(X) Ports, Ethernet/Ip Enabled, 0 To 60 C Operating Temperature

The Moxa EDS-408A-EIP is an entry-level managed Ethernet switch designed to meet industrial networking needs. It features 8 10/100BaseT(X) ports, ensuring robust and reliable connectivity. The Ethernet/IP enabled switch supports efficient data communication, making it suitable for various industrial applications. With an operating temperature range of 0 to 60°C, it is ideal for use in diverse environments. The EDS-408A-EIP’s user-friendly interface and advanced management functions deliver superior network performance and flexibility.

REQUEST A QUOTE today, and let us provide you with a prompt and professional response tailored just for you. Experience the highest standard of service at unbeatable prices.

Moxa EDS-408A-EIP Entry-Level Managed Ethernet Switch With 8 10/100Baset(X) Ports, Ethernet/Ip Enabled, 0 To 60 C Operating Temperature

Features

  • Entry-level managed Ethernet switch
  • 8 10/100BaseT(X) ports
  • Ethernet/IP enabled for seamless integration
  • Operating temperature range from 0 to 60°C
  • IGMP snooping and GMRP for filtering multicast traffic
  • Turbo Ring, Turbo Chain, and RSTP/STP (IEEE 802.1w/D) for network redundancy
  • Port-based VLAN, IEEE 802.1Q VLAN, and GVRP to ease network planning
  • QoS and CoS to increase determinism
  • RMON for proactive network monitoring and planning
  • SNMPv1/v2c/v3 for different levels of network management security
  • IEEE 802.1X and HTTPS/SSL for enhanced network security
  • Port-to-port isolation to guard against broadcast storms
  • Broadcast storm protection
  • Automatic warning by exception through email, relay output

Technical Specifications

  • Number of Ports: 8
  • Port Type: 10/100BaseT(X)
  • Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3x
  • Switch Properties: Switching bandwidth: 1.6 Gbps, Packet buffer size: 1 Mbit
  • MAC Table: 8K MAC addresses
  • Multicast Filtering: IGMP snooping v1/v2, GMRP
  • VLAN: 802.1Q VLAN, GVRP, 32 VLAN groups
  • Security: RADIUS, TACACS+, SSL, SSH, Port-based, and MAC-based authentication
  • Management: SNMPv1/v2c/v3, RMON 1, 2, 3, 9, Web-based management, Telnet, Serial console
  • Redundancy: STP/RSTP, Rings (Turbo Ring/Turbo Chain)
  • Dimensions (W x D x H): 53.6 x 135 x 105 mm (2.11 x 5.31 x 4.13 in)
  • Weight: 800 g (1.76 lb)
  • Operating Temperature: 0 to 60°C (32 to 140°F)
  • Storage Temperature: -40 to 85°C (-40 to 185°F)
  • Relative Humidity: 5% to 95% (non-condensing)
  • Input Voltage: 12/24/48 VDC, redundant dual inputs
  • Current Consumption: 0.32 A @ 24 VDC
  • Certifications: CE, FCC, UL, hazardous location (Class 1 Division 2)
  • MTBF: 600,000 hrs

Frequent Ask Questions

  • What is the Moxa EDS-408A-EIP?

    The Moxa EDS-408A-EIP is an entry-level managed Ethernet switch equipped with 8 10/100BaseT(X) ports, and it is Ethernet/IP enabled with an operating temperature range from 0 to 60°C.

  • What kind of network environments is the Moxa EDS-408A-EIP suitable for?

    The Moxa EDS-408A-EIP is suitable for industrial Ethernet networks and applications where reliable, managed Ethernet connectivity is required. It\'s ideal for environments involving automation, substations, and other mission-critical applications.

  • What management features does the Moxa EDS-408A-EIP offer?

    The Moxa EDS-408A-EIP offers various management features including SNMP v1/v2c/v3, RMON, web console, Telnet, and HTTPS/SSL. These features provide robust management capabilities for network administrators.

  • Does the Moxa EDS-408A-EIP support redundancy protocols?

    Yes, the Moxa EDS-408A-EIP supports redundancy protocols such as RSTP (Rapid Spanning Tree Protocol), Moxa’s Turbo Ring, and Turbo Chain to ensure network reliability and minimize downtime.

  • What are the power input requirements for the Moxa EDS-408A-EIP?

    The Moxa EDS-408A-EIP requires a power input ranging from 12/24/48 VDC (9.6 to 60 VDC), making it flexible for various industrial power sources.

  • Does the Moxa EDS-408A-EIP have any security features?

    Yes, the switch includes various security features such as IP address filtering, SNMP v3 authentication, HTTPS/SSL, and port-based network access control (IEEE 802.1X).
