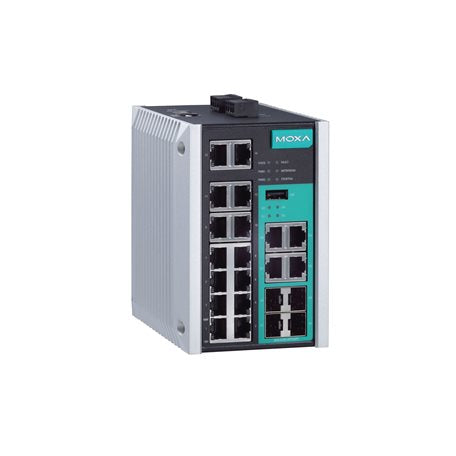

Moxa EDS-518E-MM-SC-4GTXSFP 14+4G Port Managed Switch, 12 Fast Tp, 2 Multimode Sc, 4 Combo Giga Tp/Sfp, -10 To 60C

The Moxa EDS-518E-MM-SC-4GTXSFP is a high-performance managed switch specifically engineered for industrial applications. It features 14+4G ports, including 12 Fast Ethernet ports, 2 Multimode SC ports, and 4 Combo Gigabit Ethernet ports (TP/SFP). Designed to operate in a temperature range of -10°C to 60°C, this switch ensures reliable network connectivity in challenging environments. Whether enhancing network redundancy or ensuring data transmission integrity, the EDS-518E-MM-SC-4GTXSFP is a robust solution for industrial networking requirements.

REQUEST A QUOTE today, and let us provide you with a prompt and professional response tailored just for you. Experience the highest standard of service at unbeatable prices.

Moxa EDS-518E-MM-SC-4GTXSFP 14+4G Port Managed Switch, 12 Fast Tp, 2 Multimode Sc, 4 Combo Giga Tp/Sfp, -10 To 60C

Features

  • 14-port managed Ethernet switch with 12 Fast Ethernet ports
  • 2 Multimode SC (fiber) ports for flexible network architecture
  • 4 Combo Gigabit ports (TP/SFP) to support high-speed connections
  • Rugged design, suitable for industrial applications
  • Wide operating temperature range of -10°C to 60°C
  • Comprehensive network management functions including VLAN, QoS, IGMP Snooping, and Port Trunking
  • Advanced security features: RADIUS, TACACS+, SSL, SSH
  • Support for industrial protocols and network redundancy mechanisms
  • User-friendly web interface for configuration and management
  • Built-in relay output warning for power failure and port break alarm

Technical Specifications

  • Model: EDS-518E-MM-SC-4GTXSFP
  • Ethernet Ports: 12 x 10/100BaseT(X) RJ45, Auto MDI/MDI-X, Auto-Negotiation
  • Fiber Ports: 2 x 100BaseFX (Multi-mode SC)
  • Combo Ports: 4 x 10/100/1000BaseT(X)-to-100/1000BaseSFP
  • Switching Capacity: 7.2 Gbps
  • Forwarding Rate: 5.4 Mpps
  • Operating Temperature: -10°C to 60°C (14°F to 140°F)
  • Power Input: 24/48 VDC (12 VDC min, 57 VDC max), redundant dual inputs
  • Power Consumption: Max. 18W
  • Dimensions: 73 x 116.2 x 153.6 mm (2.87 x 4.57 x 6.05 in)
  • Weight: 1.1 kg (2.43 lb)
  • Mounting: DIN-Rail or Panel Mount
  • Certification: CE, FCC, UL

Frequent Ask Questions

  • What are the primary features of the Moxa EDS-518E-MM-SC-4GTXSFP managed switch?

    The Moxa EDS-518E-MM-SC-4GTXSFP managed switch features 14 Fast Ethernet ports, 2 multimode SC fiber ports, and 4 combo Giga TP/SFP ports. It supports an operating temperature range of -10 to 60 degrees Celsius.

  • What is the port configuration for this switch?

    The switch includes 12 Fast Ethernet TP ports, 2 multimode SC fiber ports, and 4 combo Giga TP/SFP ports.

  • What type of network management capabilities does this switch offer?

    The Moxa EDS-518E-MM-SC-4GTXSFP offers advanced network management features such as VLAN, QoS, IGMP snooping, port mirroring, and SNMP for efficient and secure network operation.

  • What kind of environmental conditions can this switch operate in?

    This managed switch can operate in temperatures ranging from -10°C to 60°C, making it suitable for a variety of industrial environments.

  • What is the purpose of the combo Giga TP/SFP ports on this switch?

    The combo Giga TP/SFP ports provide flexibility for network expansion, allowing for either copper or fiber connections on the same port, depending on your network requirements.

  • Is this switch suitable for industrial applications?

    Yes, the Moxa EDS-518E-MM-SC-4GTXSFP is designed for industrial use, offering robust features and a wide operating temperature range to support various challenging environments.
