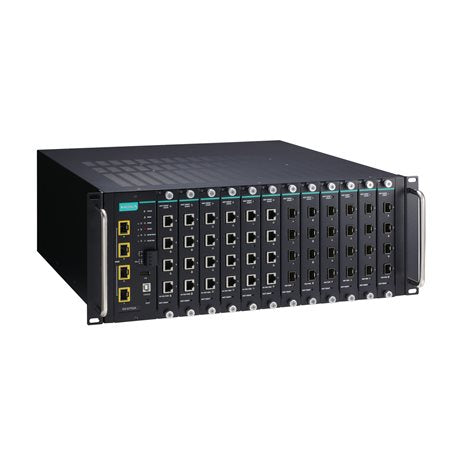

Moxa ICS-G7752A-4XG-HV-HV | ICS-G7752A Modular Managed Rackmount Switch, 4x 10G SFP+, Dual HV

Authorised Moxa Partner

SKU:ICS-G7752A-4XG-HV-HV

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa ICS-G7752A-4XG-HV-HV is a full Gigabit modular managed Ethernet rackmount switch with 4 x 10GbE SFP+ slots and 12 slots for 4-port interface modules, scaling to 48 GbE ports plus the 10GbE uplinks. Supplied with two isolated 85 to 264 VAC power supplies (HV-HV) and rated for operation from -10 to 60°C, it suits substations, transport, and heavy industrial backbone deployments that need high port density and redundant power.

Interface modules support 10/100/1000BaseT(X), PoE+ 10/100/1000BaseT(X), or 100/1000BaseSFP, so the port mix can be tailored per site and expanded without replacing the chassis. A fanless design, hot-swappable interface and power modules, and Turbo Ring and Turbo Chain redundancy with recovery under 20 ms at 250 switches keep the network resilient. With IM-G7000A-4PoE modules and an external power supply, the switch can deliver up to 48 PoE+ ports from a 1,440 W budget.

Features

- Up to 52 optical fibre connections (SFP slots)
- Up to 48 PoE+ ports with external power supply (IM-G7000A-4PoE module)
- Fanless design
- Modular design for flexible, hassle-free expansion
- Hot-swappable interface and power modules
- Turbo Ring and Turbo Chain (<20 ms recovery @ 250 switches), STP/RSTP/MSTP redundancy
- Isolated redundant power inputs with universal 110/220 VAC range

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 4 x 10GbE SFP+ slots
- 12 slots for 4-port interface modules (10/100/1000BaseT(X), PoE+ 10/100/1000BaseT(X), or 100/1000BaseSFP)
- Up to 48 x GbE ports plus 4 x 10GbE ports
- 2 isolated power supplies, 85 to 264 VAC (HV-HV)
- Operating temperature -10 to 60°C
- Maximum PoE power budget 1,440 W @ 48 VDC with IM-G7000A-4PoE modules (external power supply)
- MTBF 274,488 hrs (Telcordia)
- 5-year warranty

FAQs

Q: How many ports can the ICS-G7752A-4XG-HV-HV support?
A: It has 12 slots for 4-port interface modules, giving up to 48 x GbE ports, plus 4 fixed 10GbE SFP+ slots.

Q: Which interface modules can be installed?
A: The 12 module slots accept 4-port modules in 10/100/1000BaseT(X), PoE+ 10/100/1000BaseT(X), or 100/1000BaseSFP variants.

Q: Does this switch support PoE+?
A: Yes, with IM-G7000A-4PoE modules and an external power supply it can provide up to 48 PoE+ ports, with a maximum budget of 1,440 W at 48 VDC.

Q: What power supplies are included in the HV-HV model?
A: It includes two isolated redundant power supplies covering 85 to 264 VAC, suitable for 110/220 VAC mains.

Q: What operating temperature range does it support?
A: This model is rated for operation from -10 to 60°C.

Q: Which redundancy protocols does it support?
A: It supports Turbo Ring and Turbo Chain with recovery under 20 ms at 250 switches, as well as STP, RSTP and MSTP.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
