Moxa NPort S9650I-8F-2HV-SSC-T | NPort S9650I 8-Port Rugged Device Server, ST Fibre, HV

Authorised Moxa Partner

SKU:NPort S9650I-8F-2HV-SSC-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

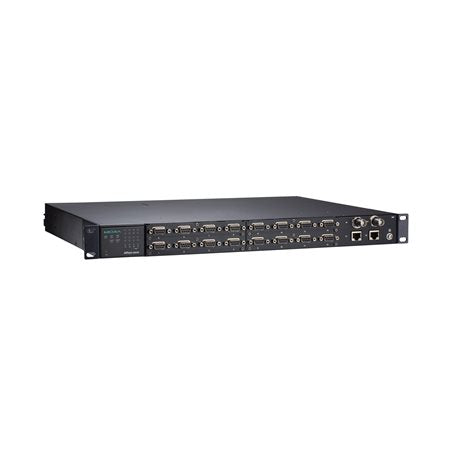

The Moxa NPort S9650I-8F-2HV-SSC-T is a rack-mount rugged serial device server that combines a managed Ethernet switch with an 8-port RS-232/422/485 server. The serial ports use multi-mode ST fibre connectors, while the Ethernet side provides 2 x 10/100BaseT(X) RJ45 ports and 2 x 100BaseFX single-mode SC fibre ports. This high-voltage (HV) model accepts 88-300 VDC or 85-264 VAC and operates from -40 to 85°C, making it suited to power substation and harsh industrial environments.

Built to IEC 61850-3 and IEEE 1613 for power substations, it supports Modbus TCP and DNP3 protocol conversion, hardware-based IEEE 1588v2 PTP and IRIG-B time synchronisation, and redundant Ethernet through Turbo Ring, Turbo Chain and RSTP. Secure management is provided through HTTPS/SSL, SSH, RADIUS and TACACS+.

Features

- Combines a managed Ethernet switch and a device server in one unit
- Rugged design for power substation use (IEC 61850-3, IEEE 1613)
- Redundant Ethernet via Turbo Ring v1/v2, Turbo Chain and RSTP
- Hardware-based IEEE 1588v2 PTP and IRIG-B time synchronisation
- Secure operation with HTTPS/SSL, SSH, RADIUS and TACACS+
- Supports Modbus TCP and DNP3 protocol conversion
- Dual power inputs with reverse polarity protection
- Wide -40 to 85°C operating temperature

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 8 x RS-232/422/485 serial ports with multi-mode fibre ST connectors
- 2 x 10/100BaseT(X) RJ45 ports
- 2 x 100BaseFX single-mode SC fibre ports
- Dual power inputs: 100-240 VAC / 100-250 VDC (HV model)
- Operating temperature: -40 to 85°C
- 19-inch rack mount, metal housing
- Dimensions: 457 x 32 x 330 mm
- Weight: 5.15 kg
- Baudrate: 50 bps to 921.6 kbps
- Serial isolation 2 kV, serial surge protection 4 kV
- Magnetic isolation protection on Ethernet ports: 1.5 kV
- Max. 64 VLANs, 256 IGMP groups, 4 priority queues
- IEEE 1588v2 PTP (hardware-based) and IRIG-B
- IEC 61850-3 and IEEE 1613 power substation compliant
- MTBF: 304,587 hrs (Telcordia SR332)
- Warranty: 5 years

FAQs

Q: What type of connectors do the serial ports use?
A: All 8 serial ports use multi-mode fibre ST connectors and support RS-232, RS-422 and RS-485 operation.

Q: What Ethernet ports does this model provide?
A: It has 2 x 10/100BaseT(X) RJ45 ports and 2 x 100BaseFX single-mode SC fibre ports.

Q: What power input does the HV variant accept?
A: It has two power inputs accepting 100 to 240 VAC or 100 to 250 VDC, with reverse polarity protection.

Q: Is it suitable for power substation environments?
A: Yes. It complies with IEC 61850-3 and IEEE 1613 and supports hardware-based IEEE 1588v2 PTP and IRIG-B time synchronisation.

Q: Which industrial protocols and serial operation modes are supported?
A: It supports Modbus TCP and DNP3 protocol conversion, plus Real COM, RFC2217, TCP Client, TCP Server and UDP operation modes.

Q: How is the unit mounted?
A: It is a 19-inch rack-mount unit in a metal housing, measuring 457 x 32 x 330 mm.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
