Moxa NPort S9650I-8F-2HV-MSC-T | NPort S9650I 8-Port Rugged Serial Device Server, ST Fibre, 2x SC

Moxa NPort S9650I-8F-2HV-MSC-T | NPort S9650I 8-Port Rugged Serial Device Server, ST Fibre, 2x SC

Authorised Moxa Partner

NPort S9650I-8F-2HV-MSC-T

Stock Status: Enquire

Request Quote
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

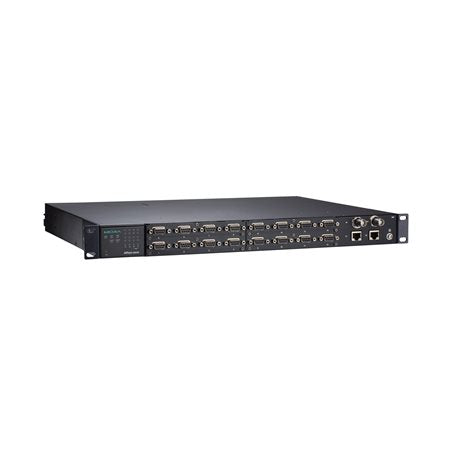

The Moxa NPort S9650I-8F-2HV-MSC-T is a 19-inch rackmount rugged serial device server with 8 RS-232/422/485 serial ports on multi-mode ST fibre connectors. A built-in Ethernet switch adds 2 x 10/100BaseT(X) RJ45 ports and 2 x 100BaseFX multi-mode SC fibre ports, making it well suited to power substations and other electrically noisy industrial sites. It runs on 110/220 VAC/VDC dual power inputs and operates from -40 to 85°C.

Hardware-based IEEE 1588v2 PTP and IRIG-B time management, Turbo Ring v1/v2, Turbo Chain and RSTP redundancy, and Modbus and DNP3 operation modes support demanding utility and automation networks. Security features include HTTPS/SSL, SSH, RADIUS and TACACS+, and the unit is compliant with IEC 61850-3 and IEEE 1613. Windows Real COM, Linux Real TTY, fixed TTY and Android API drivers are supported.

Features

- Serial ports with multi-mode fibre ST connectors for noise-immune, long-distance serial links
- Integrated Ethernet switch with 2 copper and 2 multi-mode SC fibre ports
- Hardware-based IEEE 1588v2 PTP and IRIG-B time synchronisation
- Turbo Ring v1/v2, Turbo Chain and RSTP network redundancy
- Modbus TCP and DNP3 TCP outstation support, with Modbus and DNP3 serial modes
- Dual 110/220 VAC/VDC power inputs with reverse polarity protection
- Security: HTTPS/SSL, SSH, RADIUS, TACACS+
- Built-in watchdog timer, buzzer and RTC
- Windows Real COM, Linux Real TTY, fixed TTY and Android API driver support
- IEC 61850-3 and IEEE 1613 power substation compliance

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 8 x RS-232/422/485 serial ports with multi-mode fibre ST connectors
- 2 x 10/100BaseT(X) RJ45 ports
- 2 x 100BaseFX multi-mode SC fibre ports
- Baudrate: 50 bps to 921.6 kbps, supports non-standard baudrates
- Serial isolation 2 kV, serial surge protection 4 kV
- Time management: NTP, SNTP, IEEE 1588v2 PTP (hardware-based), IRIG-B
- Redundancy: RSTP, Turbo Chain, Turbo Ring v1/v2
- Operation modes: Real COM, RFC2217, TCP Client, TCP Server, UDP, Modbus, DNP3, DNP3 Raw Socket
- Dual power inputs: 110/220 VAC/VDC (100 to 240 VAC, 100 to 250 VDC)
- Operating temperature: -40 to 85°C
- Metal housing, 19-inch rack mounting
- Dimensions: 457 x 32 x 330 mm
- Weight: 5.15 kg
- Compliance: IEC 61850-3, IEEE 1613, EN 61000-6-2/-6-4, FCC Part 15B Class A

FAQs

Q: What type of serial connectors does the NPort S9650I-8F-2HV-MSC-T use?
A: All 8 serial ports use multi-mode fibre ST connectors and support RS-232, RS-422 and RS-485, providing noise-immune, long-distance serial links.

Q: Does it include an Ethernet switch?
A: Yes. It has a built-in Ethernet switch with 2 x 10/100BaseT(X) RJ45 ports and 2 x 100BaseFX multi-mode SC fibre ports.

Q: Is it suitable for power substation use?
A: Yes. It complies with IEC 61850-3 and IEEE 1613 and supports IEEE 1588v2 PTP and IRIG-B time synchronisation.

Q: What power supply does it need?
A: It has dual 110/220 VAC/VDC power inputs, covering 100 to 240 VAC and 100 to 250 VDC, with reverse polarity protection.

Q: What operating modes are supported?
A: Real COM, RFC2217, TCP Client, TCP Server, UDP, Modbus, DNP3 and DNP3 Raw Socket. Modbus TCP supports up to 32 client and 16 server connections.

Q: What operating temperature range does it support?
A: It operates from -40 to 85°C, so it suits harsh industrial and outdoor-cabinet environments.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
