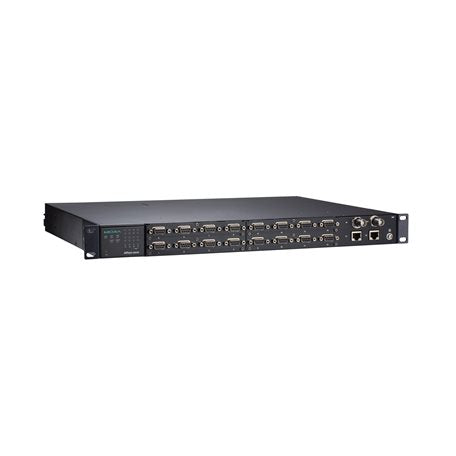

Moxa NPort S9650I-8F-2HV-E-T | NPort S9650I Rugged Serial Device Server, 8-Port ST Fibre, 2x 10/100, HV

Authorised Moxa Partner

SKU:NPort S9650I-8F-2HV-E-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa NPort S9650I-8F-2HV-E-T is a rugged 8-port RS-232/422/485 serial device server with multi-mode ST fibre serial connections, built for harsh substation and utility environments. It pairs 2 x 10/100BaseT(X) RJ45 Ethernet ports with IEEE 1588v2 support, a wide 88-300 VDC / 85-264 VAC high-voltage power input and a -40 to 85°C operating range.

A built-in managed Ethernet switch provides Turbo Ring/Chain and RSTP/STP redundancy, while support for DNP3, Modbus and IEC 61850 MMS protocols makes it suited to power automation networks. Real COM/TTY drivers for Windows and Linux allow legacy serial equipment to be connected to modern IP networks, and compliance with IEC 61850-3 and IEEE 1613 supports substation deployment.

Features

- Ethernet redundancy with Turbo Ring/Chain and RSTP/STP
- Supports DNP3 and Modbus protocols
- Supports IEC 61850 MMS protocol
- IEEE 1588v2 and IRIG-B time synchronisation functions
- Security features based on IEC 62443/NERC CIP
- Real COM/TTY drivers for Windows and Linux
- Wide -40 to 85°C operating temperature

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 8 x RS-232/422/485 serial ports via multi-mode ST fibre connectors
- 2 x 10/100BaseT(X) Ethernet ports (RJ45) with IEEE 1588v2 support
- Power input: 88 to 300 VDC or 85 to 264 VAC (HV)
- Operating temperature: -40 to 85°C
- Baudrate: 50 bps to 921.6 kbps, non-standard baudrates supported
- Serial isolation: 2 kV, surge protection: 4 kV
- ADDC RS-485 direction control
- Built-in WDT, buzzer and RTC
- MTBF: 311,734 hrs
- Compliance: IEC 61850-3, IEEE 1613

FAQs

Q: What serial interfaces does the NPort S9650I-8F-2HV-E-T support?
A: It provides 8 serial ports supporting RS-232, RS-422 and RS-485, delivered through multi-mode ST fibre connectors with 2 kV isolation.

Q: What power input does this model accept?
A: This high-voltage variant accepts 88 to 300 VDC or 85 to 264 VAC, suiting substation and utility power supplies.

Q: Does it support redundant Ethernet networks?
A: Yes. The built-in managed Ethernet switch supports Turbo Ring/Chain and RSTP/STP redundancy.

Q: Which protocols and standards does it support?
A: It supports DNP3, Modbus and IEC 61850 MMS protocols, and complies with IEC 61850-3 and IEEE 1613 for substation environments.

Q: What is the operating temperature range?
A: It operates from -40 to 85°C, making it suitable for harsh industrial and outdoor cabinet installations.

Q: Does it support time synchronisation?
A: Yes. The Ethernet ports support IEEE 1588v2 precision time synchronisation.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
