Moxa NPort S9650I-8B-2HV-IRIG-T | NPort S9650I 8-Port RS-232/422/485 Device Server, IRIG-B, HV

Authorised Moxa Partner

SKU:NPort S9650I-8B-2HV-IRIG-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

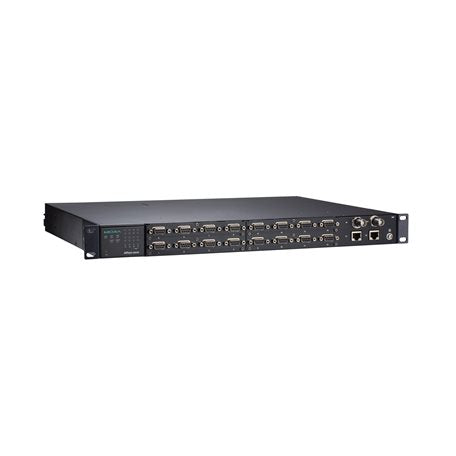

The Moxa NPort S9650I-8B-2HV-IRIG-T is a rugged 19-inch rackmount serial device server with 8 RS-232/422/485 serial ports and IRIG-B time signal output, built for power substation and utility deployments. This HV model accepts 100 to 240 VAC or 100 to 250 VDC on dual power inputs, and includes the IRIG-B BNC module with an operating range of -40 to 85°C.

Two 10/100BaseT(X) Ethernet ports with hardware-based IEEE 1588v2 PTP support provide precise time synchronisation alongside the IRIG-B outputs. Turbo Ring, Turbo Chain and RSTP redundancy, Modbus TCP and DNP3 protocol support, and IEC 61850-3 and IEEE 1613 compliance make it suited to mission-critical substation automation networks.

Features

- IRIG-B time signal output on serial ports for precise time synchronisation
- Hardware-based IEEE 1588v2 PTP support
- RS-232, RS-422 and RS-485 supported on all 8 serial ports
- Dual redundant power inputs with reverse polarity protection
- Turbo Ring, Turbo Chain and RSTP network redundancy
- Modbus TCP and DNP3 protocol support
- HTTPS/SSL, SSH, RADIUS and TACACS+ security
- Designed for power substations (IEC 61850-3, IEEE 1613)
- Wide -40 to 85°C operating temperature range

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 8 x RS-232/422/485 serial ports, DB9 female
- 2 x 10/100BaseT(X) RJ45 Ethernet ports
- IRIG-B: 8 x PWM/PPS output (DB9), 1 x PWM/PPS output (BNC), 1 x PWM input (BNC)
- IEEE 1588v2 PTP (hardware-based), NTP and SNTP time management
- Baudrate 50 bps to 921.6 kbps, non-standard baudrates supported
- Serial isolation 2 kV, serial surge protection 4 kV
- Dual power inputs: 100 to 240 VAC / 100 to 250 VDC, reverse polarity protection
- Operating temperature -40 to 85°C, humidity 5 to 95% non-condensing
- 19-inch rack mount, metal housing, 457 x 32 x 330 mm, 5.15 kg
- Compliance: IEC 61850-3, IEEE 1613, EN 61010-2-201, UL 61010-2-201
- MTBF 213,025 hrs (Telcordia SR332)

FAQs

Q: What power supply does the NPort S9650I-8B-2HV-IRIG-T use?
A: It has two power inputs that accept 100 to 240 VAC or 100 to 250 VDC, with reverse polarity protection.

Q: How many serial ports does it have and which interfaces are supported?
A: It has 8 DB9 female serial ports, each supporting RS-232, RS-422 or RS-485.

Q: What IRIG-B connections are provided?
A: It provides 8 PWM/PPS outputs on the DB9 serial ports, 1 PWM/PPS output on BNC and 1 PWM input on BNC.

Q: Is it suitable for power substation environments?
A: Yes. It is IEC 61850-3 and IEEE 1613 compliant and operates from -40 to 85°C.

Q: Which industrial protocols and operation modes does it support?
A: It supports Modbus TCP and DNP3 TCP, plus Real COM, RFC2217, TCP Client, TCP Server and UDP modes on the serial ports.

Q: Which network redundancy options are available?
A: It supports RSTP, Turbo Ring v1, Turbo Ring v2 and Turbo Chain across its two Ethernet ports.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
