Moxa NPort S9650I-8-2HV-MSC-T | NPort S9650I 8-Port RS-232/422/485 Device Server, MM SC Fibre, HV

Moxa NPort S9650I-8-2HV-MSC-T | NPort S9650I 8-Port RS-232/422/485 Device Server, MM SC Fibre, HV

Authorised Moxa Partner

NPort S9650I-8-2HV-MSC-T

Stock Status: Enquire

Request Quote
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

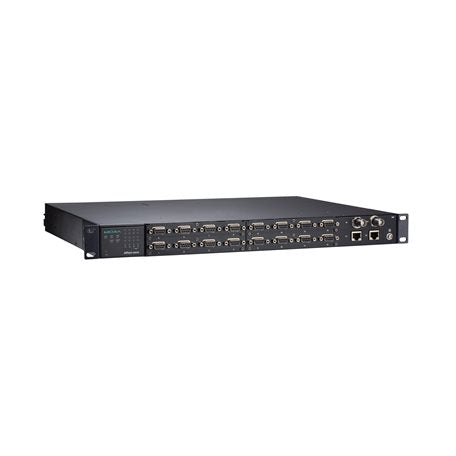

The Moxa NPort S9650I-8-2HV-MSC-T is a rugged 19-inch rack-mount serial device server with 8 RS-232/422/485 ports, designed for power substation and utility automation. It combines two 10/100BaseT(X) RJ45 ports with a 2-port multi-mode SC fibre Ethernet module, dual high-voltage power inputs (88-300 VDC / 85-264 VAC) and an extended -40 to 85 C operating range.

Hardware-based IEEE 1588v2 PTP, IEC 61850 MMS, Modbus and DNP3 gateway support, plus Turbo Ring, Turbo Chain and RSTP redundancy make it suited to power SCADA and critical infrastructure networks. The unit is IEC 61850-3 and IEEE 1613 certified, with 2 kV serial isolation and 4 kV serial surge protection for harsh electrical environments.

Features

- IEC 61850 MMS support for power SCADA monitoring and maintenance
- Modbus TCP and DNP3 protocol gateway support
- IEEE 1588v2 hardware-based PTP time synchronisation, plus NTP/SNTP and IRIG-B
- Turbo Ring v1/v2, Turbo Chain and RSTP network redundancy
- Dual wide-range HV power inputs with reverse polarity protection
- Operation modes including Real COM, RFC2217, TCP Client/Server and UDP
- Security via HTTPS/SSL, SSH, RADIUS and TACACS+
- Built-in watchdog timer, buzzer and RTC for alerts and automatic reboot

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 8 x RS-232/422/485 serial ports, DB9 male
- 2 x 10/100BaseT(X) RJ45 ports
- 2 x 100BaseFX multi-mode SC fibre ports (OM1 50/125 um, typically 4 km at 1300 nm)
- Baudrate 50 bps to 921.6 kbps, including non-standard baudrates
- Serial isolation 2 kV, serial surge protection 4 kV
- Dual power inputs, 88-300 VDC / 85-264 VAC (HV)
- Operating temperature -40 to 85 C
- Metal housing, 19-inch rack mounting
- Dimensions 457 x 32 x 330 mm, weight 5.15 kg
- IEC 61850-3 and IEEE 1613 certified
- MTBF 220,944 hrs (Telcordia SR332)
- 5-year warranty

FAQs

Q: What serial interfaces does the NPort S9650I-8-2HV-MSC-T support?
A: It provides 8 DB9 male serial ports, each configurable as RS-232, RS-422 or RS-485, at baudrates from 50 bps to 921.6 kbps.

Q: What power input does this model accept?
A: This HV model has dual power inputs accepting 88-300 VDC or 85-264 VAC, with reverse polarity protection.

Q: What fibre type does the SC module use?
A: The 2-port 100BaseFX module uses multi-mode SC connectors over OM1 50/125 um fibre, with a typical distance of 4 km at 1300 nm.

Q: Is it suitable for power substation use?
A: Yes. It is certified to IEC 61850-3 and IEEE 1613, supports IEC 61850 MMS and IEEE 1588v2 hardware PTP, and operates from -40 to 85 C.

Q: Which industrial protocols and operation modes are supported?
A: It supports Modbus TCP server and DNP3 TCP outstation gateway functions, as well as Real COM, RFC2217, TCP Client, TCP Server and UDP serial operation modes.

Q: What network redundancy options are available?
A: The unit supports RSTP, Turbo Ring v1, Turbo Ring v2 and Turbo Chain across its Ethernet and fibre ports.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
