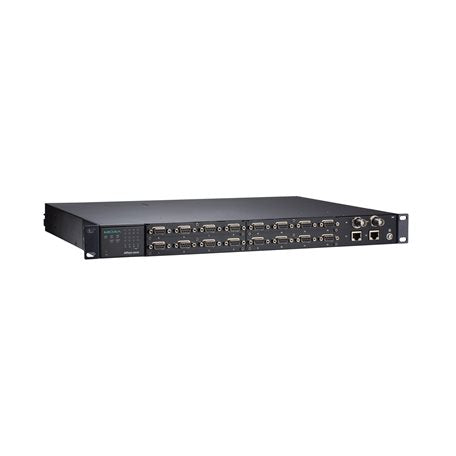

Moxa NPort S9650I-16F-2HV-SSC-T | NPort S9650I 16-Port Rugged Serial Device Server, ST Fiber, SC Module, -40 to

Authorised Moxa Partner

SKU:NPort S9650I-16F-2HV-SSC-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa NPort S9650I-16F-2HV-SSC-T is a 16-port RS-232/422/485 rugged serial device server built for power substation and industrial automation networks. The serial ports use multi-mode ST fibre connectors for long-distance, noise-immune connectivity, and the unit includes a 2-port single-mode SC fibre Ethernet module alongside two 10/100BaseT(X) Ethernet ports with IEEE 1588v2 support. It operates from -40 to 85°C and accepts 88-300 VDC or 85-264 VAC power.

Operation modes include Real COM, RFC2217, TCP Client, TCP Server, UDP, Modbus, DNP3 and DNP3 Raw Socket. Redundant Ethernet through Turbo Ring, Turbo Chain and RSTP, dual power inputs and secure management over HTTPS/SSL, SSH, RADIUS and TACACS+ make it suited to mission-critical serial-to-Ethernet deployments in 19-inch racks.

Features

- Rugged design for power substation and harsh industrial environments, IEC 61850-3 EMI immunity tested
- Fibre serial ports provide long-distance, noise-immune serial connectivity
- IEEE 1588v2 time synchronisation support on Ethernet ports
- Redundant Ethernet via Turbo Ring, Turbo Chain and RSTP
- Dual redundant universal AC/DC power inputs
- Operation modes include Real COM, RFC2217, TCP Client, TCP Server, UDP, Modbus and DNP3
- Secure management with HTTPS/SSL, SSH, RADIUS and TACACS+

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 16 serial ports: RS-232/422/485 via multi-mode fibre ST connectors
- 2 x 10/100BaseT(X) Ethernet ports with IEEE 1588v2 support
- 2-port 100BaseFX single-mode SC fibre Ethernet module
- Baudrate 50 bps to 921.6 kbps, non-standard baudrates supported
- Data bits 5/6/7/8; stop bits 1/1.5/2; parity None/Even/Odd/Space/Mark
- Flow control: None, RTS/CTS, XON/XOFF
- Serial isolation 2 kV; surge protection 4 kV
- ADDC for RS-485, 1 kΩ/150 kΩ pull high/low, 120 Ω terminator
- Dual power inputs, 88-300 VDC / 85-264 VAC with reverse polarity protection
- Operating temperature -40 to 85°C
- Metal housing, 19-inch rack mounting, 457 x 32 x 330 mm, 5.15 kg
- RS-232 console port (RJ45)

FAQs

Q: What serial interfaces does the NPort S9650I-16F-2HV-SSC-T support?
A: Its 16 serial ports support RS-232, RS-422 and RS-485, connected through multi-mode fibre ST connectors.

Q: Does it support IEEE 1588v2 time synchronisation?
A: Yes. The two 10/100BaseT(X) Ethernet ports support IEEE 1588v2.

Q: What power input does this model accept?
A: It has dual power inputs accepting 88-300 VDC or 85-264 VAC, with reverse polarity protection.

Q: What is the operating temperature range?
A: This model is rated for -40 to 85°C operation.

Q: Which operation modes and protocols are available?
A: Real COM, RFC2217, TCP Client, TCP Server, UDP, Modbus, DNP3 and DNP3 Raw Socket modes are supported.

Q: What redundancy and security options are supported?
A: Network redundancy is provided by RSTP, Turbo Ring v1/v2 and Turbo Chain. Management security includes HTTPS/SSL, SSH, TACACS+ and RADIUS.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
