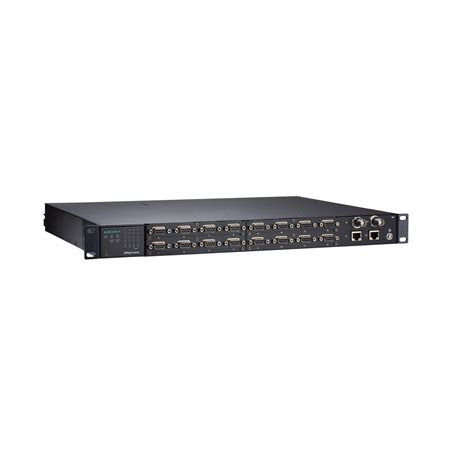

• Moxa NPort S9650I-16B-2HV-IRIG-T 16-port rugged device server with rack-mount black metal chassis
1 1

Moxa

Moxa NPort S9650I-16B-2HV-IRIG-T | NPort S9650I 16-Port Serial Device Server, IRIG-B, HV

Moxa NPort S9650I-16B-2HV-IRIG-T | NPort S9650I 16-Port Serial Device Server, IRIG-B, HV

Authorised Moxa Partner

NPort S9650I-16B-2HV-IRIG-T

Stock Status: Enquire

Request Quote
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The NPort S9650I-16B-2HV-IRIG-T is a 16-port RS-232/422/485 serial device server with an integrated managed Ethernet switch, built for power substation environments. It provides an IRIG-B BNC module with IRIG-B signal output on the serial ports, 2 x 10/100BaseT(X) RJ45 ports with IEEE 1588v2 support, and an extended -40 to 85°C operating range. This high-voltage model accepts 88 to 300 VDC or 85 to 264 VAC power input.

It is compliant with IEC 61850-3 and IEEE 1613 and supports the IEC 61850 MMS protocol, Modbus and DNP3 gateway operation, and Real COM and TTY drivers for Windows and Linux. Ethernet redundancy with Turbo Ring/Chain and RSTP/STP, security features based on IEC 62443 and NERC CIP, and a galvanised steel housing with high surge protection and EMI resistance suit it to critical utility and energy networks.

Features

- IEC 61850-3 and IEEE 1613 compliant for power substations
- IEEE 1588v2 and IRIG-B time synchronisation
- IEC 61850 MMS protocol support
- Modbus and DNP3 protocol gateway support
- Ethernet redundancy with Turbo Ring/Chain and RSTP/STP
- Real COM and TTY drivers for Windows and Linux
- Security features based on IEC 62443 and NERC CIP
- Galvanised steel housing with high surge protection and EMI resistance

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 16 x RS-232/422/485 serial ports, DB9 female
- 2 x 10/100BaseT(X) RJ45 Ethernet ports with IEEE 1588v2
- IRIG-B BNC module with IRIG-B signal output on serial ports
- Baudrate: 50 bps to 921.6 kbps, supports non-standard baudrates
- Data bits: 5, 6, 7, 8
- Operation modes: Real COM, RFC2217, TCP Client, TCP Server, UDP, Modbus, DNP3, DNP3 Raw Socket
- Industrial protocols: Modbus TCP Server (Slave), DNP3 TCP Outstation
- Time management: NTP Server/Client, SNTP, IEEE 1588v2 PTP (hardware-based), IRIG-B
- Magnetic isolation protection: 1.5 kV (built-in)
- Alarm contact: resistive load 1 A @ 24 VDC
- Power input: 88 to 300 VDC or 85 to 264 VAC (HV model)
- Operating temperature: -40 to 85°C
- Compliance: IEC 61850-3 and IEEE 1613

FAQs

Q: What does the IRIG-B module do on this model?
A: The IRIG-B BNC module provides IRIG-B time synchronisation, and the IRIG-B signal is output on the serial ports. The unit also supports hardware-based IEEE 1588v2 PTP, NTP and SNTP.

Q: What power input does the NPort S9650I-16B-2HV-IRIG-T accept?
A: This is the high-voltage (HV) variant, accepting 88 to 300 VDC or 85 to 264 VAC.

Q: Which serial standards and connectors are supported?
A: All 16 ports support RS-232, RS-422 and RS-485 using DB9 female connectors, with baudrates from 50 bps to 921.6 kbps.

Q: Is it suitable for power substation use?
A: Yes. It is compliant with IEC 61850-3 and IEEE 1613, supports IEC 61850 MMS, and operates from -40 to 85°C.

Q: Can it work as a Modbus or DNP3 gateway?
A: Yes. It supports Modbus TCP Server (Slave) and DNP3 TCP Outstation, along with Modbus and DNP3 operation modes on the serial ports.

Q: How does the unit connect to a host PC or SCADA system?
A: It provides 2 x 10/100BaseT(X) RJ45 Ethernet ports. Real COM and TTY drivers are available for Windows and Linux, and it also supports TCP Client, TCP Server, UDP and RFC2217 modes.
