Moxa NPort S9450I-2S-SC-HV-T | NPort S9450I 4-Port RS-232/422/485 Device Server, 2x SC SM, HV, -40-85°C

Authorised Moxa Partner

SKU:NPort S9450I-2S-SC-HV-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

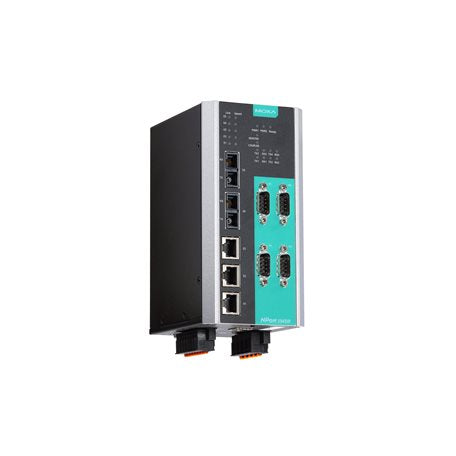

The Moxa NPort S9450I-2S-SC-HV-T is a rugged 4-port RS-232/422/485 serial device server with an integrated Ethernet switch, three 10/100BaseT(X) RJ45 ports and two single-mode 100BaseFX fibre ports with SC connectors. It connects serial devices to IP networks in substations, factory floors and other harsh industrial sites, and is built for the -40 to 85°C operating range.

This high-voltage variant accepts a wide-range 88 to 300 VDC or 85 to 264 VAC power input, so it can run directly from AC mains or DC supplies common in utility installations. Operation modes include Real COM, RFC2217, TCP Client, TCP Server, UDP, Modbus and DNP3, and it adds 1.5 kV built-in magnetic isolation, two digital inputs and two alarm contact channels.

Features

- Rugged design for harsh environments
- Integrated Ethernet switch functionality with fibre and copper ports
- Supports Modbus and DNP3 serial-to-Ethernet protocols
- Wide-range, high-voltage AC/DC power input
- Real COM, RFC2217, TCP Client, TCP Server and UDP operation modes
- Built-in 1.5 kV magnetic isolation protection

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 4 x RS-232/422/485 serial ports (DB9 male)
- Serial baudrate: 50 bps to 921.6 kbps
- 3 x 10/100BaseT(X) ports (RJ45)
- 2 x 100BaseFX single-mode fibre ports (SC connector)
- Magnetic isolation protection: 1.5 kV (built-in)
- Power input: 88 to 300 VDC or 85 to 264 VAC
- 2 digital input channels
- 2 alarm contact channels (resistive load: 1 A @ 24 VDC)
- Switch properties: 64 VLANs max, VID 1 to 4094, 4 priority queues, 256 IGMP groups
- Operating temperature: -40 to 85°C

FAQs

Q: What power input does the NPort S9450I-2S-SC-HV-T accept?
A: It accepts a wide-range 88 to 300 VDC or 85 to 264 VAC power input, which suits AC mains and high-voltage DC supplies.

Q: What fibre type and connectors does this model use?
A: It has two 100BaseFX single-mode fibre ports with SC connectors.

Q: What serial interfaces does it support?
A: It provides four DB9 male serial ports that support RS-232, RS-422 and RS-485, with baudrates from 50 bps to 921.6 kbps.

Q: Which operation modes and protocols are supported?
A: Supported modes are Real COM, RFC2217, TCP Client, TCP Server, UDP, Modbus, DNP3 and DNP3 Raw Socket.

Q: Can it be used in extreme temperatures?
A: Yes. The -T variant is rated for operation from -40 to 85°C.

Q: Does it include Ethernet switching?
A: Yes. It has an integrated switch with three 10/100BaseT(X) RJ45 ports and two fibre ports, and supports up to 64 VLANs, 4 priority queues and 256 IGMP groups.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
