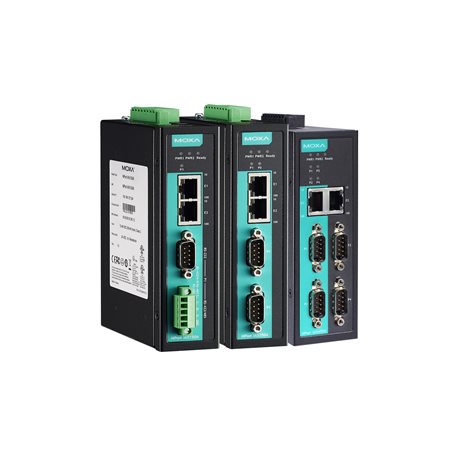

Moxa NPort IA5450AI | NPort IA5000A 4-Port RS-232/422/485 Device Server, 0-60°C

Authorised Moxa Partner

SKU:NPort IA5450AI

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The NPort IA5450AI is a 4-port RS-232/422/485 industrial device server that connects serial devices to Ethernet networks. It provides serial, LAN and power surge protection with 2 kV isolation, and two 10/100BaseT(X) Ethernet ports sharing a single IP address. This is the standard temperature model, rated for 0 to 60°C operation.

Operation modes include Real COM, TCP Server, TCP Client and UDP, making it suitable for industrial automation and remote serial device management. Built-in magnetic isolation on the Ethernet ports and auto MDI/MDI-X connection simplify deployment in electrically noisy plant environments.

Features

- Industrial automation device server for connecting serial devices to Ethernet
- Serial, LAN and power surge protection
- 2 kV isolation protection
- Dual Ethernet ports with a single IP address
- Standard 0 to 60°C temperature model

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 4 x RS-232/422/485 serial ports
- 2 x 10/100BaseT(X) Ethernet ports (RJ45), single IP address supported
- Auto MDI/MDI-X connection
- 1.5 kV built-in magnetic isolation on Ethernet ports
- 2 kV serial isolation protection
- Serial, LAN and power surge protection
- Operating temperature 0 to 60°C
- Operation modes: Real COM, TCP Server, TCP Client, UDP

FAQs

Q: How many serial ports does the NPort IA5450AI have?
A: It provides 4 serial ports, each supporting RS-232, RS-422 and RS-485.

Q: What operating temperature range does this model support?
A: This is the standard temperature model, rated for 0 to 60°C. The wide-temperature -T variant covers -40 to 75°C.

Q: Does it offer electrical isolation and surge protection?
A: Yes. It includes 2 kV serial isolation, 1.5 kV magnetic isolation on the Ethernet ports, and serial, LAN and power surge protection.

Q: What operation modes are supported?
A: Real COM, TCP Server, TCP Client and UDP modes are supported.

Q: Can both Ethernet ports share one IP address?
A: Yes. The two 10/100BaseT(X) Ethernet ports support operation with a single IP address.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
