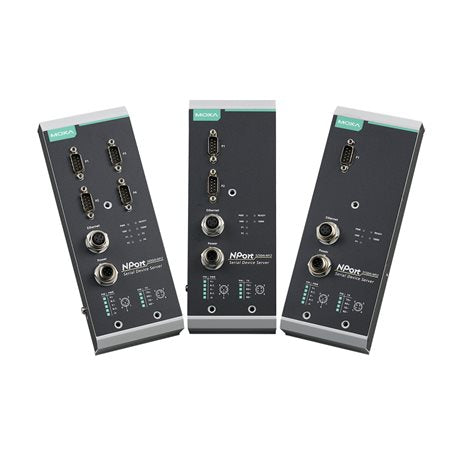

• Three Moxa NPort 5450AI-M12-T 4-port RS-232/422/485 device servers
1 1

Moxa

Moxa NPort 5450AI-M12-T | 4-Port RS-232/422/485 Server, 12-48VDC

Moxa NPort 5450AI-M12-T | 4-Port RS-232/422/485 Server, 12-48VDC

Authorised Moxa Partner

NPort 5450AI-M12-T

Stock Status: Enquire

Request Quote
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The Moxa NPort 5450AI-M12-T is a 4-port RS-232/422/485 serial device server that connects serial devices to an Ethernet network through M12 connectors. Built for rolling stock and railway use under EN 50155, it runs from a 12 to 48 VDC supply and operates across a wide -40 to 75°C temperature range. This variant does not include PCB conformal coating.

Each DB9 serial port is software-selectable between RS-232, RS-422 and RS-485, and the unit includes Windows Real COM, Linux Real TTY, Fixed TTY and Android API drivers for flexible integration. A built-in watchdog timer, buzzer and real-time clock support dependable unattended operation in vibration-prone environments.

Features

- Suitable for rolling stock railway applications (EN 50155)
- M12 connectors for Ethernet and power, for vibration-prone environments
- Supports RS-232, RS-422 and RS-485 on each port
- Windows Real COM, Linux Real TTY, Fixed TTY and Android API drivers
- Built-in buzzer and RTC with alert triggers (warm start, cold start, password change)
- Built-in watchdog timer for automatic reboot
- Wide operating temperature range of -40 to 75°C
- Configuration via Telnet console, web console (HTTP/HTTPS) or Windows utility

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 4 x RS-232/422/485 serial ports (DB9 male)
- 1 x 10/100BaseT(X) Ethernet port (M12 D-coded 4-pin female)
- Baudrate: 50 to 921.6k bps (standard rates)
- Flow control: RTS/CTS, DTR/DSR (RS-232 only), XON/XOFF
- RS-485 data direction control: ADDC (automatic)
- Input voltage: 12 to 48 VDC (EN 50155 compliant on 24/48 VDC)
- Input current: 440 mA @ 12 VDC
- Power connector: M12 A-coded 5-pin male
- Operating temperature: -40 to 75°C
- Storage temperature: -40 to 85°C
- Humidity: 5 to 95% (non-condensing)
- Dimensions (H x W x D): 80 x 216.6 x 52.9 mm
- Weight: 686 g
- MTBF: 467,777 hrs (Telcordia TR/SR)
- Railway standard: EN 50121-4
- Safety: UL 60950-1
- EMI: CISPR 32, FCC Part 15B Class A
- Management: SNMPv1/v2c, HTTP/HTTPS, Telnet, DHCP, LLDP

FAQs

Q: How many serial ports does the NPort 5450AI-M12-T have?
A: It has four DB9 male serial ports, each supporting RS-232, RS-422 and RS-485.

Q: What power input does it accept?
A: It accepts 12 to 48 VDC through an M12 A-coded 5-pin male connector, and is EN 50155 compliant on 24/48 VDC.

Q: What temperature range does the -T model support?
A: The -T model operates from -40 to 75°C, suiting harsh railway and industrial environments.

Q: What type of Ethernet connector does it use?
A: It has one 10/100BaseT(X) Ethernet port with an M12 D-coded 4-pin female connector.

Q: Which operating systems are supported for virtual COM ports?
A: Windows Real COM drivers cover Windows 95 through Windows 10 and 2012 R2, as well as Embedded CE and XP Embedded. Linux Real TTY, several Fixed TTY drivers and an Android API are also available.

Q: Does this model have PCB conformal coating?
A: No. This variant does not include PCB conformal coating.
