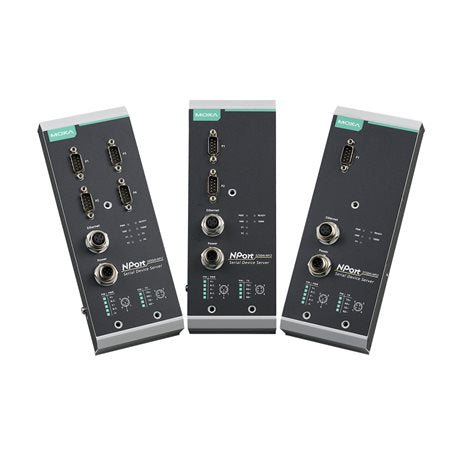

Moxa NPort 5450AI-M12-CT | NPort 5000AI-M12 4-Port Serial Device Server, Conformal Coating

Authorised Moxa Partner

SKU:NPort 5450AI-M12-CT

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The NPort 5450AI-M12-CT is a railway-grade 4-port RS-232/422/485 serial device server that connects serial equipment to an Ethernet network. M12 connectors handle both Ethernet and power, and the 4-port model accepts 12 to 48 VDC input with a PCB conformal coating, operating from -25 to 55°C. It complies with EN 50121-4 and all mandatory EN 50155 test items, making it suited to rolling stock and trackside deployments.

Each DB9 male serial port offers 2 kV isolation and software-selectable RS-232, RS-422 or RS-485 mode with automatic data direction control. Real COM and Real TTY drivers for Windows and Linux, along with standard TCP and UDP operation modes, allow existing serial applications to run over Ethernet. Web-based 3-step configuration, SNMP monitoring and trap or email alerts simplify setup and ongoing management.

Features

- Railway-grade design complying with EN 50121-4 and all mandatory EN 50155 test items
- M12 connectors for Ethernet and power with an IP40 metal housing
- PCB conformal coating for protection in harsh environments
- 2 kV isolation protects serial signals
- Speedy 3-step web-based configuration
- Real COM and Real TTY drivers for Windows and Linux
- COM port grouping and UDP multicast applications
- Standard TCP/IP interface with versatile TCP and UDP operation modes
- SNMP monitoring with trap and email alerts
- Built-in watchdog timer, buzzer and RTC

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 4 x RS-232/422/485 serial ports, DB9 male
- 1 x 10/100BaseT(X) Ethernet port, M12 D-coded 4-pin female
- Power input: 12 to 48 VDC, M12 A-coded 5-pin male
- Input current: 440 mA @ 12 VDC
- Serial isolation: 2 kV
- Baudrate: 50 bps to 921.6 kbps
- Flow control: RTS/CTS, DTR/DSR (RS-232 only), XON/XOFF
- Protection: PCB conformal coating
- Operating temperature: -25 to 55°C
- Storage temperature: -40 to 85°C
- Humidity: 5 to 95% non-condensing
- Dimensions: 80 x 216.6 x 52.9 mm
- Weight: 686 g
- Standards: EN 50121-4, EN 50155, EN 55032/24, FCC Part 15B Class A, UL 60950-1
- MTBF: 467,777 hrs (Telcordia)
- Package: NPort 5000AI-M12 device server, quick installation guide, warranty card

FAQs

Q: What serial interfaces does the NPort 5450AI-M12-CT support?
A: Each of the 4 DB9 male serial ports supports RS-232, RS-422 and RS-485, with RS-485 automatic data direction control.

Q: What power input does this model use?
A: It accepts 12 to 48 VDC through an M12 A-coded 5-pin connector. It is EN 50155 compliant on 24 and 48 VDC.

Q: How does the -CT model differ from the standard NPort 5450AI-M12?
A: The -CT model adds PCB conformal coating for extra protection against moisture and contaminants, with an operating range of -25 to 55°C.

Q: Is it suitable for railway installations?
A: Yes. It complies with EN 50121-4 and all mandatory EN 50155 test items and uses M12 connectors for vibration-resistant cabling.

Q: Which operating systems are supported for virtual COM ports?
A: Real COM drivers cover Windows 95 through Windows 10 and Embedded CE, and Real TTY drivers cover Linux kernels 2.4.x to 5.x. Fixed TTY drivers are also available for several UNIX systems and macOS.

Q: How is the device managed?
A: Through a Telnet console, a web console over HTTP or HTTPS, or the Windows utility, with SNMP v1/v2c monitoring for alerts.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
