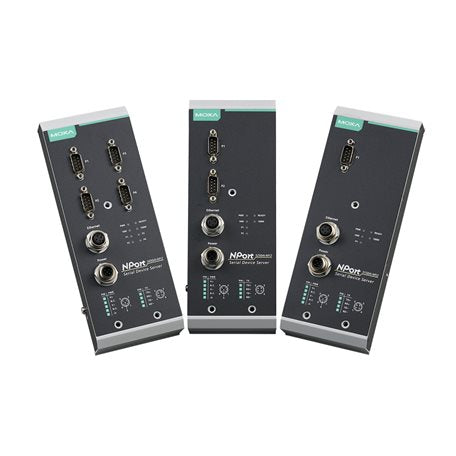

Moxa NPort 5250AI-M12-CT | 2-Port RS-232/422/485 Serial Device Server, M12

Authorised Moxa Partner

SKU:NPort 5250AI-M12-CT

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa NPort 5250AI-M12-CT is a 2-port RS-232/422/485 serial device server with M12 connectors for both Ethernet and power, designed for rolling stock and railway deployments. This CT variant adds PCB conformal coating and operates across a -25 to 55°C temperature range, protecting the electronics in harsh, vibration-prone environments.

The unit connects serial devices to a 10/100BaseT(X) network through an M12 Ethernet port and accepts 12 to 48 VDC via an M12 A-coded 5-pin power connector. It complies with EN 50121-4 and, on 24/48 VDC, EN 50155, and includes a built-in watchdog timer, buzzer and real-time clock. Drivers are available for Windows, Linux and macOS, and setup is handled through a simple 3-step web-based configuration.

Features

- M12 connectors for vibration-resistant Ethernet and power connections
- Conformal coating protects the PCB against harsh environments
- EN 50155 and EN 50121-4 compliance for railway applications
- 3-step web-based configuration for serial-to-Ethernet setup
- Built-in buzzer and real-time clock for alerts

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 2 x RS-232/422/485 serial ports
- 10/100BaseT(X) Ethernet with M12 connector
- Power input: 12 to 48 VDC via M12 A-coded 5-pin male connector
- Power consumption: 360 mA @ 12 VDC
- Operating temperature: -25 to 55°C
- PCB conformal coating (CT variant)
- Dimensions: 80 x 216.6 x 52.9 mm
- Weight: 686 g
- Built-in watchdog timer (WDT), buzzer and RTC
- Railway compliance: EN 50121-4; EN 50155 on 24/48 VDC
- MTBF: 639,622 hrs
- Drivers for Windows, Linux, macOS

FAQs

Q: How many serial ports does the NPort 5250AI-M12-CT have?
A: It provides 2 serial ports, each supporting RS-232, RS-422 and RS-485 operation.

Q: What does the CT suffix mean?
A: The CT suffix indicates PCB conformal coating, which protects the board against moisture, dust and other harsh conditions.

Q: What power input does it accept?
A: It accepts 12 to 48 VDC through an M12 A-coded 5-pin male power connector.

Q: Is it suitable for railway applications?
A: Yes. It is built for rolling stock use and complies with EN 50121-4, and with EN 50155 on 24/48 VDC power.

Q: What is the operating temperature range?
A: The unit operates from -25 to 55°C.

Q: Which operating systems are supported?
A: Drivers are available for Windows, Linux and macOS.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
