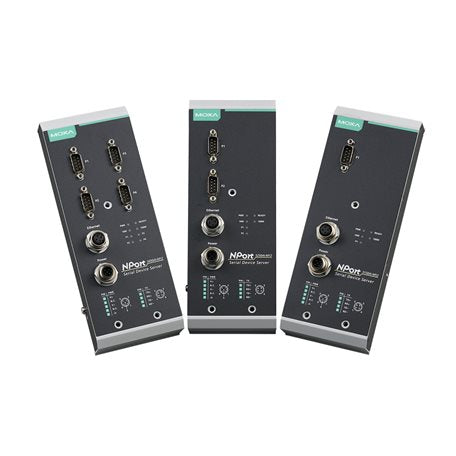

• Three Moxa NPort 5250AI-M12 industrial serial device servers with silver edges
1 1

Moxa

Moxa NPort 5250AI-M12 | 2-Port RS-232/422/485 Serial Device Server

Moxa NPort 5250AI-M12 | 2-Port RS-232/422/485 Serial Device Server

Authorised Moxa Partner

NPort 5250AI-M12

Stock Status: Enquire

Request Quote
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The NPort 5250AI-M12 is a rugged 2-port RS-232/422/485 serial device server that connects serial equipment to an Ethernet network. It is built for rolling stock and wayside rail deployments, with M12 connectors for Ethernet and power, 2 kV serial isolation and a -25 to 55°C operating range. This standard model has no conformal coating.

The unit complies with EN 50121-4 and the essential sections of EN 50155 on 24/48 VDC supplies, and runs from a 12 to 48 VDC input. A built-in watchdog timer, buzzer and real-time clock support dependable unattended operation, while HTTPS and SNMPv3 support help secure device management. Configuration is handled through a web console, with Windows and Linux driver support for serial port mapping.

Features

- Compliant with EN 50121-4 and essential sections of EN 50155 (temperature, power input, surge, ESD, vibration)
- M12 connectors for Ethernet and power for shock and vibration resistance
- Rugged metal housing
- 2 kV isolation protection for serial signals
- Built-in watchdog timer, buzzer and real-time clock
- Web-based configuration with Windows and Linux driver support
- Security features including HTTPS (TLS 1.2) and SNMPv3

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 2 x RS-232/422/485 serial ports (DB9 male), software selectable
- 1 x 10/100 Mbps Ethernet port (M12 connector)
- 2 kV serial isolation
- Baudrate: 50 bps to 921.6 kbps
- Flow control: RTS/CTS and DTR/DSR (RS-232 only), XON/XOFF
- RS-485 data direction control: ADDC (automatic data direction control)
- Power input: 12 to 48 VDC via M12 A-coded 5-pin male connector
- Input current: 360 mA @ 12 VDC
- Operating temperature: -25 to 55°C (-13 to 131°F)
- Storage temperature: -40 to 85°C (-40 to 185°F)
- Dimensions: 80 x 216.6 x 52.9 mm (3.15 x 8.53 x 2.08 in)
- Weight: 686 g (1.51 lb)
- Standards: EN 50121-4, EN 50155 (24/48 VDC), UL 60950-1, IEC 60068-2-6 vibration
- MTBF: 639,622 hrs

FAQs

Q: What serial interfaces does the NPort 5250AI-M12 support?
A: Each of the 2 DB9 male serial ports supports RS-232, RS-422 and RS-485, selectable in software. Baudrates range from 50 bps to 921.6 kbps.

Q: What power input does it use?
A: It accepts 12 to 48 VDC through an M12 A-coded 5-pin male connector. EN 50155 compliance applies on 24/48 VDC supplies.

Q: Is this model suitable for railway applications?
A: Yes. It complies with EN 50121-4 and the essential sections of EN 50155, and uses M12 connectors and a rugged metal housing for shock and vibration resistance.

Q: What is the operating temperature range?
A: This standard model operates from -25 to 55°C and does not have conformal coating.

Q: How is the NPort 5250AI-M12 configured and secured?
A: It is configured through a web console, with Windows and Linux drivers available for serial port mapping. Security features include HTTPS (TLS 1.2) and SNMPv3.

Q: What type of Ethernet port does it have?
A: It has one 10/100 Mbps Ethernet port with an M12 connector, suited to vibration-prone rolling stock environments.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
