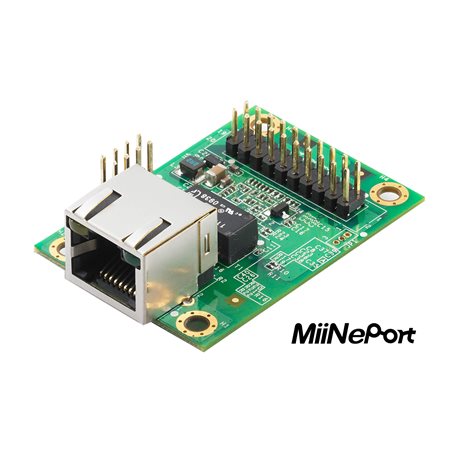

The Moxa MiiNePort E3-H is a compact embedded serial-to-Ethernet device server module for adding network connectivity to TTL serial devices. It supplies a pin header interface, a single TTL serial port with a 50 bps to 921.6 kbps baudrate, and a 10/100BaseT(X) RJ45 port with IEEE 802.3af PoE pass-through. This module-only version (no evaluation board) is rated for 0 to 55°C operation and runs from a 3.3 to 5 VDC input.

Built on a second-generation MiiNe SoC with a 32-bit Arm core, 2 MB Flash and 4 MB SDRAM, the E3-H supports Real COM, TCP Server, TCP Client, UDP, RFC2217 and Ethernet Modem operation modes. MiiNePort NetEZ technology (EZPower, EZPage, SCM and AutoCFG) simplifies integration, while Windows Real COM, Linux Real TTY, fixed TTY and Android API support covers a wide range of host environments. Four software-configurable DIO channels and a 12 g footprint make it well suited to space-constrained OEM designs.

Features

- IEEE 802.3af compliant PoE pass-through
- Second-generation MiiNe SoC
- Variety of operation modes for specific application requirements
- Green design with extremely low power consumption
- MiiNePort NetEZ technology (EZPower, EZPage, SCM, AutoCFG) for easy integration
- Highly compact embedded device module
- Web console (HTTP) and Windows utility configuration
- Windows Real COM, Linux Real TTY, fixed TTY and Android API support
- Management via SNMPv1, DHCP, BOOTP, SMTP, Telnet, TFTP and Device Search Utility (DSU)

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 1 x TTL serial port, 50 bps to 921.6 kbps
- 1 x 10/100BaseT(X) RJ45 port, auto MDI/MDI-X, with IEEE 802.3af PoE pass-through
- 1.5 kV built-in magnetic isolation protection
- CPU: 32-bit Arm core
- Memory: 2 MB Flash, 4 MB SDRAM
- 4 software-configurable DIO channels
- Operation modes: Real COM, TCP Server, TCP Client, UDP, RFC2217, Ethernet Modem
- Data bits: 5, 6, 7, 8; stop bits: 1, 1.5, 2
- Parity: None, Even, Odd, Space, Mark
- Flow control: None, RTS/CTS, DTR/DSR, XON/XOFF
- Serial signals (TTL): TxD, RxD, RTS, CTS, DTR, DSR, DCD, RST, GND
- Input voltage: 3.3 to 5 VDC; input current: 157 mA @ 3.3 VDC
- Operating temperature: 0 to 55°C; storage temperature: -40 to 60°C
- Ambient relative humidity: 5 to 95% (non-condensing)
- Dimensions: 35 x 52.5 x 18 mm; weight: 12 g
- EMI: CISPR 32, FCC Part 15B Class B
- MTBF: 5,696,350 hrs (Telcordia SR332)

FAQs

Q: What type of serial interface does the MiiNePort E3-H provide?
A: It provides one TTL serial port with a baudrate range of 50 bps to 921.6 kbps, supporting TxD, RxD, RTS, CTS, DTR, DSR, DCD, RST and GND signals.

Q: Does the MiiNePort E3-H support PoE?
A: Yes. Its 10/100BaseT(X) RJ45 port supports IEEE 802.3af PoE pass-through.

Q: What operating temperature range does this model support?
A: The E3-H is rated for 0 to 55°C operation. It is the standard-temperature variant of the MiiNePort E3 series.

Q: What power input does the module require?
A: It runs from a 3.3 to 5 VDC input and draws 157 mA at 3.3 VDC.

Q: Does this SKU include an evaluation board?
A: No. This is the module only, supplied without an evaluation board.

Q: Which operation modes and drivers are supported?
A: Operation modes include Real COM, TCP Server, TCP Client, UDP, RFC2217 and Ethernet Modem. Drivers cover Windows Real COM, Linux Real TTY, several fixed TTY platforms and an Android API for Android 3.1.x and later.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
