Moxa MiiNePort E3 | Embedded Device Server, TTL, 10/100M, RJ45

Authorised Moxa Partner

SKU:MiiNePort E3

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

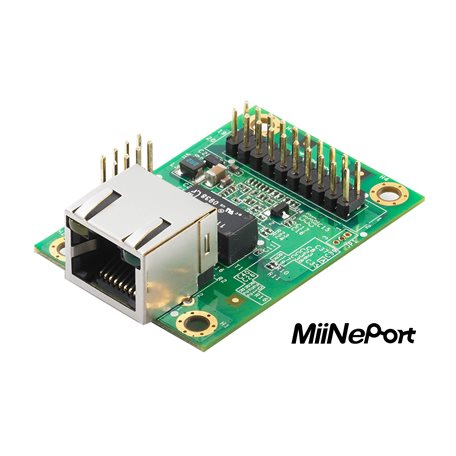

The Moxa MiiNePort E3 is an embedded serial-to-Ethernet device server module that adds network connectivity to TTL serial devices. This pin header module with on-board RJ45 connector provides a 10/100 Mbps Ethernet interface and supports serial baud rates from 50 bps to 230.4 kbps, making it well suited to OEM integration of legacy serial equipment onto IP networks over a 0 to 55°C operating range.

Built around a low-power 32-bit Arm core with Moxa's own UART technology, the MiiNePort E3 supports Real COM, TCP Server, TCP Client, UDP, RFC2217 and Ethernet Modem operation modes. Its compact 35 x 52.5 x 18 mm footprint and 3.3 to 5 VDC input make it easy to embed into space-constrained designs, and an Android API is available for Android 3.1.x and later.

Features

- Designed for serial-to-Ethernet applications
- Arm core with Moxa's own UART technology
- Operation modes: Real COM, TCP Server, TCP Client, UDP, RFC2217, Ethernet Modem
- Compact pin header module with on-board RJ45 connector for easy integration
- Low power consumption
- PoE pass-through

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 1 x TTL serial port
- 10/100 Mbps Ethernet, RJ45
- Baudrate: 50 bps to 230.4 kbps
- CPU: 32-bit Arm core
- Memory: 2 MB Flash, 4 MB SDRAM
- Input voltage: 3.3 to 5 VDC
- Input current: 157 mA @ 3.3 VDC
- Data bits 5/6/7/8; stop bits 1/1.5/2; parity None/Even/Odd/Space/Mark
- Flow control: None, RTS/CTS, DTR/DSR, XON/XOFF
- Serial signals: TxD, RxD, RTS, CTS, DTR, DSR, DCD, RST, GND
- Dimensions: 35 x 52.5 x 18 mm
- Weight: 12 g
- Operating temperature: 0 to 55°C
- Android API: Android 3.1.x and later

FAQs

Q: What type of serial interface does the MiiNePort E3 use?
A: It provides one TTL-level serial port with TxD, RxD, RTS, CTS, DTR, DSR, DCD, RST and GND signals, accessed through the pin header.

Q: What serial baud rates does it support?
A: The MiiNePort E3 supports baud rates from 50 bps up to 230.4 kbps, with 5 to 8 data bits, 1, 1.5 or 2 stop bits and a choice of parity settings.

Q: Which operation modes are available?
A: Real COM, TCP Server, TCP Client, UDP, RFC2217 and Ethernet Modem modes are supported, covering most serial-to-Ethernet integration scenarios.

Q: What power supply does the module need?
A: It runs from 3.3 to 5 VDC and draws 157 mA at 3.3 VDC.

Q: What is the operating temperature range?
A: This variant operates from 0 to 55°C, suitable for standard indoor embedded applications.

Q: Is the MiiNePort E3 suitable for OEM integration?
A: Yes. At 35 x 52.5 x 18 mm and 12 g, with a pin header interface and on-board RJ45, it is designed to be embedded into serial devices to give them Ethernet connectivity.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
