Moxa MiiNePort E2 | TTL Embedded Device Server, 4-Pin Header, 0-55°C

Authorised Moxa Partner

SKU:MiiNePort E2

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

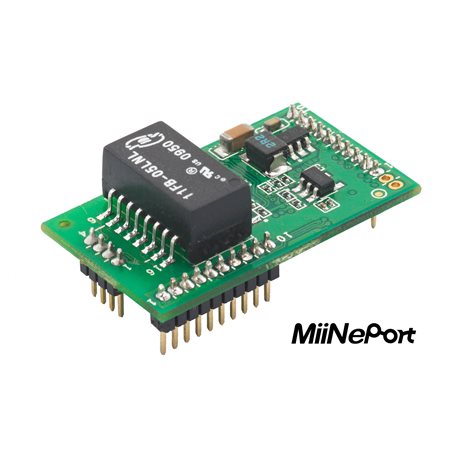

The MiiNePort E2 is a very small embedded device server module that adds 10/100 Ethernet connectivity to TTL serial devices. This variant uses a 4-pin header Ethernet interface with no RJ45 connector and is rated for 0 to 55°C operation, making it well suited to OEM designs where board space and connector choice matter.

A 32-bit Arm core with 2 MB flash and 4 MB SDRAM handles protocol conversion across Real COM, RFC2217, TCP Server, TCP Client, UDP and Ethernet Modem modes. Real COM and TTY drivers are available for Windows, Linux and macOS, with an Android API for mobile integration, and configuration is via web console or Windows utility.

Features

- Drop-in module measuring just 29 x 17 x 12.6 mm
- EZPower supports 3.3 to 5 VDC system power input
- NetEZ technology: EZPower, EZPage, SCM, AutoCFG and MCSC
- Operation modes include Real COM, RFC2217, TCP Server/Client, UDP and Ethernet Modem
- Real COM and TTY drivers for Windows, Linux and macOS, plus an Android API
- Web console and Windows utility configuration
- Low power consumption
- 5-year manufacturer warranty

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 1 x TTL serial port, 50 bps to 230.4 kbps
- 1 x 10/100BaseT(X) Ethernet via 4-pin pin header (no RJ45), auto MDI/MDI-X
- 1.5 kV built-in magnetic isolation
- 32-bit Arm core, 2 MB flash, 4 MB SDRAM
- 4 x software-configurable DIO channels
- Input voltage 3.3 to 5 VDC, 157 mA @ 3.3 VDC
- Data bits 5, 6, 7, 8; stop bits 1, 1.5, 2
- Parity: None, Even, Odd, Space, Mark
- Flow control: None, RTS/CTS, DTR/DSR, XON/XOFF
- Dimensions 29 x 17 x 12.6 mm, weight 5 g, drop-in module
- Operating temperature 0 to 55°C, humidity 5 to 95% non-condensing
- MTBF 5,696,350 hrs (Telcordia SR-332)
- RoHS, CRoHS, WEEE compliant

FAQs

Q: Does this MiiNePort E2 model have an RJ45 port?
A: No. This variant provides its 10/100BaseT(X) Ethernet connection through a 4-pin pin header rather than an RJ45 connector, so it is intended for integration onto a host board.

Q: What serial interface does it support?
A: It provides one TTL-level serial port with TxD, RxD, RTS, CTS, DTR, DSR, DCD and GND signals, at baud rates from 50 bps to 230.4 kbps.

Q: What power supply does the module need?
A: It runs from 3.3 to 5 VDC and draws 157 mA at 3.3 VDC.

Q: What operation modes are available?
A: Real COM, RFC2217, TCP Client, TCP Server, UDP, Ethernet Modem and MCSC are supported, so it can suit both legacy software and modern networked applications.

Q: What is the operating temperature range of this variant?
A: This model is rated for 0 to 55°C. It is a standard-temperature version, so check your deployment environment before selecting it.

Q: How is the module configured?
A: Configuration is done through the built-in web console (HTTP) or the Windows utility, and the Device Search Utility can locate units on the network.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
