Moxa MiiNePort E1-SDK | MiiNePort E1 Embedded Serial Device Server SDK, Evaluation Board

Authorised Moxa Partner

SKU:MiiNePort E1-SDK

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

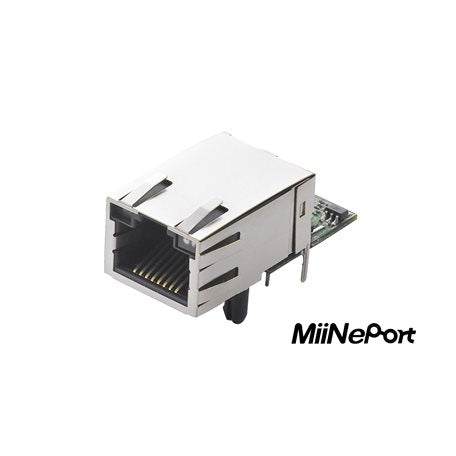

The MiiNePort E1-SDK is an embedded serial device server software development kit for engineers building custom serial-to-Ethernet products around the MiiNePort E1 series of 10/100 Mbps drop-in modules. The kit includes a MiiNePort E1 module with a TTL serial port and an evaluation board, supports baud rates from 50 bps to 921.6 kbps, and operates from 0 to 55 C. The Eclipse-based MiiNePort-IDE provides a source-level debugger and sample source code for TCP server, TCP client and UDP modes, so teams can develop and test their own firmware.

The module is built on Moxa's second-generation MiiNe SoC with a 32-bit Arm core, 2 MB Flash and 4 MB SDRAM, and draws a maximum of 195 mA at 3.3 VDC. NetEZ technology simplifies integration, and a mass production tool allows firmware to be uploaded easily once development is complete. Operation modes include Real COM, Ethernet Modem, TCP Client, TCP Server, UDP and RFC2217.

Features

- Eclipse-based integrated software development tool (MiiNePort-IDE)
- Source-level debugger
- Easy to build a proprietary SNMP/CLI console
- Sample source code for TCP server, TCP client and UDP serial-to-Ethernet applications
- Mass production tool for easy firmware upload
- Supports Real COM mode operation functions
- Extremely low power consumption, based on Moxa's second-generation MiiNe SoC
- NetEZ technology for easy integration

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 1 x serial port (TTL)
- 10/100BaseT(X) Ethernet, 8-pin RJ45, auto MDI/MDI-X
- Baudrate 50 bps to 921.6 kbps
- Data bits 5, 6, 7, 8; stop bits 1, 1.5, 2
- Parity: None, Even, Odd, Space, Mark
- Flow control: None, RTS/CTS, XON/XOFF
- 32-bit Arm core, 2 MB Flash, 4 MB SDRAM
- Input 3.3 VDC, 195 mA max
- Module size 33.9 x 16.25 x 13.5 mm, weight 9 g
- Evaluation board size 140 x 100 mm
- Operating temperature 0 to 55 C
- Ambient relative humidity 5 to 95% (non-condensing)
- 1.5 kV built-in magnetic isolation protection
- Operation modes: Real COM, Ethernet Modem, TCP Client, TCP Server, UDP, RFC2217
- Configuration: Web Console, Windows Utility, Telnet Console, Serial Console
- Package includes module, evaluation board, Ethernet crossover cable, null modem serial cable, USB cable, universal power adapter and quick installation guide

FAQs

Q: What is included in the MiiNePort E1-SDK?
A: The kit includes a MiiNePort E1 module, an evaluation board, an Ethernet crossover cable, a null modem serial cable, a USB cable, a universal power adapter with EU and US power cords, and a quick installation guide. The MiiNePort-IDE development tools are also provided.

Q: What development environment does the E1-SDK use?
A: It uses MiiNePort-IDE, an Eclipse-based integrated development tool with a source-level debugger and sample source code for TCP server, TCP client and UDP applications.

Q: What serial interface does the module provide?
A: The module provides one TTL serial port supporting baud rates from 50 bps to 921.6 kbps, with TxD, RxD, RTS, CTS, RST and GND signals.

Q: What power supply does the module require?
A: The module runs from 3.3 VDC and draws a maximum of 195 mA. The evaluation board is supplied with a universal power adapter.

Q: What temperature range is the module rated for?
A: The operating temperature range is 0 to 55 C. This is a standard-temperature module, so check the environment of your target application.

Q: Can I load my own firmware once development is finished?
A: Yes. The kit includes a mass production tool for easy firmware upload when moving from development to volume production.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
