Moxa MiiNePort E1-H-T | MiiNePort E1 Embedded Device Server, TTL, RJ45, -40 to 85°C

Authorised Moxa Partner

SKU:MiiNePort E1-H-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

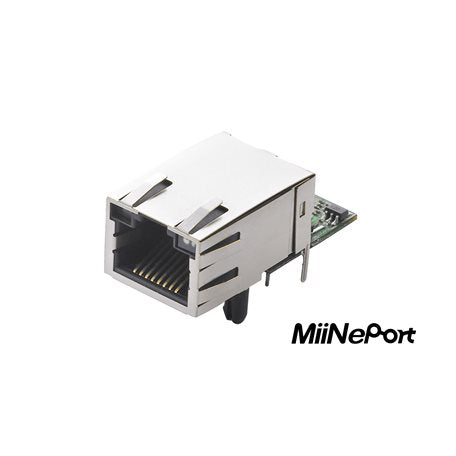

The Moxa MiiNePort E1-H-T is an embedded serial-to-Ethernet device server module for TTL devices, built as a drop-in module with an integrated RJ45 connector. This wide temperature variant is rated for -40 to 85°C operation and provides one TTL serial port supporting baud rates from 50 bps to 921.6 kbps, plus a 10/100 Mbps Ethernet interface for network-enabling serial equipment.

The module is the same size as a standard RJ45 connector and is built on Moxa's MiiNe system-on-chip with extremely low power consumption. NetEZ technology simplifies integration, and Real COM, RFC2217, TCP and UDP operation modes let manufacturers and integrators add Ethernet connectivity to industrial, medical and automation devices without a full redesign.

Features

- Same size as an RJ45 connector for compact designs
- Extremely low power consumption
- Built on MiiNe, Moxa's second-generation SoC
- NetEZ technology makes integration easy
- Designed for 1- or 2-port serial-to-Ethernet applications
- Uses Moxa's own UART technology
- Wide -40 to 85°C operating temperature range

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 1 x TTL serial port, 50 bps to 921.6 kbps
- 10/100 Mbps Ethernet with RJ45 connector
- Operating temperature: -40 to 85°C
- Dimensions: 33.9 x 16.25 x 13.5 mm
- Weight: 9 g
- Form factor: drop-in module
- SoC: MiiNe, 32-bit Arm7 core, 2 MB Flash and 4 MB SDRAM
- Operation modes: Real COM, RFC2217, TCP, UDP
- EMC/EMI: EN 55032/24, CISPR 32, FCC Part 15B Class B
- ESD immunity: IEC 61000-4-2, contact 6 kV, air 8 kV
- MTBF: 5,515,294 hrs

FAQs

Q: What does the -T suffix on the MiiNePort E1-H-T mean?
A: The -T denotes the wide temperature variant, rated for operation from -40 to 85°C, suited to harsh industrial environments.

Q: What type of serial interface does this module use?
A: It provides one TTL-level serial port with baud rates from 50 bps to 921.6 kbps, intended for connection to TTL devices rather than RS-232/422/485 line drivers.

Q: Which operation modes are supported?
A: The module supports Real COM, RFC2217, TCP and UDP operation modes.

Q: How large is the MiiNePort E1-H-T?
A: It measures 33.9 x 16.25 x 13.5 mm and weighs 9 g, making it about the same size as an RJ45 connector.

Q: What Ethernet speed does it support?
A: It provides a 10/100 Mbps Ethernet interface through an integrated RJ45 connector.

Q: Is the MiiNePort E1-H-T a standalone device server?
A: No. It is a drop-in embedded module intended to be integrated into your own product or board to add serial-to-Ethernet connectivity.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
