Moxa MiiNePort E1-H | MiiNePort E1 Embedded Device Server, TTL, 10/100M, 0-55°C

Authorised Moxa Partner

SKU:MiiNePort E1-H

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The MiiNePort E1-H is a compact embedded device server that adds serial-to-Ethernet connectivity to TTL serial products. It pairs one TTL serial port with a 10/100BaseT(X) RJ45 port, supports serial baud rates from 50 bps to 921.6 kbps, and is the standard temperature version rated for 0 to 55°C operation (the E1-H-T covers -40 to 85°C).

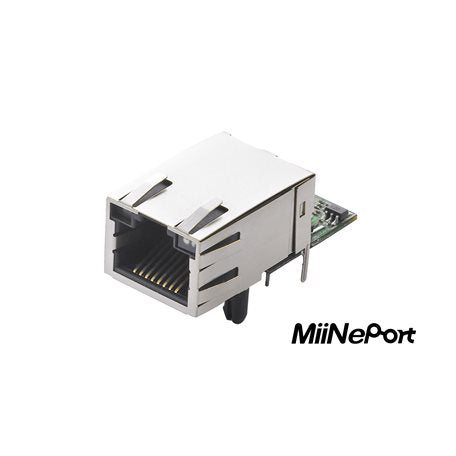

At 33.9 x 16.25 x 13.5 mm, the module is about the same size as an RJ45 connector, making it easy to fit inside space-constrained equipment. It is built around Moxa's MiiNe second-generation SoC with a 32-bit Arm core, 2 MB Flash and 4 MB SDRAM, and supports Real COM, RFC2217, TCP Client, TCP Server and UDP operation modes. Moxa's NetEZ functions simplify integration and configuration for OEMs and equipment manufacturers.

Features

- RJ45-sized form factor for easy integration into compact designs
- Extremely low power consumption
- Built on Moxa's MiiNe second-generation SoC
- NetEZ technology simplifies integration and configuration
- NetEZ functions: ExTrigger, Serial Command Mode, AutoCFG, MCSC
- Multiple operation modes including Real COM, RFC2217, TCP and UDP
- Designed for 1 or 2-port serial-to-Ethernet applications

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 1 x TTL serial port
- Serial signals: TxD, RxD, RTS, CTS, RST (reset circuit), GND
- 1 x 10/100BaseT(X) RJ45 port, auto MDI/MDI-X
- Magnetic isolation protection: 1.5 kV (built-in)
- Baud rate: 50 bps to 921.6 kbps
- CPU: 32-bit Arm core
- Memory: 2 MB Flash, 4 MB SDRAM
- 1 configurable DIO channel (software), 1 digital input, 1 digital output
- Operation modes: Real COM, RFC2217, TCP Client, TCP Server, UDP
- Operating temperature: 0 to 55°C
- Dimensions: 33.9 x 16.25 x 13.5 mm
- Mounting: Embedded

FAQs

Q: What is the operating temperature range of the MiiNePort E1-H?
A: The E1-H is the standard temperature model, rated for 0 to 55°C. The E1-H-T is the wide temperature version rated for -40 to 85°C.

Q: What serial interface does the MiiNePort E1-H use?
A: It provides one TTL serial port with TxD, RxD, RTS, CTS, RST and GND signals, with baud rates from 50 bps to 921.6 kbps.

Q: What network operation modes are supported?
A: The module supports Real COM, RFC2217, TCP Client, TCP Server and UDP modes.

Q: Which operating systems have driver support?
A: Drivers are available for Windows 2008 R2/2012/2012 R2 (x64), Windows Embedded CE 5.0/6.0 and Windows XP Embedded, plus Linux real TTY drivers for kernels 2.4.x to 5.x. Fixed TTY drivers cover several UNIX platforms and macOS, and an Android API is available for Android 3.1.x and later.

Q: How large is the MiiNePort E1-H?
A: It measures 33.9 x 16.25 x 13.5 mm, about the same size as an RJ45 connector, so it fits inside compact embedded devices.

Q: Does the E1-H provide optical isolation?
A: No. It has built-in 1.5 kV magnetic isolation protection on the Ethernet port but no optical isolation on the serial side.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
