Moxa ioLogik R1210 | Remote I/O Module, 16 DI, RS-485

Authorised Moxa Partner

SKU:ioLogik R1210

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

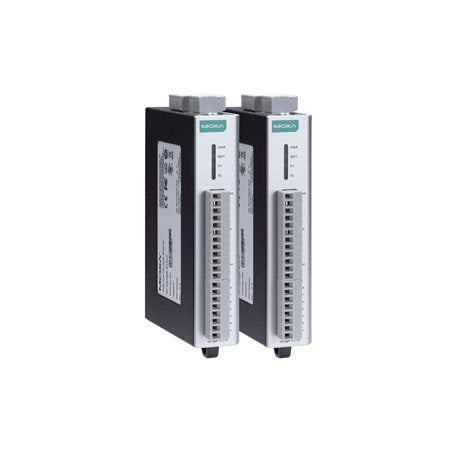

The Moxa ioLogik R1210 is a compact remote I/O module with 16 digital input channels and dual RS-485 ports, suited to cost-effective remote process control over Modbus RTU. This 16 DI standard temperature model operates from -10 to 75 C and accepts dry contact or wet contact (NPN or PNP) sensors on screw-fastened Euroblock terminals.

Each digital input can run in DI or event counter mode at up to 2.5 kHz, with 3 kVDC or 2 kVrms isolation. The module runs from 12 to 48 VDC and mounts on a DIN rail or a wall. Configuration and firmware upgrades are available over USB, and firmware can also be updated through an RS-485 connection using the free ioSearch software.

Features

- Dual RS-485 remote I/O with built-in repeater
- Dual RS-485 ports allow wiring and computer redundancy
- Supports the installation of multidrop communications parameters
- Install communications parameters and upgrade firmware via USB
- Upgrade firmware through an RS-485 connection
- Free ioSearch software for configuration and remote firmware updates

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 16 x digital inputs (dry contact or wet contact NPN/PNP)
- 8 channels per COM, 3 kVDC or 2 kVrms isolation
- DI or event counter mode, 2.5 kHz counter frequency
- 2 x RS-485 ports (2-wire, terminal block)
- Baud rate 1200 bps to 921.6 kbps
- Modbus RTU Server (slave)
- Input voltage 12 to 48 VDC, 154 mA at 24 VDC
- Operating temperature -10 to 75 C
- DIN-rail or wall mounting
- Dimensions 27.8 x 124 x 84 mm, weight 200 g
- Safety UL 508, EMC EN 55032/24, CISPR 32, FCC Part 15B Class A
- RoHS, CRoHS and WEEE compliant

FAQs

Q: What protocol does the ioLogik R1210 use?
A: It operates as a Modbus RTU Server (slave) over its two RS-485 ports.

Q: What types of digital input sensors does it support?
A: The 16 digital inputs accept dry contact and wet contact (NPN or PNP) sensors, with 8 channels per COM.

Q: Can the digital inputs be used as counters?
A: Yes. Each input can be set to DI mode or event counter mode, with a counter frequency of 2.5 kHz.

Q: What is the operating temperature range of this SKU?
A: This standard temperature model is rated for -10 to 75 C.

Q: How is the module configured and updated?
A: Communications parameters can be set and firmware upgraded via USB, and firmware can also be upgraded over an RS-485 connection using the free ioSearch software.

Q: How is the ioLogik R1210 powered and mounted?
A: It runs from 12 to 48 VDC through a screw-fastened Euroblock terminal and can be mounted on a DIN rail or on a wall.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
