Moxa ioLogik E2242-T | Remote I/O Controller, 4AI, 12DIO, -40 to 75°C

Authorised Moxa Partner

SKU:ioLogik E2242-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

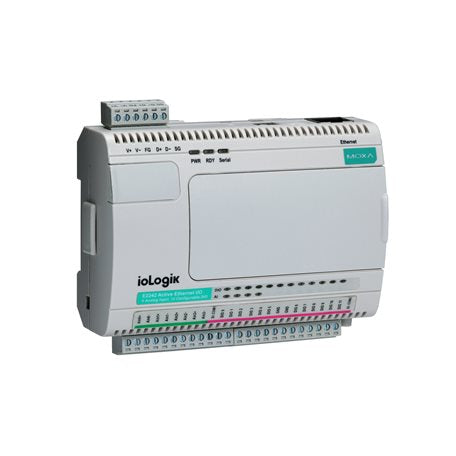

The Moxa ioLogik E2242-T is a universal remote I/O controller with Click&Go control logic, combining 4 analog inputs and 12 software-configurable DIO channels in a wide temperature design rated for -40 to 75°C. It connects over a 10/100BaseT(X) Ethernet port and an RS-485 serial port, making it well suited to distributed monitoring and control in harsh industrial environments.

The analog inputs offer 16-bit resolution with selectable voltage and current ranges, and the DIO channels operate as sink outputs or pulse outputs. Modbus TCP Server and Modbus RTU Master support, SNMPv1/v2c/v3 and Moxa AOPC active tag messaging let it integrate with SCADA and IIoT systems, while ioAdmin and web console configuration simplify commissioning. Power is supplied at 12 to 36 VDC, with DIN-rail or wall mounting.

Features

- Click&Go control logic with active monitoring technology
- Supports a versatile set of OT/IT protocols for IIoT applications
- Active tag (Moxa AOPC) report-by-exception messaging
- Configurable via ioAdmin utility or web console
- Wide operating temperature range of -40 to 75°C
- Real-time clock with battery backup and SNTP time management
- Built-in over-current, over-temperature and over-voltage protection on DIO channels

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 4 x analog inputs, 16-bit, differential, voltage/current
- Analog input ranges: 0 to 150 mV, ±500 mV, 0 to 500 mV, ±5 V, ±10 V, 0 to 20 mA, 4 to 20 mA
- 12 x software-configurable DIO channels, sink type, DO or pulse output
- DO current rating of 200 mA per channel, 1 kHz pulse output
- 1 x 10/100BaseT(X) RJ45 Ethernet port with 1.5 kV magnetic isolation
- 1 x RS-485 serial port, 1200 to 115200 bps, Modbus RTU Master
- Modbus TCP Server (Slave), SNMPv1/v2c/v3, SNMPv1 Trap, Moxa AOPC, MXIO Library, CGI commands
- Power input: 12 to 36 VDC, 178 mA @ 24 VDC
- Isolation: 3k VDC or 2k Vrms
- Operating temperature: -40 to 75°C
- Dimensions: 115 x 79 x 45.6 mm, 250 g
- DIN-rail or wall mounting, plastic housing
- Safety: UL 508; EMC: EN 61000-6-2/-6-4; EMI: CISPR 32, FCC Part 15B Class A
- MTBF: 204,391 hrs (Telcordia SR332)

FAQs

Q: What does the -T suffix on the ioLogik E2242-T indicate?
A: The -T denotes the wide temperature variant, rated for operation from -40 to 75°C.

Q: How many analog and digital channels does the ioLogik E2242-T provide?
A: It provides 4 analog inputs and 12 software-configurable DIO channels.

Q: Which industrial protocols does it support?
A: It supports Modbus TCP Server (Slave) and Modbus RTU Master over RS-485, along with SNMPv1/v2c/v3, Moxa AOPC active tags, the MXIO Library and CGI commands.

Q: What analog input types can I connect?
A: The 16-bit differential analog inputs accept voltage ranges including 0 to 150 mV, ±500 mV, 0 to 500 mV, ±5 V and ±10 V, and current ranges of 0 to 20 mA and 4 to 20 mA, with a built-in 120 ohm resistor for current input.

Q: What power supply does it need and how is it mounted?
A: It runs from 12 to 36 VDC through a screw-fastened Euroblock terminal and mounts on a DIN rail or directly on a wall.

Q: How is the ioLogik E2242-T configured?
A: It can be configured with the Windows ioAdmin utility or through the built-in web console over HTTP.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
