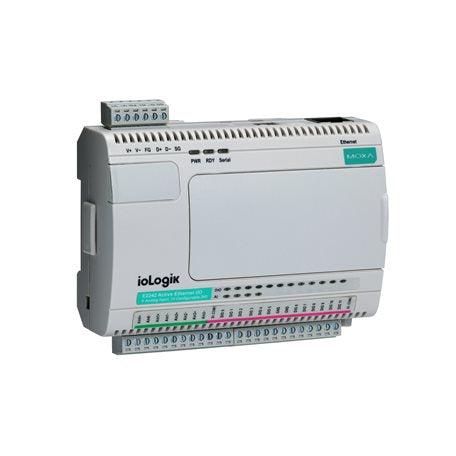

Moxa ioLogik E2210-T | Remote I/O, 12 DI, 8 DO, -40 to 75°C

Authorised Moxa Partner

SKU:ioLogik E2210-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The ioLogik E2210-T is a smart Ethernet remote I/O unit with 12 digital inputs (wet contact NPN or dry contact) and 8 digital outputs, built on Click&Go front-end control logic. This -T wide-temperature model is rated for -40 to 75°C, making it suited to harsh industrial cabinets, outdoor enclosures and factory-floor deployments.

The unit provides a 10/100BaseT(X) Ethernet port with Modbus TCP Server and SNMP v1/v2c/v3 support, plus an RS-485 port acting as a Modbus RTU Master. It is configured through the ioAdmin Windows utility or a web console, runs from 12 to 36 VDC, and mounts on a DIN rail or a wall.

Features

- Front-end intelligence with Click&Go control logic, up to 24 rules
- Active communication with MX-AOPC UA Server
- Peer-to-peer communications save time and wiring costs
- Modbus TCP Server and SNMP v1/v2c/v3 support
- Configuration via ioAdmin Windows utility or web browser
- MXIO library simplifies I/O management on Windows or Linux
- Wide operating temperature range for harsh environments
- DO over-current, over-temperature and over-voltage protection

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 12 x DI, wet contact (NPN) or dry contact
- 8 x DO, sink type, 200 mA per channel
- DI counter frequency 900 Hz, DO pulse output frequency 1 kHz
- 1 x 10/100BaseT(X) Ethernet port (RJ45)
- 1 x RS-485 serial port, Modbus RTU Master, 1200 to 115200 bps
- Isolation 3k VDC or 2k Vrms
- Power input 12 to 36 VDC, 202 mA @ 24 VDC
- Operating temperature -40 to 75°C
- Storage temperature -40 to 85°C
- Dimensions 115 x 79 x 45.6 mm, weight 250 g
- DIN-rail or wall mounting
- Real-time clock with battery backup
- Safety UL 508, EMC EN 61000-6-2/-6-4, FCC Part 15B Class A

FAQs

Q: What temperature range does the ioLogik E2210-T support?
A: As a -T model it operates from -40 to 75°C, suiting unheated cabinets and harsh industrial environments.

Q: What types of digital input does it accept?
A: The 12 digital inputs support dry contact and wet contact (NPN) sensors, and can be used as standard DI or as event counters up to 900 Hz.

Q: What are the digital output specifications?
A: There are 8 sink-type digital outputs rated at 200 mA per channel, usable as DO or pulse output up to 1 kHz, with over-current, over-temperature and over-voltage protection.

Q: Which protocols does the E2210-T support?
A: On Ethernet it supports Modbus TCP Server (Slave), SNMP v1/v2c/v3, SNMP Trap, Moxa AOPC and CGI commands. The RS-485 port runs Modbus RTU Master.

Q: How is the unit powered and mounted?
A: It takes 12 to 36 VDC through a screw-fastened Euroblock terminal and mounts on a DIN rail or a wall.

Q: How do I configure the ioLogik E2210-T?
A: Configure it with the ioAdmin Windows utility or the built-in web console over HTTP. Click&Go lets you build up to 24 control logic rules without programming.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
