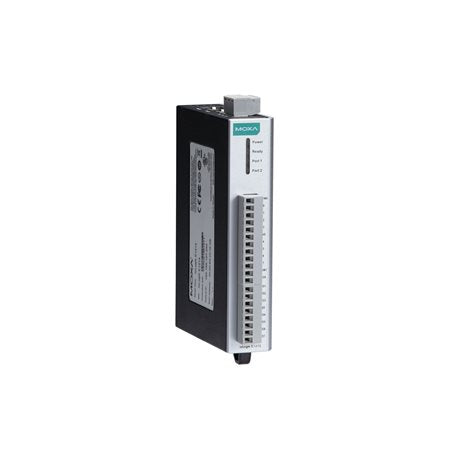

Moxa ioLogik-E1212 | ioLogik E1212 Remote Ethernet I/O, 8 DI, 8 DIO, 2-Port Switch

Authorised Moxa Partner

SKU:ioLogik E1212

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa ioLogik E1212 is a universal remote Ethernet I/O unit with 8 digital inputs and 8 jumper-configurable digital I/O channels, built for industrial automation and remote monitoring. An integrated 2-port 10/100BaseT(X) Ethernet switch allows daisy-chain topologies, and the unit operates across a -10 to 60°C temperature range.

The ioLogik E1212 supports Modbus TCP Server, EtherNet/IP Adapter, RESTful API and SNMP for straightforward IT and OT integration. Configuration is handled through the web console, the ioSearch Windows utility or the MCC Tool, and the compact housing mounts on a DIN-rail or a wall. Hazardous location approvals include ATEX and Class I Division 2.

Features

- Built-in 2-port Ethernet switch for daisy-chain topology
- Click&Go control logic with active monitoring technology
- Supports Modbus TCP Server, EtherNet/IP Adapter and Moxa AOPC protocols
- RESTful API and SNMP support for IT/OT integration
- 8 DIs plus 8 jumper-configurable DIOs
- Configured via web console, ioSearch utility or MCC Tool
- DIN-rail and wall mounting
- ATEX and Class I Division 2 hazardous location approvals

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- 8 x digital input channels
- 8 x configurable DIO channels (by jumper)
- 2 x 10/100BaseT(X) RJ45 ports, switched, 1 MAC address
- DI sensor types: dry contact, wet contact (NPN or PNP)
- DI counter frequency: 250 Hz
- DO type: sink, 200 mA per channel, pulse output up to 500 Hz
- Isolation: 3k VDC or 2k Vrms
- Power input: 12 to 36 VDC, 130 mA @ 24 VDC
- Protocols: Modbus TCP Server, EtherNet/IP Adapter, Moxa AOPC, RESTful API, SNMPv1/v2c
- Operating temperature: -10 to 60°C
- Storage temperature: -40 to 85°C
- Humidity: 5 to 95% non-condensing
- Dimensions: 27.8 x 124 x 84 mm, weight 200 g
- Mounting: DIN-rail or wall
- Approvals: ATEX, Class I Division 2, UL 508
- MTBF: 3,172,085 hrs (Telcordia SR-332)

FAQs

Q: How many I/O channels does the ioLogik E1212 provide?
A: It provides 8 dedicated digital inputs and 8 digital I/O channels that are configured as inputs or outputs by jumper.

Q: Which industrial protocols does the ioLogik E1212 support?
A: It supports Modbus TCP Server (Slave), EtherNet/IP Adapter and Moxa AOPC, plus RESTful API and SNMPv1/v2c for management.

Q: Can the ioLogik E1212 be daisy-chained?
A: Yes. The two 10/100BaseT(X) RJ45 ports are switched, so units can be linked in a daisy-chain topology without an external switch.

Q: What power supply does it require?
A: It runs from a single 12 to 36 VDC input via a screw-fastened Euroblock terminal and draws 130 mA at 24 VDC.

Q: What digital input sensor types are supported?
A: The digital inputs accept dry contact and wet contact (NPN or PNP) sensors, and can operate as standard DI or as an event counter up to 250 Hz.

Q: How is the ioLogik E1212 configured and mounted?
A: Configuration is done through the web console, the ioSearch Windows utility or the MCC Tool. The unit mounts on a DIN-rail or directly on a wall.
