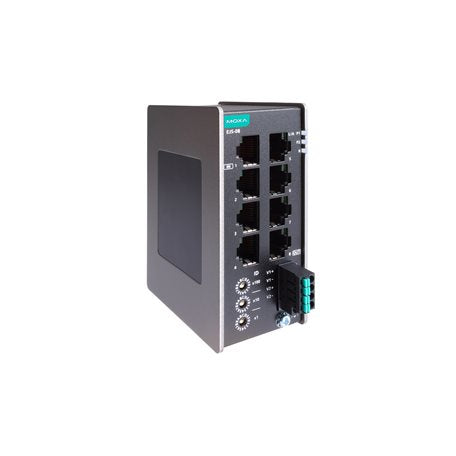

Moxa EJS-08 | 8-Port EtherCAT Junction, 100BaseT(X), -10 to 60°C

Authorised Moxa Partner

SKU:EJS-08

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa EJS-08 is a compact 8-port EtherCAT junction with 100BaseT(X) RJ45 ports, built to convert between star, line, tree and ring topologies in industrial automation networks. The standard temperature model operates from -10 to 60°C, and the metal IP30 housing suits DIN-rail installation inside control cabinets.

Dual 12/24/48 VDC power inputs (9.6 to 60 VDC operating) provide redundant power, with overload current and reverse polarity protection. The EJS-08 offers 8 FMMU and 8 Sync Manager channels, is EtherCAT Conformance Test certified by the ETG, and meets EN 61000-6-2 and EN 61000-6-4 industrial EMC standards. It also supports DIN-rail grounding and wall mounting with an optional kit.

Features

- 8 100BaseT(X) full-duplex RJ45 ports for multiple slave connections
- Topology conversion for more flexible EtherCAT networks
- Compact size for easy installation
- Wide power input range with redundancy options
- IP30-rated metal housing
- Meets EN 61000-6-2 and EN 61000-6-4 industrial EMC standards
- DIN-rail grounding support to optimise space and wiring
- EtherCAT Conformance Test certified by the ETG
- Dual power input design for redundant power supply

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 8 x 100BaseT(X) ports (RJ45, auto MDI/MDI-X)
- Supported topologies: Star, Line, Tree, Ring
- FMMU: 8, Sync Manager: 8
- Port combination: 1 (IN), 7 (OUT)
- Port delay: approximately 1 μs per port
- Rotary switch ID selector: address range 1 to 4095
- Dual 12/24/48 VDC power inputs (9.6 to 60 VDC operating)
- Input current: 0.30 A (max.)
- Power connector: 1 removable 4-contact terminal block
- Overload current and reverse polarity protection
- LED indicators: PWR1, PWR2, RUN
- Cable length: 100 m
- Operating temperature: -10 to 60°C
- Storage temperature: -40 to 85°C
- Ambient relative humidity: 5 to 95% (non-condensing)
- Metal housing, IP30
- Installation: DIN-rail mounting, wall mounting (with optional kit)
- Safety: UL 61010-2-201, EN 62368-1
- EMC: EN 55032/35, EN 61000-6-2, EN 61000-6-4

FAQs

Q: Which network topologies does the EJS-08 support?
A: The EJS-08 supports star, line, tree and ring topologies, so it can convert between them and make EtherCAT network layouts more flexible.

Q: What power input does the EJS-08 require?
A: It accepts 12/24/48 VDC nominal, with an operating range of 9.6 to 60 VDC. Two power inputs allow redundant supply, and the unit includes overload current and reverse polarity protection.

Q: What is the operating temperature range of this model?
A: This standard temperature model operates from -10 to 60°C. Storage temperature is -40 to 85°C.

Q: How is the EJS-08 mounted?
A: It mounts on a DIN rail, and wall mounting is possible with an optional kit. The IP30 metal housing is intended for installation inside a control cabinet.

Q: Which port is the input port?
A: The port combination is 1 IN and 7 OUT. Port 1 is the input towards the EtherCAT master and the other seven ports connect downstream slave devices.

Q: What port speed and cable length does the EJS-08 support?
A: All eight RJ45 ports are 100BaseT(X) with auto MDI/MDI-X, supporting cable runs of up to 100 m.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
