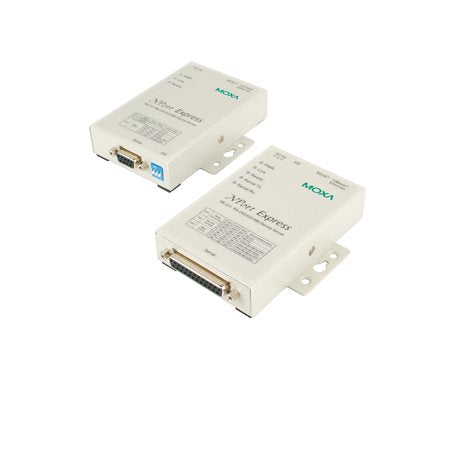

• Two beige Moxa NPort Express serial converters with labeled ports and brackets
1 1

Moxa

Moxa DE-211 | NPort Express 1-Port RS-232/422/485 Serial Device Server

Moxa DE-211 | NPort Express 1-Port RS-232/422/485 Serial Device Server

Authorised Moxa Partner

DE-211

Stock Status: Enquire

Request Quote
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The Moxa NPort Express DE-211 is a compact 1-port RS-232/422/485 serial device server that connects serial equipment to a 10 Mbps Ethernet network. It uses a DB25 female serial connector and a 10BaseT RJ45 port with auto MDI/MDI-X, and accepts a 12 to 30 VDC power input, making it well suited to retrofitting legacy serial devices such as instruments, controllers and card readers onto a TCP/IP network.

The serial port supports 4-wire and 2-wire RS-485 with automatic data direction control (ADDC), baudrates up to 230.4 kbps, and a DIP switch to select the interface. Windows Real COM and Linux Real TTY drivers, along with TCP Server/Client, UDP and Pair Connection modes, make integration straightforward, while the metal housing and 15 kV ESD serial protection suit demanding installations.

Features

- 3-in-1 RS-232/422/485 interface selectable by DIP switch
- Supports 4-wire and 2-wire RS-485 with ADDC and built-in terminator
- Supports industrial 24 VDC power input and optional Power over Serial
- 15 kV ESD protection on serial signals
- IP configuration by MAC address
- Configuration store and copy for easy deployment
- Windows native COM driver and Linux real TTY driver
- Operation modes: Driver, TCP Server/Client, UDP Server/Client, Ethernet Modem, Pair Connection

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Serial ports: 1 x RS-232/422/485, DB25 female
- Ethernet: 1 x 10BaseT RJ45, auto MDI/MDI-X, 1.5 kV magnetic isolation
- Baudrate: 50 bps to 230.4 kbps
- Data bits 5-8, stop bits 1/1.5/2, parity None/Even/Odd/Space/Mark
- Flow control: None, RTS/CTS, XON/XOFF
- RS-485 data direction control: ADDC
- Power input: 12 to 30 VDC (180 mA @ 12 VDC, 100 mA @ 24 VDC)
- Housing: metal
- Dimensions: 90.2 x 100.4 x 22 mm with ears, 67 x 100.4 x 22 mm without ears
- Weight: 480 g
- Operating temperature: 0 to 55 C
- Storage temperature: -40 to 75 C
- Humidity: 5 to 95% non-condensing
- MTBF: 347,822 hrs (MIL-HDBK-217F)
- Certifications: EN 55032/35, FCC Part 15B Class B, UL 60950-1, RoHS, CRoHS, WEEE

FAQs

Q: Which serial standards does the DE-211 support?
A: The single DB25 female serial port supports RS-232, RS-422 and RS-485 (4-wire and 2-wire), selectable by DIP switch.

Q: What Ethernet speed does the DE-211 provide?
A: It has one 10BaseT RJ45 port with auto MDI/MDI-X, running at 10 Mbps.

Q: What power input does it need?
A: It accepts 12 to 30 VDC, drawing 180 mA at 12 VDC or 100 mA at 24 VDC.

Q: Which operating systems are supported by the drivers?
A: Windows Real COM drivers cover Windows 95 through Windows 11 and Server 2022, Linux Real TTY drivers cover kernels 2.4.x to 5.x, and fixed TTY drivers are available for several UNIX variants and Mac OS X. An Android API for Android 3.1.x and later is also provided.

Q: Can it handle RS-485 without extra data direction control hardware?
A: Yes. It uses automatic data direction control (ADDC) for both 4-wire and 2-wire RS-485, with a built-in terminator.

Q: What operation modes are available?
A: Driver mode, TCP Server, TCP Client, UDP Server/Client, Ethernet Modem and Pair Connection modes are supported.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
