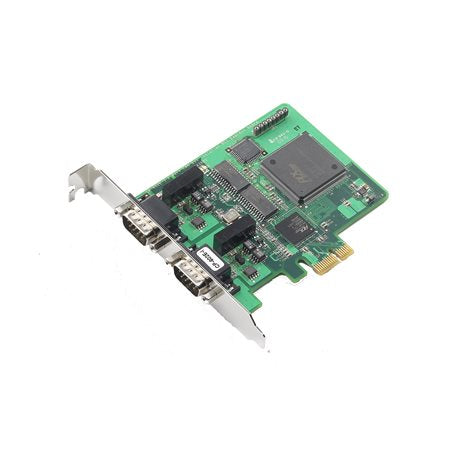

Moxa CP-602E-I w/o Cable | CAN Bus PCIe Board, 2-Port, 2kV Isolation, 0-55°C, No Cable

Authorised Moxa Partner

SKU:CP-602E-I w/o Cable

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa CP-602E-I w/o Cable is a 2-port CAN Bus PCI Express board for industrial PCs and servers that need reliable CAN network connectivity. It provides two independent CAN ports with DB9 male connectors, support for CAN 2.0A and CAN 2.0B, transfer rates up to 1 Mbps and 2 kV electrical isolation. This standard-temperature model operates from 0 to 55°C and ships without a cable.

Built around the NXP SJA1000 CAN controller and PCA82C251 transceiver, the board includes transmit and receive LEDs on each port and an optional 120-ohm terminal resistor for the CAN bus network. A Windows driver, DLL library and examples are provided to speed up application development. For installations needing a wider temperature range, the CP-602E-I-T variant covers -40 to 85°C.

Features

- Supports CAN 2.0A and CAN 2.0B
- Two independent CAN communication ports
- CAN transfer rate up to 1 Mbps
- 2 kV electrical isolation for protection against ground loops and surges
- Transmit/receive status LED on each port
- Optional 120-ohm terminal resistor for the CAN bus network
- DLL library and examples included
- Windows driver provided

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Interface: PCI Express
- Ports: 2 x CAN, DB9 male connectors
- Protocols: CAN 2.0A and CAN 2.0B
- Baudrate: 10/20/50/125/250/500/800/1000 kbps, user-defined up to 1 Mbps
- Isolation: 2 kV serial isolation protection
- CAN controller: NXP SJA1000
- CAN transceiver: PCA82C251
- Operating temperature: 0 to 55°C (32 to 131°F)
- Storage temperature: -40 to 85°C (-40 to 185°F)
- Ambient relative humidity: 5 to 95% (non-condensing)
- EMI: CISPR 32, FCC Part 15B Class B
- EMC: EN 55032/24
- EMS: ESD contact 4 kV and air 8 kV; EFT power 1 kV; surge power 2 kV
- Package contents: 1 x CP-602E-I Series serial board

FAQs

Q: Does the CP-602E-I w/o Cable include a CAN cable?
A: No. This model ships as the board only, with no cable. The package contains one CP-602E-I Series serial board.

Q: What is the operating temperature range?
A: This standard-temperature model operates from 0 to 55°C. The CP-602E-I-T variant covers -40 to 85°C for harsher environments.

Q: Which CAN standards and speeds does it support?
A: It supports CAN 2.0A and CAN 2.0B, with baudrates of 10/20/50/125/250/500/800/1000 kbps and user-defined rates up to 1 Mbps.

Q: What type of expansion slot does it require?
A: It is a PCI Express board, so it needs a free PCIe slot in the host PC or server.

Q: Is there electrical isolation between the ports and the host?
A: Yes. The board provides 2 kV serial isolation protection, which helps guard the host against surges and ground loops on the CAN bus.

Q: Are drivers and development tools provided?
A: A Windows driver is provided, along with a DLL library and examples to help integrate CAN communication into your own applications.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
