Moxa CP-134U-DB9M | CP-134U 4-Port RS-422/485 PCI Serial Board, DB9 Male Cable

Authorised Moxa Partner

SKU:CP-134U-DB9M

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

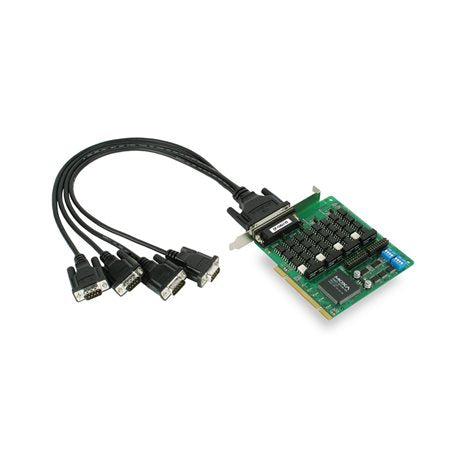

The Moxa CP-134U-DB9M is a 4-port universal PCI serial board for industrial automation, providing RS-422/485 communication on all four ports with RS-232 also available on ports 1 and 2. This non-isolated model operates from 0 to 55°C and ships with a DB44 male to DB9 male cable, making it well suited to long-distance, multipoint, PC-based data acquisition.

Built on a 32-bit Universal PCI bus that is compatible with 3.3/5 V PCI and PCI-X slots, the board supports baudrates from 50 bps to 921.6 kbps and delivers over 700 kbps of data throughput. Drivers are provided for Windows, Linux and UNIX, and up to 8 boards can be installed in a single PC.

Features

- Over 700 kbps data throughput
- 921.6 kbps maximum baudrate for fast data transmission
- ADDC (automatic data direction control) for RS-485 signals
- 128-byte FIFO and on-chip hardware/software flow control
- Compatible with 3.3/5 V PCI and PCI-X slots
- Drivers provided for Windows, Linux and UNIX
- Ports 1 and 2 support both RS-232 and RS-422/485

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 4 serial ports: 2 x RS-232/422/485 and 2 x RS-422/485
- Bus: 32-bit Universal PCI (3.3/5 V PCI and PCI-X compatible)
- Communication controller: MU860 (16C550C compatible)
- Baudrate: 50 bps to 921.6 kbps
- 128-byte FIFO
- Board connector: DB44 female
- Included cable: DB44 male to DB9 male, 50 cm
- Data bits: 5, 6, 7, 8; stop bits: 1, 1.5, 2
- Parity: None, Even, Odd, Space, Mark
- Flow control: None, RTS/CTS, XON/XOFF
- Operating temperature: 0 to 55°C
- Input current: 180 mA @ 5 VDC
- Maximum 8 boards per PC
- No isolation on this model

FAQs

Q: Which serial interfaces does the CP-134U-DB9M support?
A: All four ports support RS-422/485. Ports 1 and 2 also support RS-232.

Q: Is a cable included?
A: Yes. A 50 cm DB44 male to DB9 male serial cable is included.

Q: Does this model provide electrical isolation?
A: No. This is the non-isolated model. 2 kV isolation is only available on the CP-134U-I variants.

Q: What PCI slots is it compatible with?
A: It uses a 32-bit Universal PCI interface compatible with 3.3/5 V PCI and PCI-X slots.

Q: Which operating systems are supported?
A: Drivers are provided for Windows, Linux and UNIX.

Q: How many boards can be installed in one PC?
A: Up to 8 CP-134U boards can be installed in a single PC.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
