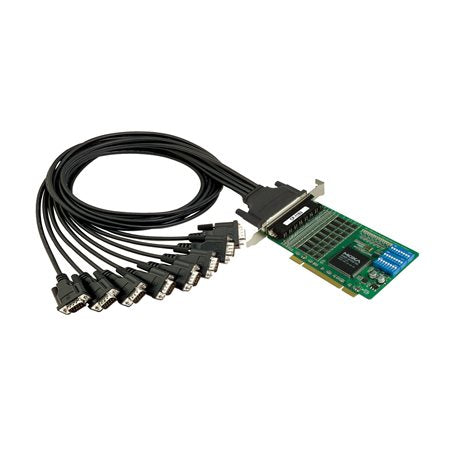

Moxa CP-118U | 8-Port RS-232/422/485 Universal PCI Serial Board, DB62

Authorised Moxa Partner

SKU:CP-118U

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa CP-118U is an 8-port RS-232/422/485 universal PCI serial board for point-of-sale, ATM and industrial applications. It uses a 32-bit Universal PCI bus and a DB62 female connector, and this non-isolated version is intended for installations that do not require optical isolation. Each port is software-selectable between RS-232, RS-422 and RS-485, so one board can serve a mix of serial devices.

A 128-byte FIFO and baudrates from 50 bps to 921.6 kbps support reliable high-speed serial communication. Built-in Tx/Rx LEDs for each port simplify troubleshooting, drivers are available for Windows, Linux and UNIX, and up to 8 boards can be installed in a single PC for large port counts.

Features

- Software-selectable RS-232/422/485 mode per port
- Universal PCI (3.3V/5V) board design
- Drivers available for Windows, Linux and UNIX
- Suited to POS and ATM applications
- 128-byte FIFO with up to 921.6 kbps baudrate
- Tx/Rx LED indicators for each port

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 8 x RS-232/422/485 serial ports
- Bus: 32-bit Universal PCI
- Connector: DB62 female
- Isolation: none
- Communication controller: MU860 (16C550C compatible)
- FIFO: 128 bytes
- Baudrate: 50 bps to 921.6 kbps
- Maximum 8 boards per PC
- Input current: 20 mA @ 5 VDC
- Dimensions: 82 x 135 mm (3.22 x 5.31 in)
- Built-in Tx/Rx LEDs for each port
- Operating temperature: 0 to 55°C (32 to 131°F)
- Storage temperature: -40 to 85°C (-40 to 185°F)
- Ambient humidity: 5 to 95% (non-condensing)
- MTBF: 1,073,385 hrs (Telcordia SR332)
- RoHS, CRoHS and WEEE compliant

FAQs

Q: What serial interfaces does the CP-118U support?
A: Each of the 8 ports is software-selectable between RS-232, RS-422 and RS-485.

Q: Which PCI slots is the CP-118U compatible with?
A: It is a 32-bit Universal PCI board designed for 3.3V and 5V PCI slots.

Q: Which operating systems have drivers available?
A: Drivers are available for Windows, Linux and UNIX.

Q: Does the CP-118U provide electrical isolation?
A: No. This model has no isolation and uses a DB62 female connector. The CP-118U-I variant adds 2 kV optical isolation and uses a DB78 connector.

Q: How many CP-118U boards can be installed in one PC?
A: Up to 8 boards can be installed in a single PC.

Q: What is the maximum baudrate?
A: Baudrates range from 50 bps up to 921.6 kbps, supported by a 128-byte FIFO.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
