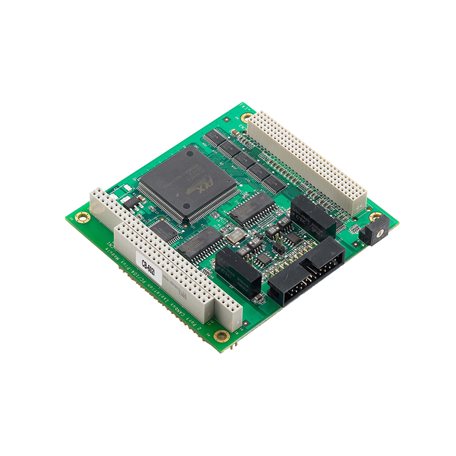

Moxa CB-602I-T w/o Cable | CB-602I 2-Port CAN Bus PC/104-Plus Module, -40 to 85°C

Authorised Moxa Partner

SKU:CB-602I-T w/o Cable

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa CB-602I-T w/o Cable is a 2-port CAN bus interface module for the PC/104-Plus bus, built for embedded industrial computers that need reliable CAN 2.0A/2.0B connectivity. It provides 2 kV electrical isolation and this wide temperature -T variant operates from -40 to 85°C, suiting harsh industrial and edge deployments. This version is supplied without cables.

Each port uses an NXP SJA1000 controller with a PCA82C251 transceiver and supports baudrates up to 1 Mbps, with a 20-pin box header connector for wiring to CAN devices. Up to 8 boards can be installed in one PC, and optional DB9 and DB25 cables are available separately for connecting CAN devices.

Features

- Supports CAN 2.0A and CAN 2.0B
- Two independent CAN communication ports
- CAN transfer rate up to 1 Mbps
- LED for transmit/receive status on each port
- Optional 120-ohm terminal resistor for the CAN bus network
- Optional DB9 and DB25 cables for connecting CAN devices (sold separately)
- Wide temperature and isolation suit harsh industrial environments

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- PC/104-Plus bus interface
- 2 x CAN ports (CAN 2.0A/2.0B)
- NXP SJA1000 controller with PCA82C251 transceiver
- Baudrate: 10/20/50/125/250/500/800/1000 kbps, user-defined (up to 1 Mbps)
- 2 kV electrical isolation
- 20-pin box header connector
- Up to 8 boards per PC
- Operating temperature: -40 to 85°C (-40 to 185°F)
- Storage temperature: -40 to 85°C
- Ambient relative humidity: 5 to 95% (non-condensing)
- EMC: EN 55032/24; EMI: CISPR 32, FCC Part 15B Class B
- Package contents: 1 x CB-602I Series PC/104-Plus module

FAQs

Q: Does the CB-602I-T include cables?
A: No. This variant is supplied without cables. Optional DB9 and DB25 cables for connecting CAN devices are available separately.

Q: What operating temperature range does this module support?
A: The -T variant operates from -40 to 85°C (-40 to 185°F), making it suitable for harsh industrial environments.

Q: Which CAN standards and speeds are supported?
A: It supports CAN 2.0A and CAN 2.0B, with baudrates from 10 kbps up to 1 Mbps, including user-defined rates.

Q: What electrical isolation does the module provide?
A: It provides 2 kV electrical isolation to help protect the host system from noise and surges on the CAN bus.

Q: How many CB-602I boards can be installed in one PC?
A: Up to 8 boards can be installed in a single PC.

Q: What host bus does this module require?
A: It is a PC/104-Plus module, so the host system must provide a PC/104-Plus bus connector.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
