Moxa CB-114 | Series 4-Port RS-232/422/485 PC/104-Plus Serial Board, 0-55C

Authorised Moxa Partner

SKU:CB-114

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

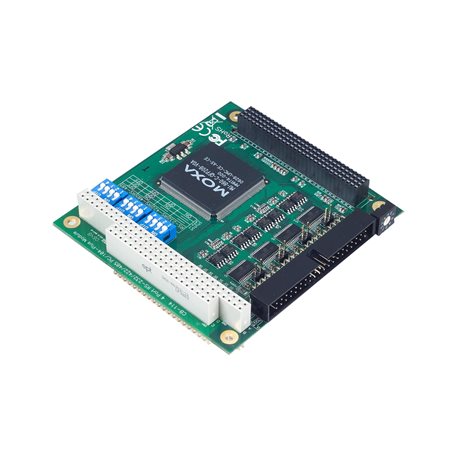

The Moxa CB-114 is a 4-port RS-232/422/485 PC/104-Plus serial board for embedded and industrial systems that need reliable multiport serial connectivity over the PCI-based PC/104-Plus bus. This standard temperature model operates from 0 to 55\u00b0C, with DIP switch selectable serial interfaces and baudrates up to 921.6 kbps on every port.

Built around four 16C550C-compatible UARTs with 128-byte FIFOs and hardware and software flow control, the CB-114 suits data acquisition, automation and device connectivity applications. Up to eight boards can be installed in a single PC, with driver support for Windows, Windows CE, Windows XP Embedded, Linux, QNX 6, Solaris 10 and UnixWare 7. Optional DB9 and DB25 connection cables are available.

Features

- 921.6 kbps maximum baudrate for fast data transmission
- On-chip hardware and software flow control
- DIP switch selectable RS-232/422/485 serial interface
- Onboard Tx and Rx LED indicators for each port
- Supports Windows, Windows CE 5.0/6.0 and Windows XP Embedded
- Linux, QNX 6, Solaris 10 and UnixWare 7 driver support
- Optional DB9 and DB25 connection cables available

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Bus: PC/104-Plus (PCI)
- Serial ports: 4 x RS-232/422/485, DIP switch selectable
- Communication controller: 16C550C or compatible x 4
- Baudrate: 50 bps to 921.6 kbps
- FIFO: 128 bytes
- Connector: 40-pin box header
- Data bits: 5, 6, 7, 8
- Stop bits: 1, 1.5, 2
- Parity: None, Even, Odd, Space, Mark
- Flow control: None, RTS/CTS, XON/XOFF
- Maximum boards per PC: 8
- Input: 5 VDC, 164 mA
- Dimensions: 90 x 96 mm (3.54 x 3.78 in)
- Operating temperature: 0 to 55\u00b0C
- Compliance: RoHS, CRoHS, WEEE

FAQs

Q: What bus does the Moxa CB-114 use?
A: The CB-114 is a PC/104-Plus board using the PCI-based PC/104-Plus bus, so it needs a PC/104-Plus CPU board or stack.

Q: Can each serial port be switched between RS-232, RS-422 and RS-485?
A: Yes. All four ports support RS-232, RS-422 and RS-485, selected using DIP switches on the board.

Q: What is the operating temperature range of the CB-114?
A: The CB-114 operates from 0 to 55\u00b0C. A wide-temperature sibling, the CB-114-T, is available for harsher environments.

Q: How many CB-114 boards can I install in one system?
A: Up to eight CB-114 boards can be used in a single PC.

Q: Which operating systems are supported?
A: Drivers are available for Windows, Windows CE 5.0/6.0, Windows XP Embedded, Linux, QNX 6, Solaris 10 and UnixWare 7.

Q: Are cables included for connecting serial devices?
A: The board provides a 40-pin box header connector. Optional DB9 and DB25 connection cables are available separately.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
