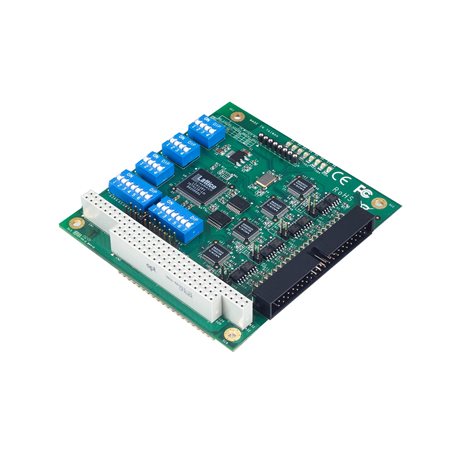

Moxa CA-114-T | CA-114 PC/104 4-Port RS-232/422/485 Serial Board, -40 to 85°C

Authorised Moxa Partner

SKU:CA-114-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The CA-114-T is a PC/104 bus 4-port RS-232/422/485 serial board for embedded and industrial systems that need reliable multiport serial connectivity. This wide-temperature variant is rated for -40 to 85°C operation, making it suited to harsh environments such as transport, factory automation and outdoor cabinets. It supports data rates up to 921.6 kbps across four ports.

Each port has onboard Tx and Rx LED indicators for quick diagnostics, and IRQ settings, I/O settings and the serial interface are selectable via jumper and DIP switch. The board supports Windows CE 5.0/6.0 and Windows XP Embedded, and optional DB9 and DB25 connection cables are available for field wiring.

Features

- 921.6 kbps maximum baudrate for fast data transmission
- On-chip hardware and software flow control
- IRQ settings, I/O settings and serial interface selectable via jumper and DIP switch
- Onboard Tx and Rx LED indicators for each port
- Supports Windows CE 5.0/6.0 and Windows XP Embedded
- Wide-temperature design for -40 to 85°C environments
- Optional DB9 and DB25 connection cables available

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 4 x RS-232/422/485 serial ports
- PC/104 bus interface
- Communication controller: 16C550C or compatible x 4
- Maximum baudrate: 921.6 kbps
- 40-pin box header connector
- Dimensions: 90 x 96 mm (3.54 x 3.78 in)
- Operating temperature: -40 to 85°C
- Storage temperature: -40 to 85°C
- Ambient relative humidity: 5 to 95% (non-condensing)
- Tx/Rx LED indicators for each port
- MTBF: 630,997 hrs
- Safety: EN 60950-1, UL 60950-1
- EMC: EN 55032/24; EMI: CISPR 32, FCC Part 15B Class A

FAQs

Q: What is the operating temperature range of the CA-114-T?
A: The CA-114-T is the wide-temperature model and operates from -40 to 85°C.

Q: How many serial ports does the CA-114-T provide and which interfaces are supported?
A: It provides four serial ports, each supporting RS-232, RS-422 or RS-485.

Q: What is the maximum baudrate?
A: The maximum baudrate is 921.6 kbps.

Q: Which operating systems does the CA-114-T support?
A: It supports Windows CE 5.0/6.0 and Windows XP Embedded.

Q: How are the serial interface and IRQ/I/O settings configured?
A: IRQ settings, I/O settings and the serial interface are selected using jumpers and a DIP switch on the board.

Q: What cables are available for connecting devices?
A: Optional DB9 and DB25 connection cables are available for the 40-pin box header connector.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
