Moxa 85M-3810-T | ioPAC 8500 Analog Input Module, 8 AIs, 0-10V, -40 to 75°C

Authorised Moxa Partner

SKU:85M-3810-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

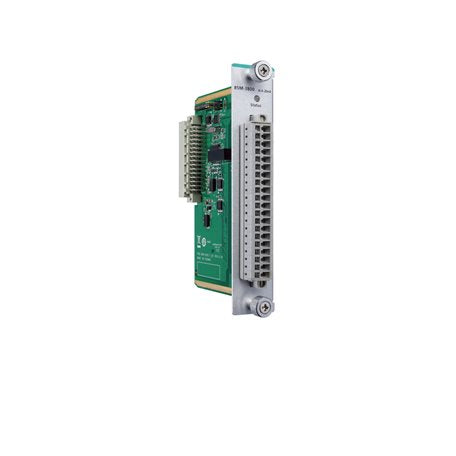

The Moxa 85M-3810-T is a rugged 8-channel analog input module for ioPAC 8500 Series (85M) systems, accepting 0 to 10 VDC signals through eight differential channels at 16-bit resolution. It is built for railway and other harsh environments and operates across a -40 to 75°C temperature range.

This I/O module expands the input capability of Moxa ioPAC 8600 and 8500 Series controllers. It is compliant with EN 50121-4 and a portion of EN 50155, and uses spring-type Euroblock terminals for fast, vibration-resistant field wiring.

Features

- Compliant with EN 50121-3-2, EN 50121-4 and a portion of EN 50155 specifications
- Rugged, compact design for harsh environments
- Expands the I/O and communication capabilities of ioPAC 8600 and 8500 Series devices
- Wide operating temperature range of -40 to 75°C
- Millisecond timestamp granularity for digital and analog input
- Sampling rates up to 40 kHz for analog input
- Pre-recording for analog input data logging

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 8 x analog input channels, differential
- Input range: 0 to 10 VDC
- Resolution: 16 bits
- Accuracy: ±0.1% FSR @ 25°C; ±0.3% FSR @ -40 to 75°C
- Input impedance: 200 kilo-ohms (min.)
- Isolation: 3k VDC or 2k Vrms
- Connector: spring-type Euroblock terminal
- Wiring: I/O cable, 14 to 28 AWG
- Power consumption: 43.3 mA @ 24 VDC
- Dimensions: 25 x 128.2 x 85.5 mm
- Weight: under 80 g
- Operating temperature: -40 to 75°C (-40 to 167°F)
- Storage temperature: -40 to 85°C
- Humidity: 5 to 95% (non-condensing)
- Altitude: 2000 m
- Standards: EN 50121-4, a portion of EN 50155, UL 508, IEC 60068-2-6 (vibration), IEC 60068-2-27 (shock)
- MTBF: 1,530,690 hrs (Telcordia SR332)

FAQs

Q: Which controllers is the Moxa 85M-3810-T compatible with?
A: It is designed to expand the I/O of Moxa ioPAC 8600 and ioPAC 8500 Series controllers.

Q: What input signal range does this module support?
A: It provides 8 differential analog input channels for 0 to 10 VDC signals at 16-bit resolution.

Q: What operating temperature range does the module support?
A: It operates from -40 to 75°C (-40 to 167°F), suitable for railway and other harsh environments.

Q: Which standards does the 85M-3810-T comply with?
A: It complies with EN 50121-4 and a portion of EN 50155, and is also rated to UL 508, IEC 60068-2-6 (vibration) and IEC 60068-2-27 (shock).

Q: How is the module wired?
A: It uses a spring-type Euroblock terminal that accepts I/O cable from 14 to 28 AWG.

Q: How does this module differ from other ioPAC 8500 Series I/O modules?
A: The 85M-3810-T is the 8-channel 0 to 10 V analog input variant. Other 85M modules in the series cover different channel counts and signal types.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
