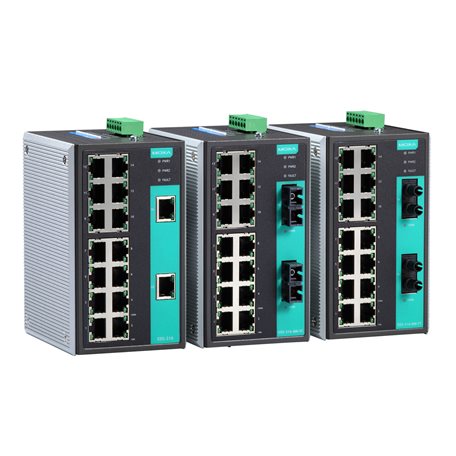

Moxa EDS-316 Unmanaged Ethernet Switch With 16 10/100Baset(X) Ports, Relay Output Warning, 0 To 60 C Operating Temperature

The Moxa EDS-316 is an unmanaged Ethernet switch featuring 16 10/100BaseT(X) ports, ideal for robust network communication in industrial environments. This reliable switch supports broadcast storm protection, ensuring seamless data flow and network stability. It is equipped with a relay output warning, providing alerts for port events, enhancing network management. Designed for versatile deployment, the EDS-316 operates efficiently in temperatures ranging from 0 to 60°C, making it suitable for various industrial applications.

REQUEST A QUOTE today, and let us provide you with a prompt and professional response tailored just for you. Experience the highest standard of service at unbeatable prices.

Moxa EDS-316 Unmanaged Ethernet Switch With 16 10/100Baset(X) Ports, Relay Output Warning, 0 To 60 C Operating Temperature

Features

  • 16 10/100BaseT(X) Ports
  • Unmanaged Ethernet Switch
  • Relay output warning for power failure
  • Support for broadcast storm protection
  • Store-and-forward switching architecture
  • DIN-Rail or panel mounting capability
  • Wide operating temperature range of 0 to 60°C
  • Plug-and-Play simplicity
  • UL/cUL Class I Division 2 certifiable
  • Rugged metal housing

Technical Specifications

  • Standards: IEEE 802.3, 802.3u, 802.3x
  • Interface: 16 10/100BaseT(X) Ports
  • Processing Type: Store and Forward
  • Flow Control: IEEE 802.3x flow control, back pressure flow control
  • Switch Properties:
    • Switching bandwidth: 3.2 Gbps
    • Packet Buffer Size: 128 KB
  • Power Requirements:
    • Input Voltage: 24VDC (12 to 45VDC) or 24VAC (18-30VAC)
  • Relay Output: 1 relay output with current carrying capacity of 1 A @ 24 VDC
  • Operating Temperature: 0 to 60°C (32 to 140°F)
  • Storage Temperature: -40 to 85°C (-40 to 185°F)
  • Housing: IP30-rated metal housing
  • Dimensions: 53.6 x 135 x 105 mm (2.11 x 5.31 x 4.13 in)
  • Mounting: DIN-Rail, Wall Mount (optional kit)
  • Certifications: UL 508, UL/cUL Class I Division 2 Groups A, B, C, D, ATEX Class I Zone 2, IECEx

Frequent Ask Questions

  • What are the key specifications of the Moxa EDS-316 Unmanaged Ethernet Switch?

    The Moxa EDS-316 features 16 10/100BaseT(X) ports and includes relay output warning for status monitoring. It operates within a temperature range of 0 to 60°C.

  • Is the Moxa EDS-316 suitable for industrial environments?

    Yes, the Moxa EDS-316 is designed for industrial applications with its robust build and ability to operate in temperatures from 0 to 60°C.

  • Does the Moxa EDS-316 support advanced network management features?

    No, the Moxa EDS-316 is an unmanaged switch, which means it does not support advanced network management features. It is designed for straightforward plug-and-play use.

  • What is the main function of the relay output warning feature?

    The relay output warning feature is used to signal critical events or status changes, enabling quick response and maintenance actions to ensure network reliability.

  • What is the power input requirement for the Moxa EDS-316?

    The Moxa EDS-316 typically operates with a wide range of DC power inputs, ensuring compatibility with various industrial power sources. Specific voltage requirements can be found in the product manual.

  • What type of environments is the Moxa EDS-316 best suited for?

    This switch is ideal for use in industrial environments such as factory automation, transportation systems, and energy management applications due to its durable construction and reliable performance.

  • Can the Moxa EDS-316 be mounted on a DIN rail?

    Yes, the Moxa EDS-316 is designed for DIN-rail mounting, making it easy to integrate into existing industrial control panels and enclosures.
