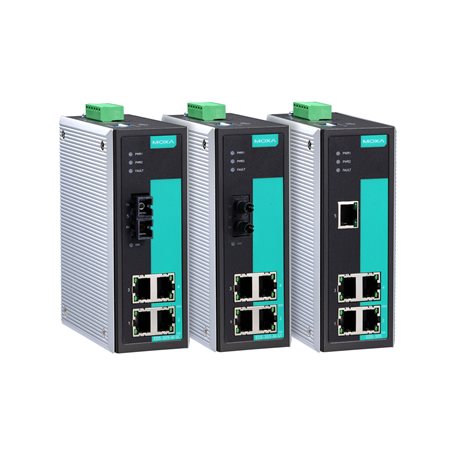

Moxa EDS-305-M-ST-T Unmanaged Ethernet Switch With 4 10/100Baset(X) Ports, 1 100Basefx Multi-Mode Port With St Connectors, Relay Output Warning, -40 To 75 C Operating Temperature

The Moxa EDS-305-M-ST-T is an industrial-grade unmanaged Ethernet switch designed for reliable performance in demanding environments. It features four 10/100BaseT(X) ports and one 100BaseFX multi-mode port with ST connectors, allowing for versatile network configurations. The unit supports relay output warnings and operates in extreme temperatures ranging from -40°C to 75°C, ensuring robust communication in harsh conditions. Ideal for industrial automation and control applications, this switch combines durability with efficient networking capabilities.

REQUEST A QUOTE today, and let us provide you with a prompt and professional response tailored just for you. Experience the highest standard of service at unbeatable prices.

Moxa EDS-305-M-ST-T Unmanaged Ethernet Switch With 4 10/100Baset(X) Ports, 1 100Basefx Multi-Mode Port With St Connectors, Relay Output Warning, -40 To 75 C Operating Temperature

Features

  • Unmanaged Ethernet switch
  • 4 10/100BaseT(X) RJ45 ports
  • 1 100BaseFX multi-mode port with ST connectors
  • Relay output for power failure warning
  • Rugged design suitable for harsh environments
  • Compact size for DIN-rail mounting
  • Wide operating temperature range: -40 to 75°C

Technical Specifications

  • Network Interfaces:
    • 4 x 10/100BaseT(X) ports (RJ45 connectors)
    • 1 x 100BaseFX multi-mode port (ST connectors)
  • Standard: IEEE 802.3, IEEE 802.3u
  • Forwarding Rate: 14,880 pps for 10Mbps, 148,800 pps for 100Mbps
  • Switching Bandwidth: 1.0 Gbps
  • MAC Table Size: 1 K entries
  • Input Voltage: 12 to 48 VDC
  • Power Consumption: Max. 4 W
  • Relay Output: 1 relay output with current carrying capacity of 1A @ 24VDC
  • Operating Temperature: -40 to 75°C
  • Housing: Aluminum, IP30 protection
  • Dimensions: 53.6 x 135 x 105 mm (2.11 x 5.31 x 4.13 in)
  • Mounting: DIN-rail or wall mountable
  • Weight: 480 g
  • Approvals: UL 508, Class 1 Division 2, ATEX Zone 2

Frequent Ask Questions

  • What is the Moxa EDS-305-M-ST-T Ethernet Switch?

    The Moxa EDS-305-M-ST-T is an unmanaged Ethernet switch with 4 10/100BaseT(X) ports and 1 100BaseFX multi-mode port with ST connectors. It is designed for industrial applications and offers relay output warning and a wide operating temperature range of -40 to 75°C.

  • What are the key features of the Moxa EDS-305-M-ST-T?

    Key features of the Moxa EDS-305-M-ST-T include:

    • 4 10/100BaseT(X) ports
    • 1 100BaseFX multi-mode port with ST connectors
    • Relay output warning
    • Operating temperature range of -40 to 75°C
    • Unmanaged switch functionality
  • What is the purpose of the relay output warning?

    The relay output warning feature is used to alert users to abnormal operating conditions, such as power failures or port status changes, ensuring quick response to any network issues that may arise.

  • Can the Moxa EDS-305-M-ST-T be used in harsh environments?

    Yes, the Moxa EDS-305-M-ST-T is designed for use in harsh industrial environments with its wide operating temperature range of -40 to 75°C, making it suitable for extreme conditions.

  • Is the Moxa EDS-305-M-ST-T a managed switch?

    No, the Moxa EDS-305-M-ST-T is an unmanaged Ethernet switch, meaning it does not have advanced management features such as VLAN setup, SNMP, or QoS.

  • What type of connectors does the Moxa EDS-305-M-ST-T have for the fiber port?

    The Moxa EDS-305-M-ST-T features ST connectors for the 100BaseFX multi-mode fiber port.
