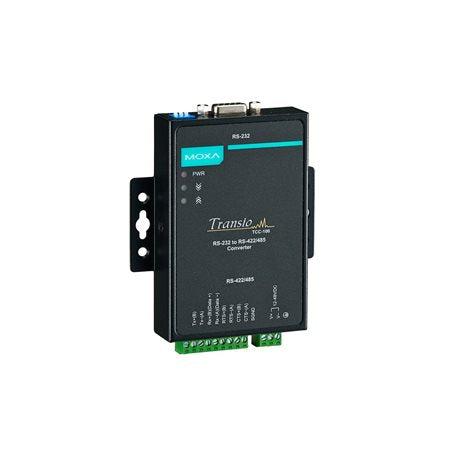

Moxa TCC-100-T | TCC-100 RS-232 to RS-422/485 Converter, -40 to 85°C, Non-Isolated

Authorised Moxa Partner

SKU:TCC-100-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa TCC-100-T is an industrial RS-232 to RS-422/485 serial converter built for wide-temperature environments from -40 to 85°C. It links RS-232 devices to RS-422 or 2-wire/4-wire RS-485 networks, and as the non-isolated TCC-100 variant it suits installations where galvanic isolation is not required.

The converter offers automatic data direction control for RS-485, baudrates from 50 bps to 921.6 kbps, and a plug-in terminal block for straightforward field wiring. It runs from a 12 to 48 VDC supply and can be mounted on a wall or DIN rail, making it a practical fit for factory automation, building management and remote monitoring panels.

Features

- RS-232 to RS-422 conversion with RTS/CTS support
- RS-232 to 2-wire or 4-wire RS-485 conversion
- Automatic data direction control for RS-485
- Wide operating temperature range of -40 to 85°C
- Wall mounting and DIN-rail mounting
- Plug-in terminal block for easy RS-422/485 wiring
- LED indicators for power, Tx and Rx

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Serial standards: RS-232, RS-422, RS-485 (2-wire and 4-wire)
- Baudrate: 50 bps to 921.6 kbps, supports non-standard baudrates
- RS-485 data direction control: ADDC (automatic data direction control)
- Pull high/low resistor for RS-485: 1 kilo-ohm, 150 kilo-ohms
- RS-485 terminator: 120 ohms
- Connector: terminal block
- RS-232 signals: TxD, RxD, RTS, CTS, GND
- RS-422 signals: Tx+, Tx-, Rx+, Rx-, RTS (optional), CTS (optional), GND
- Input voltage: 12 to 48 VDC
- Input current: 47 mA (max)
- Power inputs: 1
- Operating temperature: -40 to 85°C
- Isolation: none (non-isolated model)

FAQs

Q: What does the TCC-100-T convert?
A: It converts RS-232 signals to RS-422 or to 2-wire or 4-wire RS-485, allowing RS-232 devices to communicate over longer multi-drop serial networks.

Q: What is the operating temperature range of the TCC-100-T?
A: The -T model is the wide-temperature variant and operates from -40 to 85°C.

Q: Does the TCC-100-T provide electrical isolation?
A: No. The TCC-100-T is the non-isolated model. Optional 2 kV isolation is available on the TCC-100I models in the same series.

Q: What baudrates does it support?
A: It supports baudrates from 50 bps up to 921.6 kbps, including non-standard baudrates.

Q: What power supply does the TCC-100-T need?
A: It accepts a 12 to 48 VDC input with a maximum current draw of 47 mA.

Q: How can the TCC-100-T be mounted?
A: It supports both wall mounting and DIN-rail mounting, and uses a plug-in terminal block for RS-422/485 wiring.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
