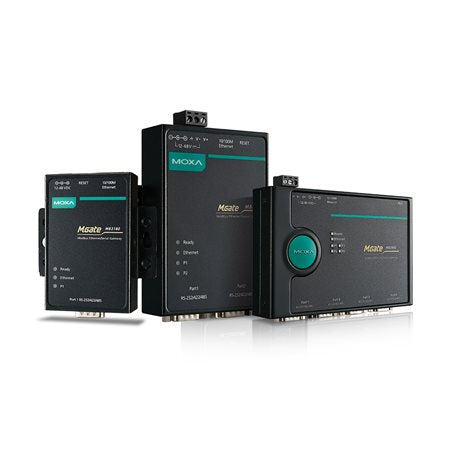

Moxa MGate MB3480 | 4-Port Modbus TCP Gateway, RS-232/422/485

Authorised Moxa Partner

SKU:MGate MB3480

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa MGate MB3480 is a 4-port Modbus TCP gateway that converts between Modbus TCP and Modbus RTU/ASCII, letting serial slave devices on four software-selectable RS-232/422/485 ports join an existing Ethernet Modbus network. It manages up to 124 serial slave nodes, with one 10/100BaseT(X) Ethernet port and support for both Modbus TCP Client (Master) and Server (Slave) operation.

Each serial port can be configured individually for Modbus RTU or ASCII and different baud rates up to 921.6 kbps. Auto Device Routing, routing by TCP port or IP address, and configuration through a web console, Device Search Utility, MGate Manager or Telnet simplify deployment. The metal IP30 housing runs from a 12 to 48 VDC supply and suits panel or cabinet installation.

Features

- Converts between Modbus TCP and Modbus RTU/ASCII protocols
- Four serial ports, each individually configurable for Modbus RTU or ASCII and different baud rates
- Auto Device Routing for simple configuration
- Route by TCP port or IP address for flexible deployment
- Up to 4 TCP clients/masters via TCP port or IP routing, or up to 16 via ID mapping
- Configuration via web console (HTTP/HTTPS), Device Search Utility, MGate Manager, MCC Tool or Telnet
- Security support including HTTPS (TLS 1.2), SNMPv3 and AES encryption
- Automatic data direction control (ADDC) for RS-485
- Optional DIN-rail kit (DK35A) and wall-mounting kit (WK-35-01) available separately

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 4 x RS-232/422/485 serial ports, software-selectable, DB9 male
- 1 x 10/100BaseT(X) Ethernet port, RJ45, auto MDI/MDI-X
- Modbus TCP Client (Master) and Server (Slave) to Modbus RTU/ASCII Master/Slave conversion
- Up to 124 serial slave nodes
- Baud rate: 50 bps to 921.6 kbps
- Max. client connections: 16, max. server connections: 32
- Ethernet magnetic isolation protection: 1.5 kV
- Input voltage: 12 to 48 VDC, 365 mA @ 12 VDC
- Power connector: power jack and terminal block
- Metal housing, IP30 rated
- Dimensions (without ears): 35.5 x 102.7 x 157.2 mm
- Weight: 740 g
- Operating temperature: 0 to 55°C
- MTBF: 1,213,993 hrs (Telcordia SR-332)

FAQs

Q: What does the Moxa MGate MB3480 do?
A: It is a Modbus TCP gateway that converts between Modbus TCP and Modbus RTU/ASCII, allowing serial Modbus devices to communicate over an Ethernet network.

Q: How many serial devices can the MGate MB3480 connect?
A: It has four serial ports and can manage up to 124 serial slave nodes.

Q: Which serial interfaces does the MGate MB3480 support?
A: All four DB9 male serial ports are software-selectable between RS-232, RS-422 and RS-485.

Q: Can the MGate MB3480 act as both Modbus master and slave?
A: Yes. On the Ethernet side it supports Modbus TCP Client (Master) and Server (Slave), and on the serial side it supports Modbus RTU/ASCII Master and Slave.

Q: What power supply does the MGate MB3480 require?
A: It runs from a 12 to 48 VDC input via a power jack or terminal block, drawing 365 mA at 12 VDC.

Q: How can the MGate MB3480 be mounted?
A: The metal IP30 housing can be installed on a DIN rail or wall using the optional DK35A DIN-rail kit or WK-35-01 wall-mounting kit, which are sold separately.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
