Moxa MGate MB3170I-M-SC | Modbus Gateway, Multi-Mode Fibre SC, 2 kV

Authorised Moxa Partner

SKU:MGate MB3170I-M-SC

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa MGate MB3170I-M-SC is a 1-port Modbus TCP gateway that connects serial Modbus RTU/ASCII devices to Ethernet networks over a 100BaseF(X) multi-mode fibre port with an SC connector. It provides 2 kV isolation and operates from 0 to 60°C, making it suited to electrically noisy plant floors and installations where fibre runs are preferred over copper.

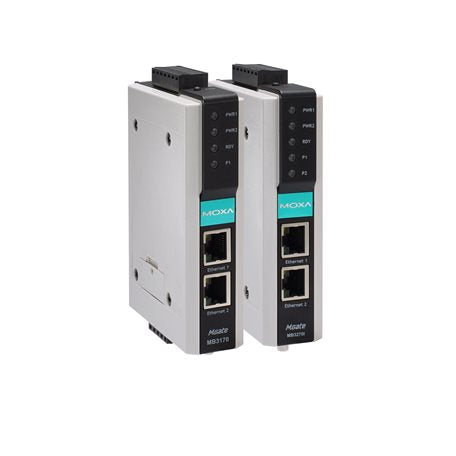

As part of the MGate MB3170/MB3270 range, this advanced Modbus gateway supports multi-master and multi-connection operation, allowing several Modbus TCP clients to communicate with serial slave devices. It mounts on a DIN rail or panel and accepts a 12 to 48 VDC power input via a 7-pin terminal block.

Features

- Converts between Modbus TCP and Modbus RTU/ASCII
- Advanced Modbus gateway with multi-master and multi-connection support
- 2 kV isolation protection for the serial side
- Multi-mode fibre Ethernet connectivity with SC connector

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 1 x serial port supporting Modbus RTU/ASCII
- 1 x 100BaseF(X) multi-mode fibre port, SC connector
- 2 kV isolation
- Operating temperature: 0 to 60°C
- Serial baudrate: 50 bps to 921.6 kbps
- Data bits: 7, 8
- Mounting: DIN-rail or panel
- Power input: 12 to 48 VDC via 7-pin terminal block
- MTBF: 1,385,414 hrs (Telcordia SR332)

FAQs

Q: What does the MGate MB3170I-M-SC connect?
A: It connects serial Modbus RTU/ASCII devices to a Modbus TCP network, converting between the two protocols through a single serial port.

Q: What type of Ethernet connection does this model use?
A: It uses a 100BaseF(X) multi-mode fibre port with an SC connector rather than a copper RJ45 port.

Q: What power supply does the MGate MB3170I-M-SC require?
A: It accepts a 12 to 48 VDC input through a 7-pin terminal block.

Q: What is the operating temperature range?
A: This standard-temperature model operates from 0 to 60°C.

Q: How is the gateway mounted?
A: It can be mounted on a DIN rail or fixed to a panel.

Q: Does it provide electrical isolation?
A: Yes, it provides 2 kV isolation protection, which helps protect equipment in electrically noisy environments.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
